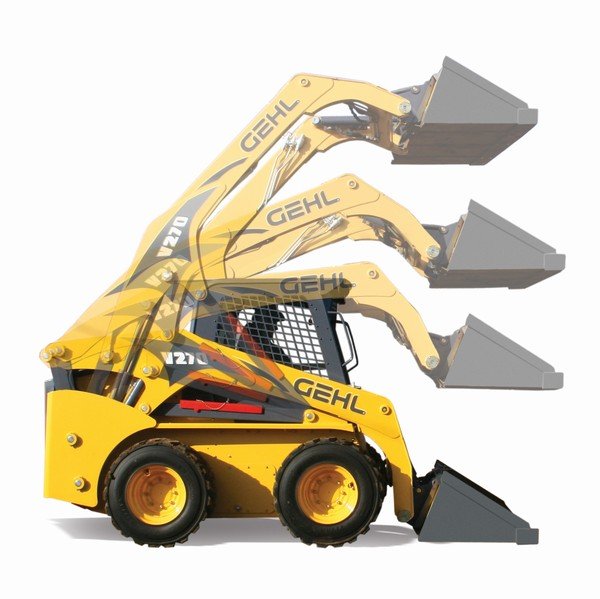

Gehl V270

Series: Gehl Skid Steer Loader

Source: https://commons.wikimedia.org/w/index.php?curid=22461098 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the V270, Gehl offers a model from the Gehl Skid Steer Loader series. The engine delivers 62.6 kW, with a displacement of 3,310.2 cm³. Torque is 291.5 Nm. Rated speed is 2,500 rpm. The wheelbase measures 1,268 mm. Ground clearance is 203.2 mm. Top speed is 19.2 km/h. The tank holds 83.3 litres. Maximum torque is reached at 1,650 rpm. The pump delivers 82.5 l/min. The hydraulic tank holds 41.6 litres. Working pressure is 231 bar. The engine fitted is the 4TNV98T-ZNMS. The Gehl Skid Steer Loader series covers 21 models. Rated output within it ranges from 17.9 to 85.8 kW; the V270 sits in the upper part of that range with 62.6 kW. Its immediate neighbours are the 6640E below it with 61.1 kW and the 7810E above it with 73.8 kW. 72 Gehl models across 9 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model4TNV98T-ZNMScorrect
Power62.6 kWcorrect
Rated speed2,500 rpmcorrect
Torque291.5correct
Speed at max. torque1,650 rpmcorrect
Displacement3,310.2 cm³correct

Dimensions and weights

Wheelbase1,268correct
Ground clearance203.2correct

Drivetrain and chassis

Top speed19.2 km/hcorrect

Working data

Pump flow82.5 l/mincorrect
Hydraulic oil capacity41.6 lcorrect
Hydraulic pressure231correct
Fuel tank capacity83.3 lcorrect

Other data

Height2,045.2correct

Frequently asked questions

How much power does the Gehl V270 have?

The Gehl V270 delivers 62.6 kW.

What engine does the Gehl V270 have?

3,310 cm³ displacement.

How fast does the Gehl V270 go?

Top speed is 19.2 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 14 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
