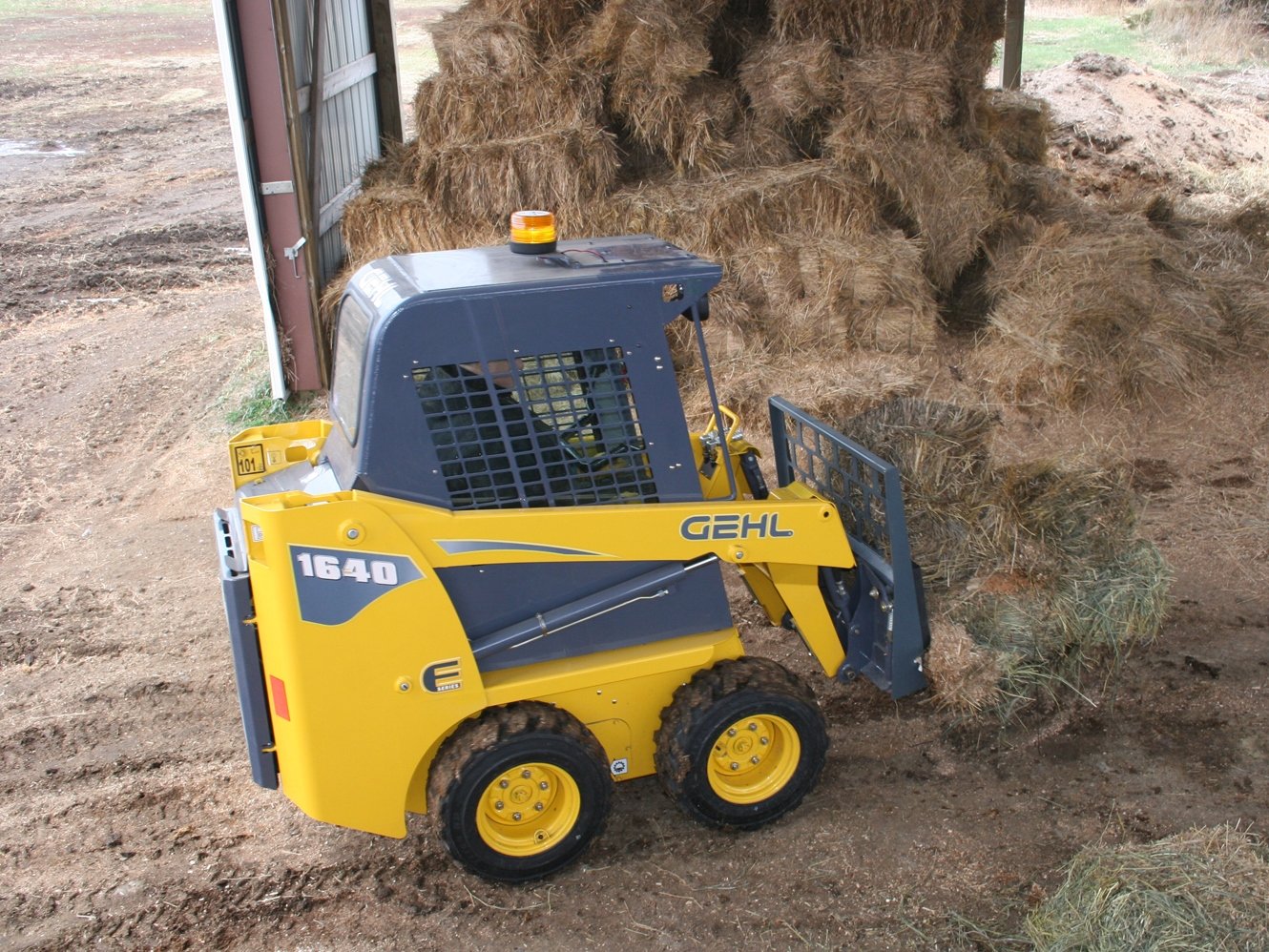

Gehl 1640E

Series: Gehl Skid Steer Loader

Source: https://www.heavyequipmentguide.ca/product/1272/1640e

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Gehl 1640E belongs to the Gehl Skid Steer Loader series. The engine delivers 17.9 kW, with a displacement of 1,327.4 cm³. Torque is 92.2 Nm. Rated speed is 2,400 rpm. The wheelbase measures 777.2 mm. Ground clearance is 150.1 mm. The tank holds 29.1 litres. Maximum torque is reached at 1,200 rpm. The pump delivers 38.2 l/min. The hydraulic tank holds 27.3 litres. Working pressure is 155.5 bar. The engine fitted is the 3TNV82BPMS. The Gehl Skid Steer Loader series covers 21 models. Rated output within it ranges from 17.9 to 85.8 kW; the 1640E sits at the bottom of that range with 17.9 kW. Its immediate neighbours are the 3640E above it with 26.1 kW. 72 Gehl models across 9 series are on record. The model is listed under Wheel loaders. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV82BPMScorrect
Power17.9 kWcorrect
Rated speed2,400 rpmcorrect
Torque92.2correct
Speed at max. torque1,200 rpmcorrect
Displacement1,327.4 cm³correct

Dimensions and weights

Wheelbase777.2correct
Ground clearance150.1correct

Working data

Pump flow38.2 l/mincorrect
Hydraulic oil capacity27.3 lcorrect
Hydraulic pressure155.5correct
Fuel tank capacity29.1 lcorrect

Other data

Height1,898.9correct

Frequently asked questions

How much power does the Gehl 1640E have?

The Gehl 1640E delivers 17.9 kW.

What engine does the Gehl 1640E have?

1,327 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
