Start › Skid steer loaders › Gehl › 3640E

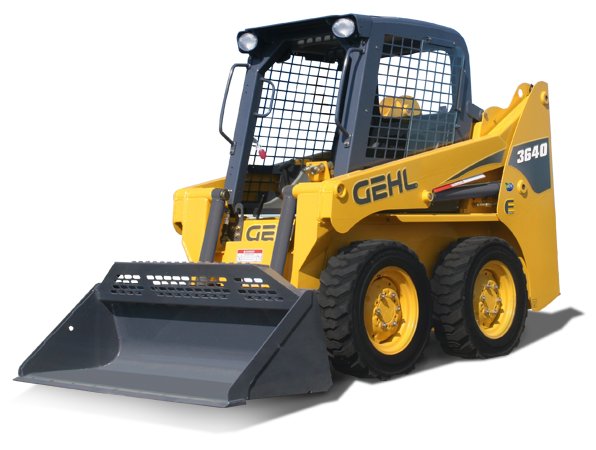

Gehl 3640E

Series: Gehl Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the 3640E, Gehl offers a model from the Gehl Skid Steer Loader series. The engine delivers 26.1 kW, with a displacement of 1,640.3 cm³. Rated speed is 2,600 rpm. The wheelbase measures 877.8 mm. Ground clearance is 152.1 mm. Top speed is 10.9 km/h. The tank holds 39 litres. The pump delivers 54.9 l/min. The hydraulic tank holds 30.7 litres. The electrical system runs on 12 V. The engine fitted is the 3TNV88. Tyre size: 27x8,5x15 HD. The Gehl Skid Steer Loader series covers 21 models. Rated output within it ranges from 17.9 to 85.8 kW; the 3640E sits at the bottom of that range with 26.1 kW. Its immediate neighbours are the 1640E below it with 17.9 kW and the 3635 above it with 26.8 kW. 72 Gehl models across 9 series are on record. The model is listed under Wheel loaders. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV88correct
Power26.1 kWcorrect
Rated speed2,600 rpmcorrect
Displacement1,640.3 cm³correct

Dimensions and weights

Wheelbase877.8correct
Ground clearance152.1correct

Drivetrain and chassis

Tyre size27x8.5x15 HDcorrect
Top speed10.9 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow54.9 l/mincorrect
Hydraulic oil capacity30.7 lcorrect
Fuel tank capacity39 lcorrect

Other data

Height1,786.1correct

Frequently asked questions

How much power does the Gehl 3640E have?

The Gehl 3640E delivers 26.1 kW.

What engine does the Gehl 3640E have?

1,640 cm³ displacement.

How fast does the Gehl 3640E go?

Top speed is 10.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
