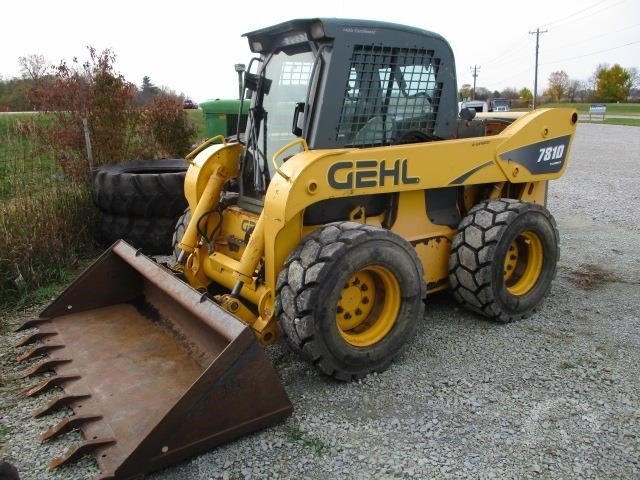

Gehl 7810

Series: Gehl Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Gehl 7810 is a model in the Gehl Skid Steer Loader series. The engine delivers 85.8 kW, with a displacement of 4,408.1 cm³. Rated speed is 2,400 rpm. The wheelbase measures 1,399 mm. Ground clearance is 231.1 mm. Top speed is 12.1 km/h. The tank holds 109 litres. The pump delivers 109.8 l/min. The hydraulic tank holds 57.2 litres. Working pressure is 227.5 bar. The engine fitted is the 1104C-E44T turbo. Tyre size: 14,00x17,5 HD. The Gehl Skid Steer Loader series covers 21 models. Rated output within it ranges from 17.9 to 85.8 kW; the 7810 sits at the top of that range with 85.8 kW. Its immediate neighbours are the 7810E below it with 73.8 kW. 72 Gehl models across 9 series are on record. The model is listed under Wheel loaders. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine model1104C-E44T turbocorrect
Power85.8 kWcorrect
Rated speed2,400 rpmcorrect
Displacement4,408.1 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase1,399correct
Ground clearance231.1correct

Drivetrain and chassis

Tyre size14.00x17.5 HDcorrect
Top speed12.1 km/hcorrect

Working data

Pump flow109.8 l/mincorrect
Hydraulic oil capacity57.2 lcorrect
Hydraulic pressure227.5correct
Fuel tank capacity109 lcorrect

Other data

Height2,057.4correct

Frequently asked questions

How much power does the Gehl 7810 have?

The Gehl 7810 delivers 85.8 kW.

What engine does the Gehl 7810 have?

4,408 cm³ displacement.

How fast does the Gehl 7810 go?

Top speed is 12.1 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
