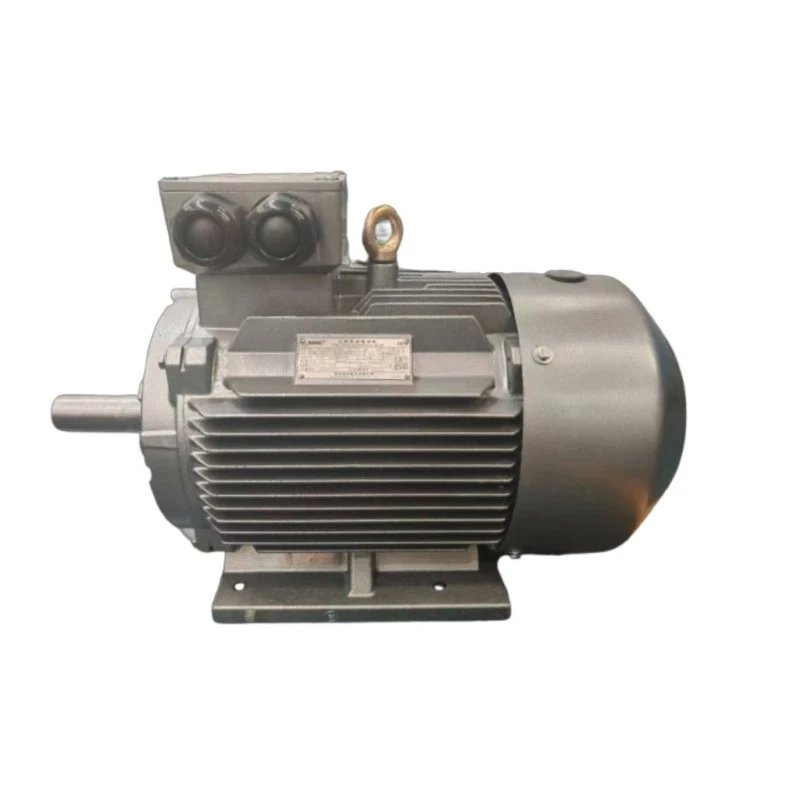

Fuan Huachuang MSE160M-4
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fuan Huachuang – other models: the collective page of MEPS-registered three-phase motors from the Chinese works in Fujian outside the named ranges, frame sizes 112 to 160, 4 to 11 kW, four-pole, IP55
Fuan Huachuang is a motor works in China's Fujian province. This page gathers the three-phase motors from the maker that the Australian energy-efficiency register (GEMS/MEPS) does not assign to a named range. The four versions carry the designations MSE112M-4, MSE132S-4, MSE132M-4 and MSE160M-4, with the frame size given as a number and the pole count as the trailing digit of the designation.
Read on 3 more paragraphs
The register lists here four versions with 4 to 11 kW rated output, all four-pole and rated for 415 V. Full-load efficiency ranges from 85.44 to 89%, and at 75% load from 86.17 to 90.3%. Frame sizes range from 112 to 160, the protection class is IP55 throughout, and the mounting code is B3 throughout. Testing followed the Greenhouse and Energy Minimum Standards Determination 2019 with test method 2-1-1B.
With IP55 protection, the motors are shielded against dust and water jets and so also suit outdoor use or dusty industrial halls, for instance on conveyors, pumps or fans. The 4 to 11 kW power band covers the middle of the classic three-phase standard motor range.
On a used purchase, bearing condition, a tested winding insulation resistance, the seals at the terminal box and shaft lead-through, and a legible nameplate with frame size, pole count and protection class all count. Anyone wanting variable-speed operation should check inverter compatibility beforehand. Spare parts are available through general electric-motor suppliers.
Sources: SpecCodex register, model data: Fuan Huachuang (weitere Elektromotoren, MEPS-Registrierung)
Technical data
Engine
| Rated output | 11 kWcorrect |
|---|
Electrical data
| Rated voltage | 415 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 160 M (foot)correct |
| Mounting (IEC 60034-7) | B3correct |
| Efficiency at full load | 89 %correct |
| Efficiency at 75 % load | 90.3 %correct |
| Efficiency at half load | 90.37 %correct |
Origin and approval
| Country of manufacture | Chinacorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Fuan Huachuang MSE160M-4 have?
The Fuan Huachuang MSE160M-4 delivers 11 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
