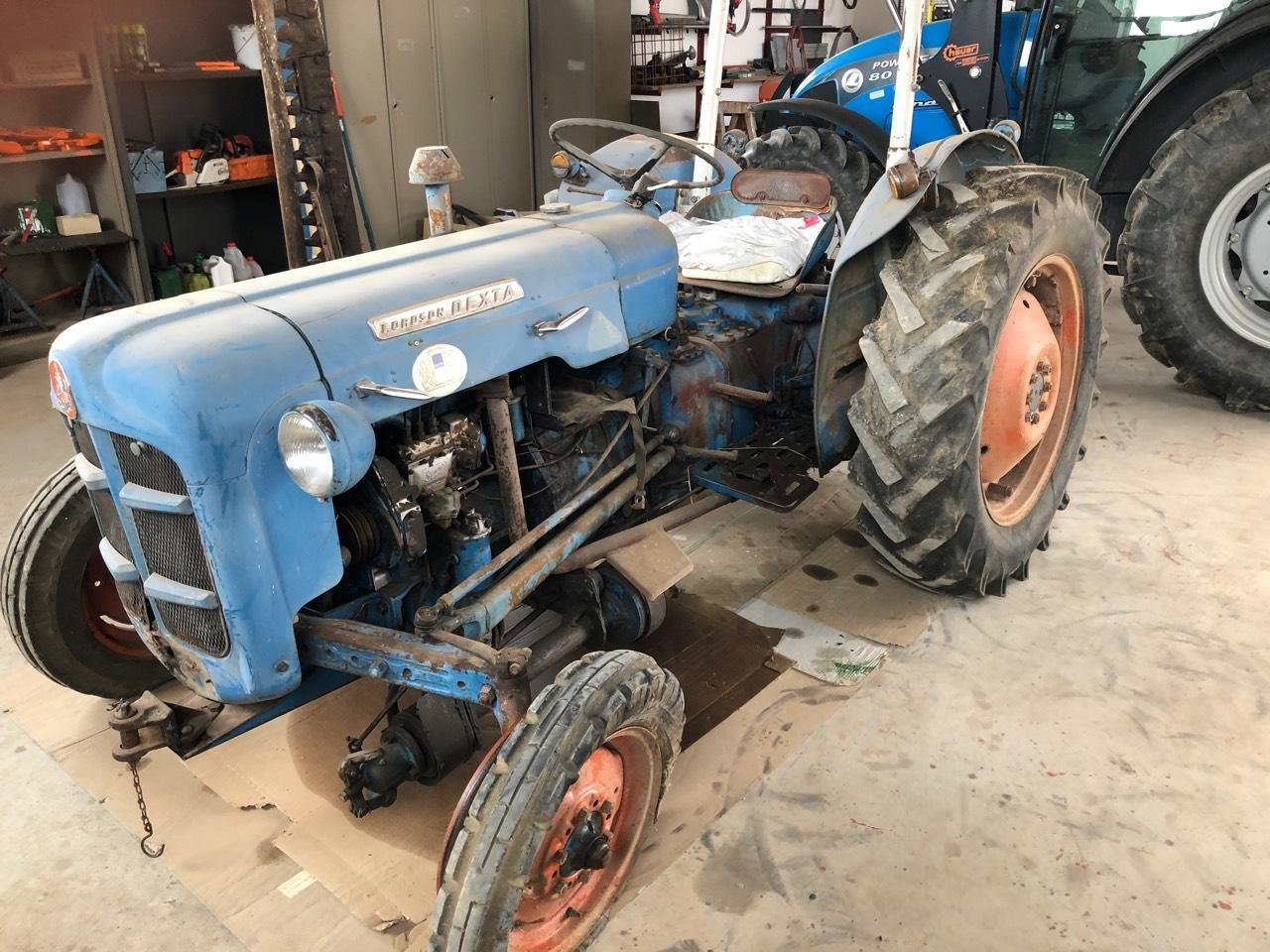

Fordson Super Dexta (960 E)

Built: 1962–1964 · Series: DEXTA

More machines from model year 1962

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Super Dexta (960 E), Fordson offers a model from the DEXTA series. Production: 1962–1964. The engine delivers 36 hp (26.5 kW), has 3 cylinders, with a displacement of 2,502 cm³. Rated speed is 1,800 rpm. The machine is 3,010 mm long, 1,670 mm wide and 1,370 mm high. The unladen weight is 1,485 kg. The wheelbase measures 1,876 mm. Ground clearance is 530 mm. Top speed is 20 km/h. Transmission: 6 V/2 R. The engine is water-cooled. Tyres: front 5.50-16 ASF, rear 11-28 AS. The fuel is Diesel/Benzin. The bore measures 91.44 mm. The stroke is 127 mm. Construction: unit construction (no separate frame). The DEXTA series covers 10 models. Rated output within it ranges from 31 to 36 hp; the Super Dexta (960 E) sits at the top of that range with 36 hp. Its immediate neighbours are the Dexta (957 E) below it with 32 hp. Unladen weight within it ranges from 1,470 to 1,485 kg; here the Super Dexta (960 E) sits at the top of that range with 1,485 kg. 82 Fordson models across 9 series are on record.

Fordson Dexta – Compact British Tractor, 1957 to 1964: three-cylinder Perkins diesel with 22.8 to 29.4 kW, 2,350 to 2,502 cm³ displacement, water-cooled

From 1957, the Dexta complemented the larger Fordson Major with a more compact tractor for smaller farms; the register lists models up to 1964. Output of the recorded models ranges from 22.8 to 29.4 kW, at a displacement of 2,350 to 2,502 cm³, predominantly with three-cylinder engines.

Read on 3 more paragraphs

Recorded operating weight runs from 1,376 to 1,485 kg, wheelbase from 1,867 to 1,876 mm, and top speed of the listed models spans 20 to 23 km/h. The Dexta used a diesel engine developed by Perkins, setting it apart technically from the petrol-engine heritage of earlier Fordson models.

The Dexta was one of the first affordable diesel tractors for smaller farms in Britain, shaping an entire class of compact post-war tractors. For historic examples, check the engine condition and hydraulic system, as parts for some components are now rare.

Perkins, now part of the US Caterpillar group, still runs its own parts and service network for its historic as well as current diesel engines; wear parts for the Dexta engine can therefore often be sourced independently of specialists dealing solely in Fordson. The Dexta's PTO and lift matched the standard typical for its power class, with a 540 rpm speed and a category I three-point hitch under ISO 730. Other British tractor makers of the period also relied on Perkins engines, which eases the search for parts across the industry.

Sources: SpecCodex register, model data: Fordson DEXTA

Technical data

Engine

FuelDiesel/Benzincorrect
Power36 hp (26.5 kW)correct
Rated speed1,800 rpmcorrect
Cylinders3correct
Displacement2,502 cm³correct
Bore91.44 mmcorrect
Stroke127 mmcorrect
Coolingwater-cooledcorrect

Dimensions and weights

Length3,010 mmcorrect
Width1,670 mmcorrect
Height1,370 mmcorrect
Wheelbase1,876 mmcorrect
Ground clearance530 mmcorrect
Unladen weight1,485 kgcorrect

Drivetrain and chassis

Driverear-wheel drivecorrect
Gearbox6 V/2 Rcorrect
Front tyres5.50-16 ASFcorrect
Rear tyres11-28 AScorrect
Top speed20 km/hcorrect

Origin and approval

Constructionunit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.8 kW/t (26 kW / 1.5 t)

Power class: Compact (< 40 hp)

Stronger than 22% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fordson Super Dexta (960 E) have?

The Fordson Super Dexta (960 E) delivers 36 hp.

How much does the Fordson Super Dexta (960 E) weigh?

The unladen weight is 1,485 kg.

What engine does the Fordson Super Dexta (960 E) have?

3 cylinders, 2,502 cm³ displacement, Diesel/Benzin.

How fast does the Fordson Super Dexta (960 E) go?

Top speed is 20 km/h.

What are the dimensions of the Fordson Super Dexta (960 E)?

3,010 mm × 1,670 mm × 1,370 mm.

When was the Fordson Super Dexta (960 E) built?

Production years: 1962–1964.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
