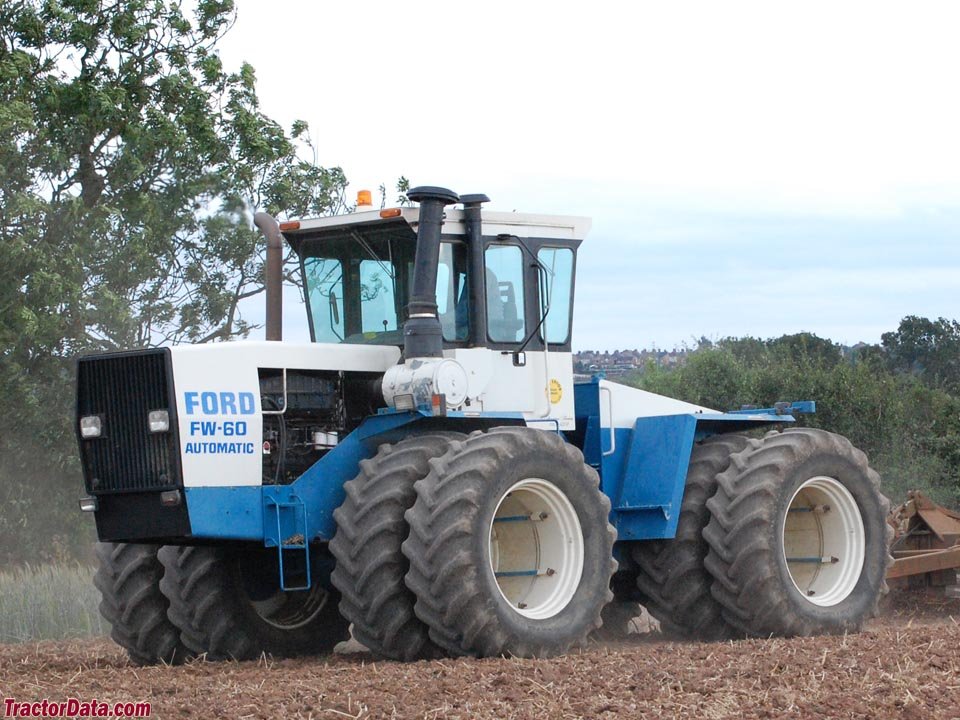

Ford/steiger FW-60
Built: 1977–1982 · Series: FW-Baureihe
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/Steiger FW series: articulated 4WD tractors built by Steiger in Fargo for Ford, FW-40 and FW-60 with 220 to 250 kW from the eight-cylinder engine, around 13.9 t operating weight, 1970s/80s
The FW series grew out of the partnership between Ford and the American specialist Steiger Tractor of Fargo, North Dakota, which from the mid-1970s built large articulated four-wheel-drive tractors of its own design and sold them in parallel under the Ford name. The letters FW stand for four-wheel drive, and the type number that follows ranks the models by power class, with the FW-40 the smaller and the FW-60 the larger of the two versions listed here. Steiger remained the manufacturer of these tractors until the mid-1980s, when Ford handed articulated-tractor production to the Canadian builder Versatile of Winnipeg, which Ford acquired in 1987.
Read on 3 more paragraphs
The register lists 2 versions here with 220 to 250 kW from eight-cylinder engines of 14,801 cm³, an operating weight of around 13,894 kg, a length of 6,782 mm and a height of 3,411 mm at a rated speed of 2,600 rpm.
As articulated tractors rated at roughly 300 to 340 hp, the FW series ranked among the most powerful field tractors Ford offered on the North American market in the 1970s and 1980s, competing there with Steiger's own models as well as with Case-IH Steiger and Versatile tractors for large farms across the American Midwest and Canada.
When buying used, what matters most on these articulated tractors is the condition of the articulation joint with its bearings and hydraulic cylinders, the tightness of the drivetrain on both axles, the condition of the eight-cylinder diesel engine and its turbocharger, and the cab and electrics; drivetrain parts are still available through the Steiger/Case-IH network, while Ford-specific body parts are now only found used.
Sources: SpecCodex register, model data: Ford/Steiger FW-Baureihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 340 hp (250 kW)correct |
| Rated speed | 2,600 rpmcorrect |
| Torque | 1,051 Nmcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 8correct |
| Displacement | 14,801 cm³correct |
| Bore | 139.7 mmcorrect |
| Stroke | 120.7 mmcorrect |
| Compression ratio | 15.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 6,782 mmcorrect |
|---|---|
| Height | 3,411 mmcorrect |
| Wheelbase | 3,365 mmcorrect |
| Ground clearance | 305 mmcorrect |
| Unladen weight | 13,894 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 10 V/2 R or 20 V/4 Rcorrect |
| Front tyres | 24.5-32 AScorrect |
| Rear tyres | 24.5-32 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | articulated framecorrect |
|---|
Where this model stands
Power-to-weight ratio: 18 kW/t (250 kW / 13.9 t)
Power class: Heavy (> 180 hp)
Stronger than 98% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/steiger FW-60 have?
The Ford/steiger FW-60 delivers 340 hp.
How much does the Ford/steiger FW-60 weigh?
The unladen weight is 13,894 kg.
What engine does the Ford/steiger FW-60 have?
8 cylinders, 14,801 cm³ displacement, Diesel.
How fast does the Ford/steiger FW-60 go?
Top speed is 30 km/h.
What are the dimensions of the Ford/steiger FW-60?
6,782 mm × 3,411 mm.
When was the Ford/steiger FW-60 built?
Production years: 1977–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
