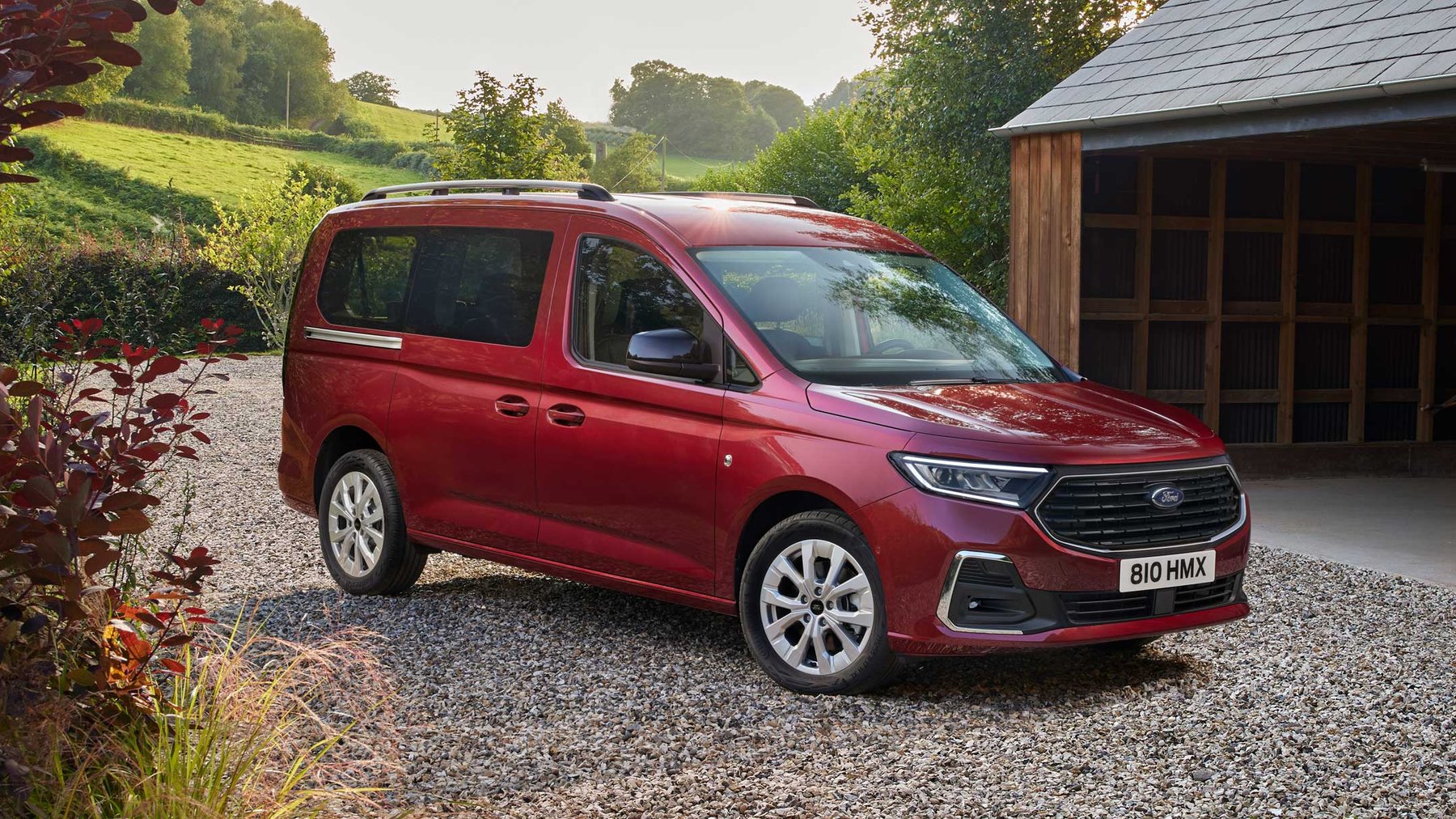

Ford Tourneo Connect
Built: 2003-2026 · Series: Tourneo
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford Tourneo: the people-carrier family comprising Tourneo Courier, Connect and Custom, three- and four-cylinder engines from 66 to 114 kW, displacement from 1.0 to 2.5 litres, gross weights up to 3.4 tonnes
Tourneo is Ford's people-carrier family, offered as the passenger version alongside the Transit Courier, Transit Connect and Transit Custom commercial vehicles; the register lists here models of all three sizes, from the Tourneo Courier through the Tourneo Connect to the Tourneo Custom. The range thus spans from a compact derivative to a large van seating up to nine.
Read on 3 more paragraphs
The register lists here 7 versions with three- and four-cylinder engines of 66 to 114 kW and 999 to 2,488 cc, kerb weights from 1,236 to 2,742 kg, gross weights from 2,115 to 3,400 kg, lengths from 4,280 to 5,450 mm and widths from 1,810 to 2,030 mm.
As a people carrier the range competes with the VW Caravelle and Multivan and the Mercedes-Benz V-Class, serving families, shuttle operators and local passenger transport; the small Tourneo Courier instead competes more with compact vans such as the VW Caddy. Sharing its floorpan with the commercial equivalents keeps development costs down and keeps parts widely available even for the passenger versions.
When buying used, check the diesel versions' turbocharger, exhaust-gas recirculation and diesel particulate filter, the condition and clutch wear of the dual-clutch gearbox on the Tourneo Custom, and the runners and mechanism of the sliding doors given frequent passenger boarding and alighting; parts run through Ford's wide service network, well stocked even away from major cities.
Sources: SpecCodex register, model data: Ford Tourneo, Ford (manufacturer)
Technical data
Engine
| Power | 74.2 kWcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 1,753 cm³correct |
Dimensions and weights
| Length | 4,850 mmcorrect |
|---|---|
| Width | 1,860 mmcorrect |
| Wheelbase | 3,060 mmcorrect |
| Unladen weight | 1,675 kgcorrect |
| Gross vehicle weight | 2,405 kgcorrect |
Drivetrain and chassis
| Gears | 5correct |
|---|---|
| Wheels | 4correct |
| Top speed | 181 km/hcorrect |
Where this model stands
Power-to-weight ratio: 44.3 kW/t (74 kW / 1.7 t)
Stronger than 34% of the vans in the register — out of 7,144 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford Tourneo Connect have?
The Ford Tourneo Connect delivers 74.2 kW.
How much does the Ford Tourneo Connect weigh?
The unladen weight is 1,675 kg.
What is the gross vehicle weight of the Ford Tourneo Connect?
2,405 kg.
What engine does the Ford Tourneo Connect have?
4 cylinders, 1,753 cm³ displacement.
What are the dimensions of the Ford Tourneo Connect?
4,850 mm × 1,860 mm.
When was the Ford Tourneo Connect built?
Production years: 2003-2026.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
