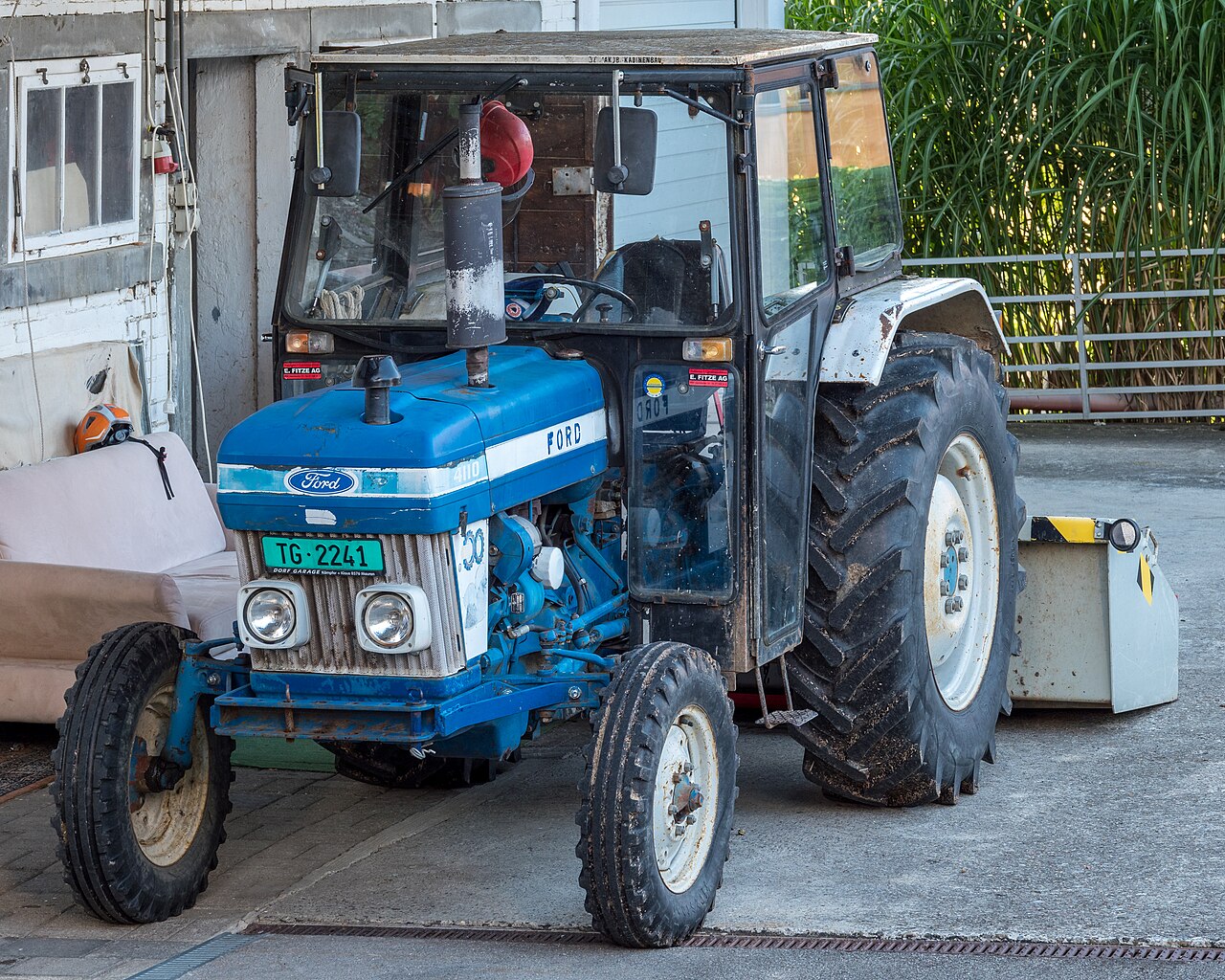

Ford 4110
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Ford 4110 belongs to the tractor group and was produced by Ford. It is equipped with a 3‑cylinder engine of 3,292 cc, operating at a rated speed of 2,200 rpm. The power output is 54 hp (39.7 kW) and the maximum torque is 189 Nm. The machine measures 1,740 mm in width, 2,330 mm in height, features an 8 V/4 R gearbox and reaches a top speed of 30 km/h. Fuel tank capacity is 49.2 l and the lift category is Cat II.
A power of 54 hp enables pulling medium‑size implements, while the 189 Nm torque provides stable force transmission at low engine speeds. The 8‑forward/4‑reverse gear set supplies sufficient ratios for field work and transport, and the 30 km/h top speed allows rapid movement between work sites. The 49.2 l tank supports long operating periods without frequent refuelling, and the dimensions of 1,740 mm width and 2,330 mm height fit typical farm and field conditions.
Tractors of this size and specification are commonly used for crops such as corn, wheat and sugar beet, handling both towing tasks and powering implements like seeders and sprayers. The Cat II lift category permits handling of medium loads, making the 4110 suitable for a range of agricultural operations.
Ford – other models: the collective page of tractors outside the named ranges, from the Thousand series through the 10 series to the articulated tractors with Cummins and Caterpillar engines, 10 to 300 kW
This page gathers the Ford tractors the register could not assign to a named range – from small utility tractors of the North American and British plants to the heavy articulated tractors of the Versatile brand, taken over by Ford in the late 1980s. Ford had built farm tractors since 1917, first in Dearborn, from the 1930s also in Dagenham, England; the post-war 600 to 900 models led in 1965 into the Thousand series (2000, 3000, 4000, 5000), replaced in 1975 by the generation with a leading 0. From 1981 came the 10 series (2110 to 8210), in which the first two digits give the size and the last the generation; SU marks the narrow-track Utility version. The big articulated tractors, formerly built under the Versatile name in Winnipeg, ran from 1987 as the Ford FW with Cummins and Caterpillar engines; after the merger with New Holland in 1991 the independent Ford range ended.
Read on 3 more paragraphs
The register lists here 237 versions with 9.7 to 300 kW from two- to eight-cylinders of 1,390 to 14,801 cm³, PTO outputs up to 163 hp, unladen weights from 1,061 to 14,200 kg, gross weights from 2,280 to 11,400 kg, lengths from 2,410 to 7,600 mm and widths from 1,070 to 2,845 mm; the engines are mostly Ford's own, Cummins and Caterpillar in the big articulated tractors.
For decades Ford was, alongside International Harvester, Massey Ferguson and John Deere, one of the best-selling tractor brands of North America and Europe, focused on utility tractors for family farms; the FW-range articulated tractors competed in the top power segment with Steiger and Case IH.
On used tractors, engine condition, clutch and gearbox synchros count on the older ranges, hydraulics and electrics on the 10 series, and on the articulated tractors operating hours, condition of the four-wheel drive and tyres, and parts supply for the Cummins or Caterpillar engines, which today runs outside the Ford network.
Sources: SpecCodex register, model data: Ford (weitere Modelle), New Holland (Rechtsnachfolger von Ford New Holland)
Technical data
Engine
| Power | 54 hp (39.7 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 189 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 3,292 cm³correct |
Dimensions and weights
| Width | 1,740 mmcorrect |
|---|---|
| Height | 2,330 mmcorrect |
Drivetrain and chassis
| Gearbox | 8 V/4 Rcorrect |
|---|---|
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 49.2 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|
Frequently asked questions
How much power does the Ford 4110 have?
The Ford 4110 delivers 54 hp.
What engine does the Ford 4110 have?
3 cylinders, 3,292 cm³ displacement.
How fast does the Ford 4110 go?
Top speed is 30 km/h.
What are the dimensions of the Ford 4110?
1,740 mm × 2,330 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 12 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
