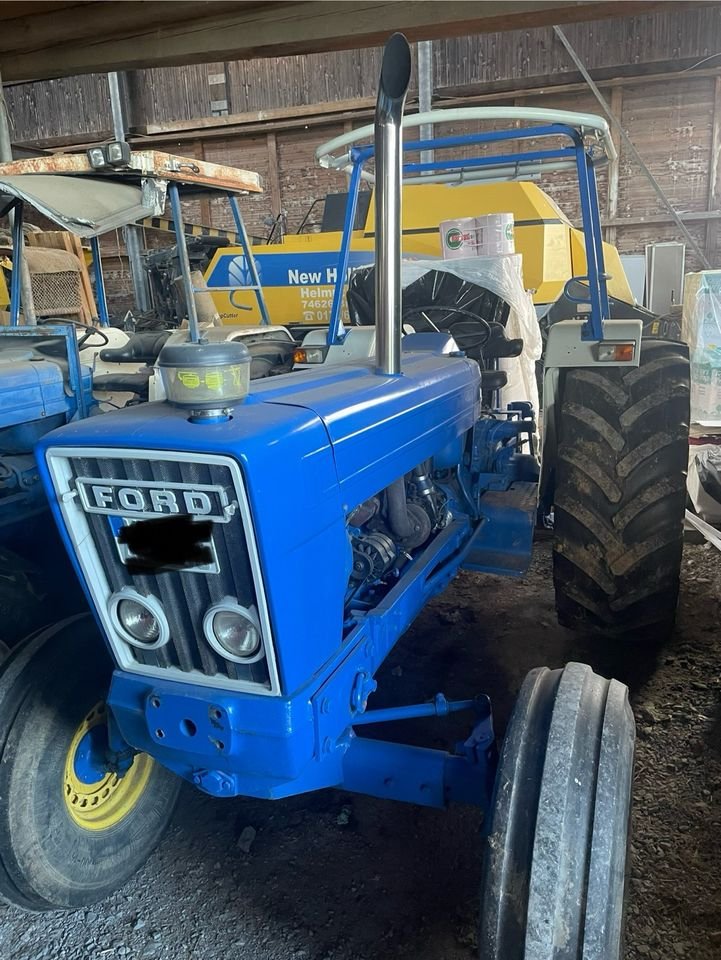

Ford/eva 7095 (A)
Built: 1976–1981 · Series: Serie 700
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/eva 7095 (A): water-cooled six-cylinder diesel tractor from the 700 series, 6,220 cc, 77 kW and 3,800 kg weight, built 1976 to 1981
A six-cylinder diesel tractor of over 6 litres displacement belonged, in the 1970s, to the large field tractors built for work on extensive arable land and for heavy drawbar tasks such as pulling large trailers and heavy cultivating equipment across long working days. The 7095 (A) from the 700 series was built from 1976 to 1981.
Read on 3 more paragraphs
The 7095 (A) is powered by a water-cooled six-cylinder diesel engine of 6,220 cc, producing 105 hp, or 77 kW, and 372 Nm of torque at 2,100 rpm. At a weight of 3,800 kg, a length of 4,500 mm, a height of 2,600 mm and a width of 2,000 mm, with a wheelbase of 2,550 mm, the machine reaches a top speed of 25 km/h.
An engine of this size delivers the high torque at comparatively low engine speed needed for primary tillage with wide ploughs and cultivators and for working with heavy trailers. A tractor of this weight class is not built for light mounted implements or for fast road travel; the design top speed of 25 km/h places the machine in driving-licence category T.
When buying such a heavy six-cylinder tractor secondhand, the condition of the diesel engine's injection pump and injectors, and the cooling system given the large engine displacement, matter most. Also worth checking are the clutch and gearbox for wear caused by the high torque transmitted, the brakes, and the axles and tyres given the machine's high weight, since a worn axle bearing on a machine this heavy is costly to replace.
Sources: SpecCodex-Register: Kennwerte des Modells Ford/eva 7095 (A)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 105 hp (77 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 372 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,220 cm³correct |
| Bore | 107 mmcorrect |
| Stroke | 115 mmcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,500 mmcorrect |
|---|---|
| Width | 2,000 mmcorrect |
| Height | 2,600 mmcorrect |
| Wheelbase | 2,550 mmcorrect |
| Ground clearance | 540 mmcorrect |
| Unladen weight | 3,800 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V / 2Rcorrect |
| Front tyres | 7.50-20 ( A: 10-24 )correct |
| Rear tyres | 14-34correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.3 kW/t (77 kW / 3.8 t)
Power class: Large (100–180 hp)
Stronger than 69% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/eva 7095 (A) have?
The Ford/eva 7095 (A) delivers 105 hp.
How much does the Ford/eva 7095 (A) weigh?
The unladen weight is 3,800 kg.
What engine does the Ford/eva 7095 (A) have?
6 cylinders, 6,220 cm³ displacement, Diesel.
How fast does the Ford/eva 7095 (A) go?
Top speed is 25 km/h.
What are the dimensions of the Ford/eva 7095 (A)?
4,500 mm × 2,000 mm × 2,600 mm.
When was the Ford/eva 7095 (A) built?
Production years: 1976–1981.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: [1]
