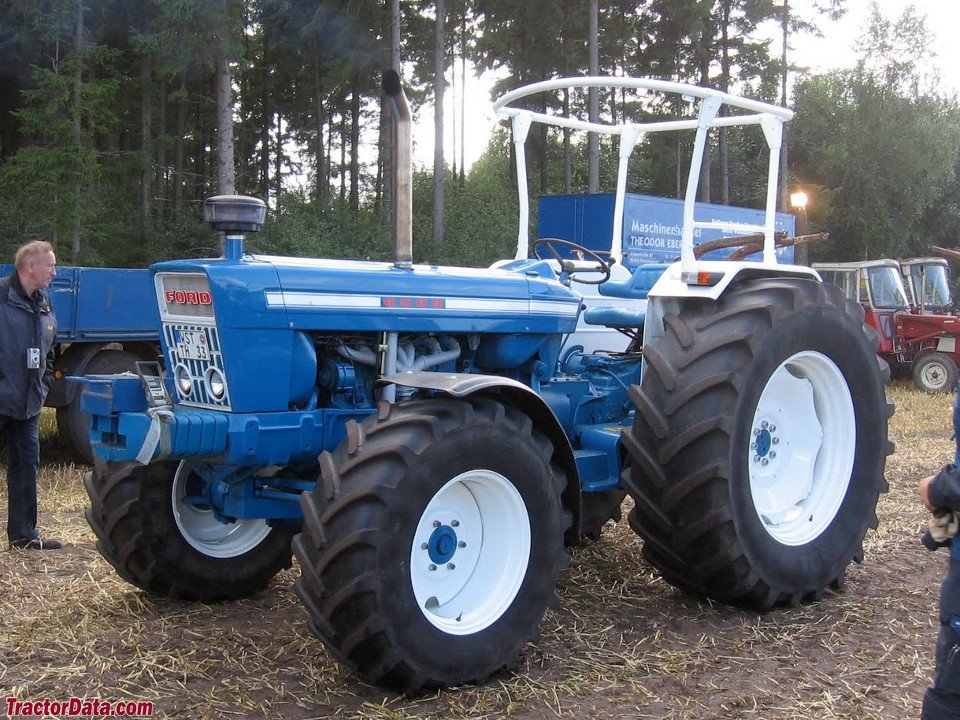

Ford/eva 6.500 (A)
Built: 1968–1974 · Series: 1000 er-Baureihe (6Y)
More machines from model year 1968
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Ford/EVA 1000-series (6Y) – the 5095 and 6.500 (A): six-cylinder diesel of 5,409 to 5,948 cm³, around 69.9 kW, unladen weight 3,000 to 3,550 kg
Ford built its European farm tractors of this generation at plants in Basildon, England, and Antwerp, Belgium. The 5095 and 6.500 types of this range carry six-cylinder engines and thus sit at the upper end of Ford's model range of the time; the A suffix on the 6.500 marks a particular finish variant. Both types ranked among the more powerful farm tractors on the European continent during the 1970s.
Read on 3 more paragraphs
The register lists here 2 versions with around 69.9 kW from six-cylinder engines of 5,409 to 5,948 cm³ displacement and 303 to 324 Nm of torque, with unladen weights from 3,000 to 3,550 kg, lengths from 3,900 to 4,520 mm, widths from 1,950 to 2,030 mm and a height of 2,400 mm.
It is notable that both types are rated at the same nominal output despite their different displacement. The range occupied a fixed power band at the top of Ford's line-up for large arable farms, competing there with comparable models from Massey Ferguson and International Harvester.
When buying used, check operating hours and condition of the six-cylinder engine, the condition of the clutch and gearbox under heavy load, rust on the frame and body panels, and the tightness of the hydraulics. Equally important is the condition of the tyres, brakes and lighting system. Spares for this Ford range come through dealers specialising in classic tractors.
Sources: SpecCodex register, model data: Ford/eva 1000 er-Baureihe (6Y)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 95 hp (69.9 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 303 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,409 cm³correct |
| Compression ratio | 16.5correct |
| Injection pressure | 192 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,520 mmcorrect |
|---|---|
| Width | 2,030 mmcorrect |
| Height | 2,400 mmcorrect |
| Wheelbase | 2,550 mmcorrect |
| Ground clearance | 540 mmcorrect |
| Unladen weight | 3,550 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 8 V/2 Rcorrect |
| Front tyres | 7.50-20 ASF (A: 10-24 AS)correct |
| Rear tyres | 14-34 AScorrect |
| Top speed | 27 km/hcorrect |
Origin and approval
| Construction | unit construction with subframecorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.7 kW/t (70 kW / 3.5 t)
Power class: Universal (40–100 hp)
Stronger than 63% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Ford/eva 6.500 (A) have?
The Ford/eva 6.500 (A) delivers 95 hp.
How much does the Ford/eva 6.500 (A) weigh?
The unladen weight is 3,550 kg.
What engine does the Ford/eva 6.500 (A) have?
6 cylinders, 5,409 cm³ displacement, Diesel.
How fast does the Ford/eva 6.500 (A) go?
Top speed is 27 km/h.
What are the dimensions of the Ford/eva 6.500 (A)?
4,520 mm × 2,030 mm × 2,400 mm.
When was the Ford/eva 6.500 (A) built?
Production years: 1968–1974.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
