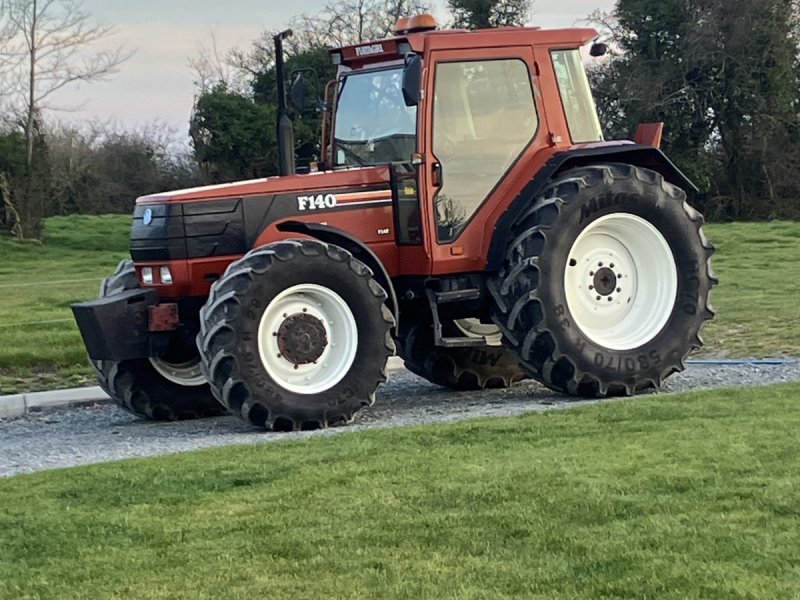

Fiatagri F-140 DT
Built: 1993–1996 · Series: Winner-Baureihe
More machines from model year 1993
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiatagri Winner series – large tractors from Modena: F-100 DT to F-140 DT, six-cylinder diesels with four-wheel drive (DT), 72–103 kW, 4,400–5,615 kg
The Winner series was Fiatagri's large-tractor programme, the farm-machinery arm of the Italian Fiat group headquartered in Modena, through the 1980s and early 1990s. The type designation combines F for Fiat, a number for the power class, and the DT suffix for 'Doppia Trazione' (four-wheel drive) – an abbreviation that, across Italian tractor makers such as Fiat, Same and Lamborghini, consistently denotes the four-wheel-drive version. From the F-100 DT to the F-140 DT, the Winner line covered the large-tractor class with six-cylinder engines throughout.
Read on 3 more paragraphs
The register lists 6 versions rated at 72.1 to 103 kW (110 to 140 hp) from six-cylinder diesel engines of 5,419 to 5,861 cm³, torque of 327 to 510 Nm at 2,250 to 2,300 rpm, kerb weights of 4,400 to 5,615 kg, and a length of 4,710 to 4,760 mm, a width of 2,110 to 2,400 mm and a height of 2,780 to 2,830 mm.
The Winner tractors were Fiatagri's answer to the large tractors from Ford, Massey Ferguson and Deutz, and sold chiefly in southern and eastern Europe; after the 1991 merger of Fiat and Ford New Holland, the line was absorbed into the new New Holland product range.
On these large tractors, check engine and injection condition, the clutch and power-shift transmission, the four-wheel drive with its transfer case and driveshafts, and the hydraulic pump and lift; also check for corrosion on the cab and frame. Spares today run through New Holland's CNH network, which also covers the Fiatagri heritage.
Sources: SpecCodex register, model data: Fiatagri Winner
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 140 hp (103 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Torque | 510 Nmcorrect |
| Speed at max. torque | 1,203 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 5,861 cm³correct |
| Bore | 104 mmcorrect |
| Stroke | 115 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 264 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,760 mmcorrect |
|---|---|
| Width | 2,400 mmcorrect |
| Height | 2,830 mmcorrect |
| Wheelbase | 2,710 mmcorrect |
| Unladen weight | 5,615 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24V/12Rcorrect |
| Front tyres | 480/70 R 28 AScorrect |
| Rear tyres | 580/70 R 38 AScorrect |
| Top speed | 30 km/hcorrect |
Working data
| Fuel tank capacity | 220 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.3 kW/t (103 kW / 5.6 t)
Power class: Large (100–180 hp)
Stronger than 81% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiatagri F-140 DT have?
The Fiatagri F-140 DT delivers 140 hp.
How much does the Fiatagri F-140 DT weigh?
The unladen weight is 5,615 kg.
What engine does the Fiatagri F-140 DT have?
6 cylinders, 5,861 cm³ displacement, Diesel.
How fast does the Fiatagri F-140 DT go?
Top speed is 30 km/h.
What are the dimensions of the Fiatagri F-140 DT?
4,760 mm × 2,400 mm × 2,830 mm.
When was the Fiatagri F-140 DT built?
Production years: 1993–1996.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
