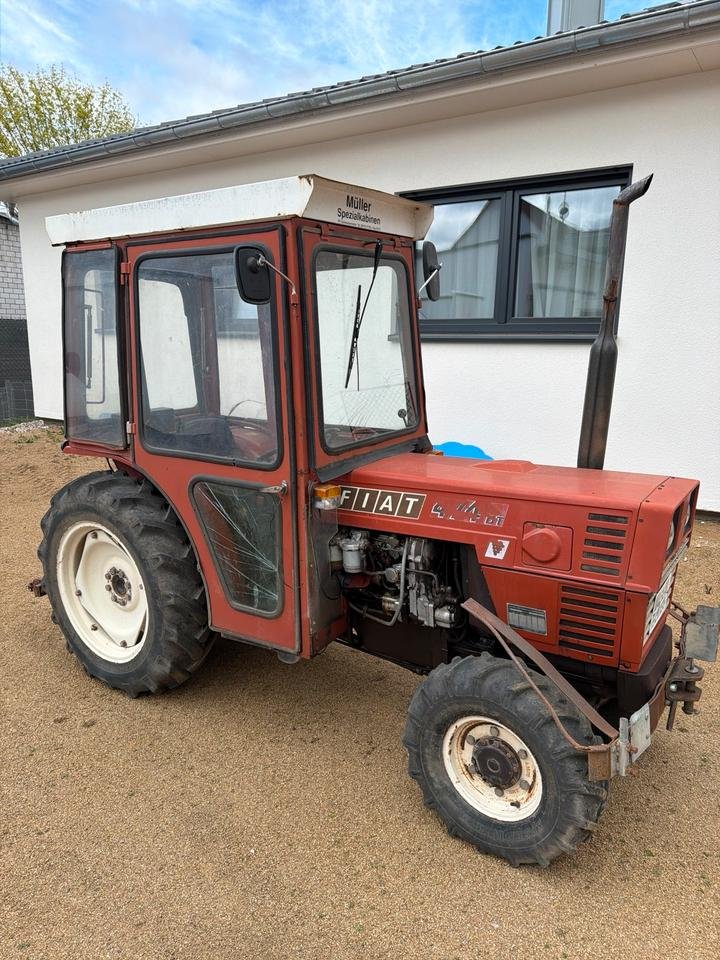

Fiat Trattori 474 DT/V
Built: 1978–1985 · Series: Other models
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat Trattori – other models: the collective page with the 474 DT/V, 570 V/E and Fiat 470, three-cylinder diesel, 33.8 to 42.7 kW, vineyard and orchard versions
This page gathers Fiat Trattori models the register could not assign to a named range, including the 474 DT/V, 570 V/E and Fiat 470 types. Fiat built its farm machinery within the group at plants in Turin and Modena; the DT and V suffixes in the type designations denote double traction (four-wheel drive) and Vigneto and Frutteto versions for vineyards and orchards, with narrow track and low height.
Read on 3 more paragraphs
The register lists here 3 versions with 33.8 to 42.7 kW from three-cylinder diesel engines of 2,592 to 2,750 cm³ displacement, with unladen weights from 1,529 to 1,960 kg, lengths from 3,000 to 3,180 mm, widths from 1,080 to 1,210 mm and heights from 1,230 to 1,950 mm.
The compact Fiat tractors on this collective page covered the segment of smaller farms and specialty crops in viticulture and fruit growing during the 1970s and 1980s, where the narrow track and low height of the V and DT versions allowed work between tight rows. On the used market, these early Fiat specialty-crop tractors are today regarded mainly as collector pieces for smaller holdings and hobby winegrowers.
When buying these compact specialty-crop tractors, check rust on the low bodywork, the condition of the steering and front axle, the tightness of the hydraulics, and wear on the clutch and gearbox. Spares come through dealers specialising in Fiat/Fiatagri.
Sources: SpecCodex register, model data: Fiat Trattori (weitere Modelle)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 46 hp (33.8 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,592 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 110 mmcorrect |
| Compression ratio | 17correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,180 mmcorrect |
|---|---|
| Width | 1,140 mmcorrect |
| Height | 1,950 mmcorrect |
| Wheelbase | 1,870 mmcorrect |
| Ground clearance | 160 mmcorrect |
| Unladen weight | 1,655 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 9 V/3 Rcorrect |
| Front tyres | 6.00-16 AScorrect |
| Rear tyres | 11.2-24 AScorrect |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 20.4 kW/t (34 kW / 1.7 t)
Power class: Universal (40–100 hp)
Stronger than 30% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat Trattori 474 DT/V have?
The Fiat Trattori 474 DT/V delivers 46 hp.
How much does the Fiat Trattori 474 DT/V weigh?
The unladen weight is 1,655 kg.
What engine does the Fiat Trattori 474 DT/V have?
3 cylinders, 2,592 cm³ displacement, Diesel.
How fast does the Fiat Trattori 474 DT/V go?
Top speed is 20 km/h.
What are the dimensions of the Fiat Trattori 474 DT/V?
3,180 mm × 1,140 mm × 1,950 mm.
When was the Fiat Trattori 474 DT/V built?
Production years: 1978–1985.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
