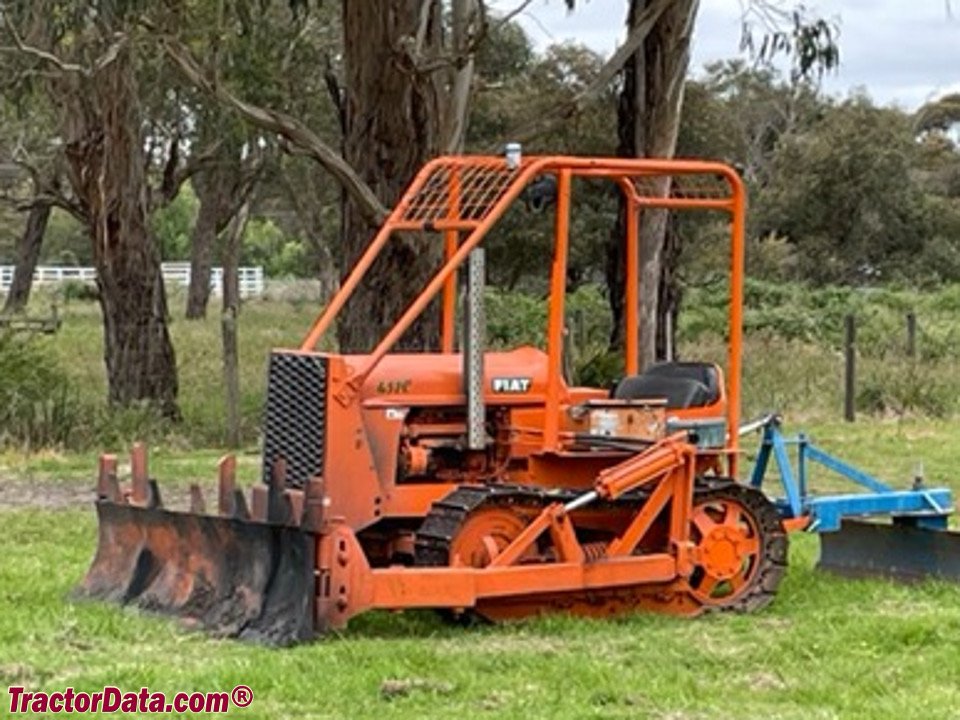

Fiat Trattori 451 C
Built: 1958–1964 · Series: 100 er C-Baureihe
More machines from model year 1958
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat Trattori 100 C – the 1970s farm tractors from Modena: 411 C to 451 C, four-cylinder diesel with 29.4 kW, 2,335 to 2,510 kg weight
Fiat Trattori, the agricultural machinery division of the Turin-based Fiat group, with production centred in Modena in northern Italy, built the 100 C range as a medium-power farm tractor for the European market in the 1970s. This page covers the three versions 411 C (CI), 431 C and 451 C, whose three-digit type number distinguishes the models within the range.
Read on 3 more paragraphs
The register lists 3 versions here with a uniform 29.4 kW rated output from a four-cylinder diesel engine of a constant 2,270 cc displacement. Kerb weight ranges from 2,335 to 2,510 kg, length is a constant 2,530 mm, width ranges from 1,110 to 1,640 mm, and height is 1,300 mm. Maximum torque is recorded at 140 Nm at a rated speed of 2,300 rpm.
With the 100 C range, Fiat Trattori served the mid-power segment in which numerous European makers such as Massey Ferguson, Deutz and Same competed for market share among medium-sized farms in the 1970s. The uniform four-cylinder engine across all three models points to a shared technical base with different equipment or axle configuration.
When buying a used Fiat Trattori from the 100 C range, check the condition of the injection pump and cylinder head, wear on the clutch and gearbox, and corrosion on the frame, bonnet and mudguards after decades of use. Spare parts for this generation are available through dealers in historic Fiat and New Holland agricultural machinery, as well as specialist mechanics.
Sources: SpecCodex register, model data: Fiat Trattori 100 C, New Holland (Nachfolgemarke)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 40 hp (29.4 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 140 Nmcorrect |
| Speed at max. torque | 1,600 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 2,270 cm³correct |
| Bore | 85 mmcorrect |
| Stroke | 100 mmcorrect |
| Compression ratio | 21.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 2,530 mmcorrect |
|---|---|
| Width | 1,640 mmcorrect |
| Height | 1,300 mmcorrect |
| Wheelbase | 1,318 mmcorrect |
| Ground clearance | 270 mmcorrect |
| Unladen weight | 2,510 kgcorrect |
Drivetrain and chassis
| Drive | chain drivecorrect |
|---|---|
| Gearbox | 6 V/2 Rcorrect |
| Top speed | 10 km/hcorrect |
Where this model stands
Power-to-weight ratio: 11.7 kW/t (29 kW / 2.5 t)
Power class: Compact (< 40 hp)
Stronger than 25% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fiat Trattori 451 C have?
The Fiat Trattori 451 C delivers 40 hp.
How much does the Fiat Trattori 451 C weigh?
The unladen weight is 2,510 kg.
What engine does the Fiat Trattori 451 C have?
4 cylinders, 2,270 cm³ displacement, Diesel.
How fast does the Fiat Trattori 451 C go?
Top speed is 10 km/h.
What are the dimensions of the Fiat Trattori 451 C?
2,530 mm × 1,640 mm × 1,300 mm.
When was the Fiat Trattori 451 C built?
Production years: 1958–1964.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
