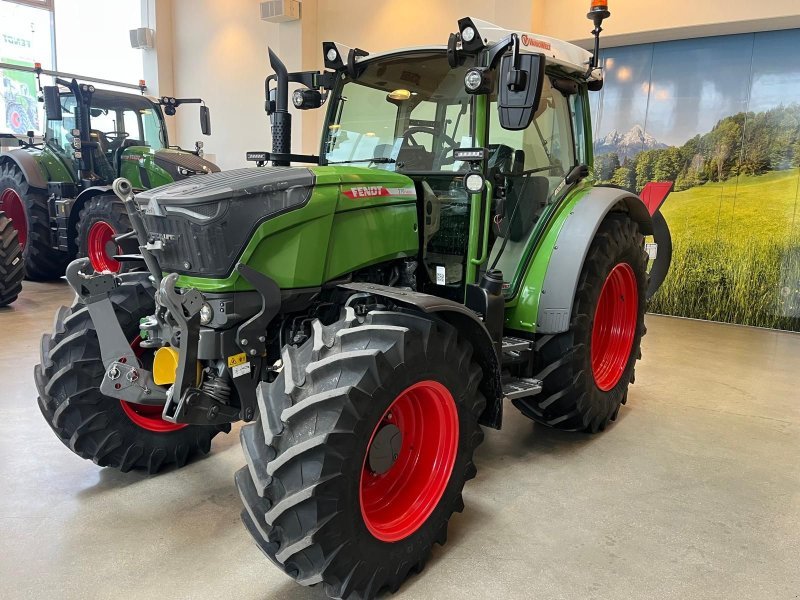

Fendt Vario 210 V/F/P

Built: 2009 · Series: Vario-200

More machines from model year 2009

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the Vario 210 V/F/P, Fendt offers a model from the Vario-200 series. Production: 2009. The engine delivers 90 hp (66 kW), has 3 cylinders, with a displacement of 3,300 cm³. Torque is 408 Nm. Rated speed is 2,100 rpm. The machine is 3,578 mm long, 1,269 mm wide and 2,390 mm high. The unladen weight is 2,780 kg. The wheelbase measures 2,160 mm. Top speed is 40 km/h. Transmission: continuously variable. The engine is water-cooled. Tyres: front 7.5 L 15 / 280/70 R 18 / 280/80 R 18, rear 280/85 R 24 / 12.4 R 28 / 380/85 R 28. The fuel is Diesel/RME. The bore measures 108 mm. The stroke is 120 mm. Maximum torque is reached at 1,600 rpm. Construction: unit construction (no separate frame). The Vario-200 series covers 3 models. Rated output within it ranges from 80 to 100 hp; the Vario 210 V/F/P sits in the middle of that range with 90 hp. Its immediate neighbours are the Vario 209 V/F/P below it with 80 hp and the Vario 211 V/F/P above it with 100 hp. 1545 Fendt models across 89 series are on record.

Fendt Vario 200 – the narrow-track tractor for vineyard and orchard: Vario 209 to 211 V/F/P, three-cylinder diesel with 59 to 74 kW

Fendt of Marktoberdorf builds the Vario 200 range as a compact narrow-track tractor specifically for vineyards, orchards and other specialty crops with tight row spacing. This page covers the three versions Vario 209, Vario 210 and Vario 211, each in the V, F and P variants: V for vineyard use (Vigneron), F for orchard use (Frutteto) and P for the slightly wider Profi version.

Read on 3 more paragraphs

The register lists 3 versions here with 59 to 74 kW rated output from a three-cylinder diesel engine of a constant 3,300 cc displacement. Kerb weight is 2,780 kg across all models, length is 3,578 mm, width ranges from 1,151 to 1,305 mm depending on the version, and height is a constant 2,390 mm. Maximum torque ranges from 373 to 458 Nm at a rated speed of 2,100 rpm, with diesel and rapeseed methyl ester (RME) recorded as fuel.

In vineyards and orchards with tight row spacing, narrow, manoeuvrable tractors such as the Vario 200 range are essential, since conventional standard tractors simply do not fit through. In this specialist segment, Fendt competes against other European makers of narrow-track tractors, which likewise offer their own vineyard and orchard variants.

When buying a used Fendt Vario 200, check the condition of the Vario transmission unit, damage to mudguards and bodywork from contact with vines or branches, the tightness of the hydraulics for mounted implements, and corrosion from frequent contact with plant-protection products. Spare parts and service run through the Fendt dealer network.

Sources: SpecCodex register, model data: Fendt Vario 200, Fendt (manufacturer)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	90 hp (66 kW)correct
Rated speed	2,100 rpmcorrect
Torque	408 Nmcorrect
Speed at max. torque	1,600 rpmcorrect
Cylinders	3correct
Displacement	3,300 cm³correct
Bore	108 mmcorrect
Stroke	120 mmcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,578 mmcorrect
Width	1,269 mmcorrect
Height	2,390 mmcorrect
Wheelbase	2,160 mmcorrect
Unladen weight	2,780 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Front tyres	7.5 L 15 / 280/70 R 18 / 280/80 R 18correct
Rear tyres	280/85 R 24 / 12.4 R 28 / 380/85 R 28correct
Top speed	40 km/hcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 23.7 kW/t (66 kW / 2.8 t)

Power class: Universal (40–100 hp)

Stronger than 60% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt Vario 210 V/F/P have?

The Fendt Vario 210 V/F/P delivers 90 hp.

How much does the Fendt Vario 210 V/F/P weigh?

The unladen weight is 2,780 kg.

What engine does the Fendt Vario 210 V/F/P have?

3 cylinders, 3,300 cm³ displacement, Diesel/RME.

How fast does the Fendt Vario 210 V/F/P go?

Top speed is 40 km/h.

What are the dimensions of the Fendt Vario 210 V/F/P?

3,578 mm × 1,269 mm × 2,390 mm.

When was the Fendt Vario 210 V/F/P built?

Production years: 2009.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
