Fendt F 255 GT
Built: 1976–1984 · Series: Geräteträger
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

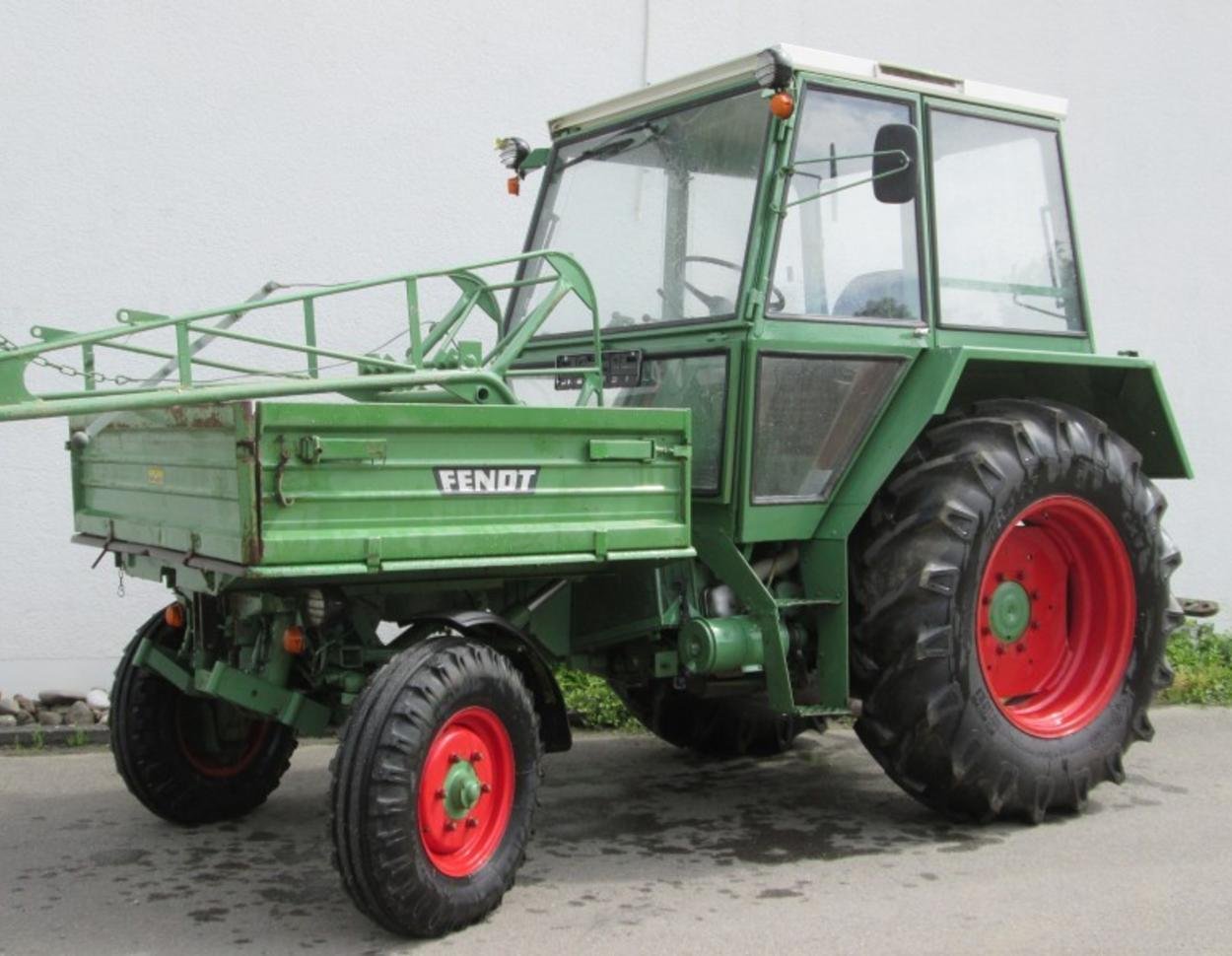

Fendt F 255 GT: air-cooled three-cylinder diesel implement carrier from 1976 to 1984, 2,826 cc, 37 kW and mid-mounted implement space between the axles
Fendt is a German tractor manufacturer based in Marktoberdorf in the Allgäu region, part of the American AGCO corporation since 1997. The F 255 GT belongs to the implement-carrier category, in which attachments are not mounted at the front or rear as on an ordinary tractor but between the axles.
Read on 3 more paragraphs
The F 255 GT is powered by an air-cooled three-cylinder diesel engine of 2,826 cc, producing 50 hp, or 37 kW, at 2,300 rpm. With platform and cab fitted, the machine weighs 3,005 kg, is 4,637 mm long, 2,564 mm high and 1,879 mm wide, with a wheelbase of 2,996 mm; top speed is 30 km/h, and the fast gear range can be locked out.
Mounting the implement between the axles gives a better view of the working tool and a more favourable weight distribution than front-mounting on an ordinary tractor, making the implement carrier suitable for mowing, sweeping and loading work in municipal and agricultural use. The ability to lock out the fast gear range points to applications where a lower top speed was required or desired, for instance when working with mounted implements.
When buying such an implement carrier secondhand, the condition of the mounting interface between the axles, including its hydraulic lines, matters most, since it carries most of the mechanical load. Also worth checking are the cooling fins and fan of the air-cooled engine, the condition of the cab and platform, and the clutch, gearbox and brakes; spare parts for this vehicle class are scarcer than for ordinary field tractors.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt F 255 GT, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 50 hp (37 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 4,637 mmcorrect |
|---|---|
| Width | 1,879 mmcorrect |
| Height | 2,564 mmcorrect |
| Wheelbase | 2,996 mmcorrect |
| Unladen weight | 3,005 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 14V / 4Rcorrect |
| Front tyres | 7, 50 - 16correct |
| Rear tyres | 13, 6 / 12 - 36correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Units built | 2,262correct |
|---|
Where this model stands
Power-to-weight ratio: 12.3 kW/t (37 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt F 255 GT have?
The Fendt F 255 GT delivers 50 hp.
How much does the Fendt F 255 GT weigh?
The unladen weight is 3,005 kg.
What engine does the Fendt F 255 GT have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Fendt F 255 GT go?
Top speed is 30 km/h.
What are the dimensions of the Fendt F 255 GT?
4,637 mm × 1,879 mm × 2,564 mm.
When was the Fendt F 255 GT built?
Production years: 1976–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
