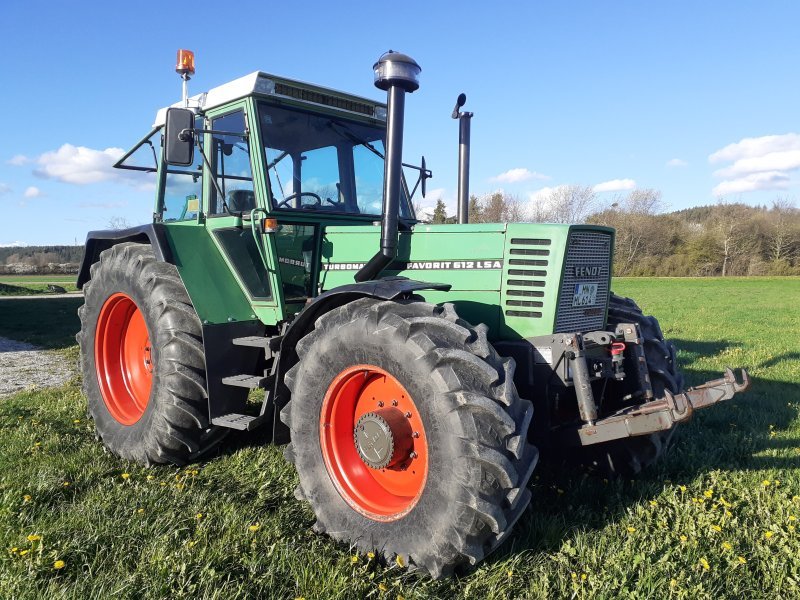

Fendt Favorit 612 LSA
Built: 1988–1993 · Series: Favorit 600 LSA
More machines from model year 1988
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Favorit 612 LSA (600 LSA, 1988–1993): six-cylinder diesel with 6,240 cm³, 106.1 kW, 553 Nm of torque and a 40 km/h top speed
As a further development of the large six-cylinder Favorit tractors, Fendt built the Favorit 600 LSA range in Marktoberdorf, Bavaria. The Favorit 612 LSA was built from 1988 to 1993.
Read on 3 more paragraphs
The Fendt Favorit 612 LSA carries a water-cooled six-cylinder diesel engine with 6,240 cm³ of displacement, producing 145 hp, or 106.1 kW, at 2,400 rpm, with 553 Nm of torque. At 7,025 kg, 4,707 mm long, 2,898 mm high, 2,380 mm wide and with a 2,690 mm wheelbase, the machine reaches a top speed of 40 km/h.
At 106.1 kW from 6,240 cm³ of displacement and, for its time, a high 40 km/h top speed, the Favorit 612 LSA was built both for heavy draft work on large arable farms and for brisker haulage runs between the yard and the field. The design top speed falls under German driving licence class T.
When buying a large six-cylinder Favorit tractor used, the condition of the injection pump and the cooling system under full load matters, along with the tightness of the hydraulic connections for front and rear implements. Also worth checking is corrosion damage to the frame, mudguards and cab, along with the condition of the clutch and gearbox after decades of field work. Before buying such an old tractor, the function of the lighting system and the condition of the tyres are also worth checking closely, along with play in the steering linkage.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt Favorit 612 LSA, Fendt (manufacturer)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 145 hp (106.1 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 553 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,240 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 220 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,707 mmcorrect |
|---|---|
| Width | 2,380 mmcorrect |
| Height | 2,898 mmcorrect |
| Wheelbase | 2,690 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 7,025 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V/9Rcorrect |
| Forward gears | 20correct |
| Reverse gears | 9correct |
| Front tyres | 16.9 R 28correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 220 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 1,589correct |
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 750/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 15.1 kW/t (106 kW / 7 t)
Power class: Large (100–180 hp)
Stronger than 82% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Favorit 612 LSA have?
The Fendt Favorit 612 LSA delivers 145 hp.
How much does the Fendt Favorit 612 LSA weigh?
The unladen weight is 7,025 kg.
What engine does the Fendt Favorit 612 LSA have?
6 cylinders, 6,240 cm³ displacement, Diesel.
How fast does the Fendt Favorit 612 LSA go?
Top speed is 40 km/h.
What are the dimensions of the Fendt Favorit 612 LSA?
4,707 mm × 2,380 mm × 2,898 mm.
When was the Fendt Favorit 612 LSA built?
Production years: 1988–1993.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
