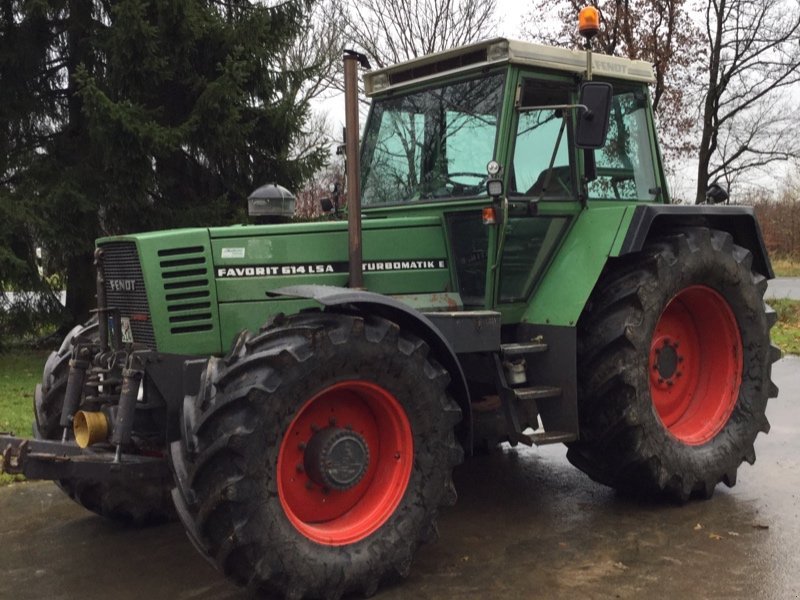

Fendt Favorit 614 LSA (98.8 kW)
Built: 1977–1984 · Series: Favorit 600
More machines from model year 1977
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Favorit 600 (1976–1993) – the Marktoberdorf large tractors before the Vario: 610 to 615 with MWM five- and six-cylinders, 620 and 622 LS with MAN engines up to 11.4 litres, LS, LSA, Turbomatik, 62 to 155 kW
The Favorit 600 was Fendt's large-tractor range of 1976 to 1993 – the class above the Farmer 300 and the forerunner of the Favorit 800 and 900 Vario. The type logic follows the pattern of the time: the number orders the power step in ascending order – 610 about 85 hp, 612 about 105 hp, 615 about 150 hp, 622 over 200 hp – the letters the equipment: S for the standard version with Turbomatik converter clutch, SA for the same with four-wheel drive, LS for the version with powershift transmission, LSA for powershift with four-wheel drive. The 610 to 615 carry MWM five- and six-cylinders of 5.1 to 6.2 litres from the group tie-up with KHD, the 620 LS and 622 LS by contrast MAN six-cylinders of up to 11.4 litres – the heaviest Fendts of their time, built for contractors and large farms in the north and east.
Read on 3 more paragraphs
The register lists 10 versions with 62.2 to 155 kW (85 to 211 hp), 5,100 to 11,400 cm³ with five or six cylinders, torque from 362 to 828 Nm at 2,400 rpm, unladen weights from 3,855 to 9,575 kg, lengths from 4,382 to 5,700 mm, widths from 2,100 to 2,470 mm and heights from 2,540 to 3,080 mm – all diesel.
The Favorit 600 LSA are regarded as the tractors with which Fendt cemented its premium reputation in the 1980s: Turbomatik, powershift, comfort cab and four-wheel drive in a class where the competition still offered manual gearboxes.
Used Favorit 600s are sought-after classics with stable prices; when buying, engine condition (MWM sixes are regarded as durable), Turbomatik and powershift, front axle on four-wheel-drive models and the cab, whose sheet metal rusts, are what count.
Sources: SpecCodex register, model data: Fendt Favorit 600, Fendt Favorit (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 135 hp (98.8 kW)correct |
| Rated speed | 2,400 rpmcorrect |
| Torque | 466 Nmcorrect |
| Speed at max. torque | 1,700 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 6,240 cm³correct |
| Bore | 105 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17correct |
| Injection pressure | 180 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,684 mmcorrect |
|---|---|
| Width | 2,420 mmcorrect |
| Height | 2,859 mmcorrect |
| Wheelbase | 2,715 mmcorrect |
| Ground clearance | 470 mmcorrect |
| Unladen weight | 6,360 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | ZF 3550correct |
| Front tyres | 13.6/12-28correct |
| Rear tyres | 18.4/15-38correct |
| Top speed | 30 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 1,180correct |
Where this model stands
Power-to-weight ratio: 15.5 kW/t (99 kW / 6.4 t)
Power class: Large (100–180 hp)
Stronger than 79% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Favorit 614 LSA have?
The Fendt Favorit 614 LSA delivers 135 hp.
How much does the Fendt Favorit 614 LSA weigh?
The unladen weight is 6,360 kg.
What engine does the Fendt Favorit 614 LSA have?
6 cylinders, 6,240 cm³ displacement, Diesel.
How fast does the Fendt Favorit 614 LSA go?
Top speed is 30 km/h.
What are the dimensions of the Fendt Favorit 614 LSA?
4,684 mm × 2,420 mm × 2,859 mm.
When was the Fendt Favorit 614 LSA built?
Production years: 1977–1984.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
