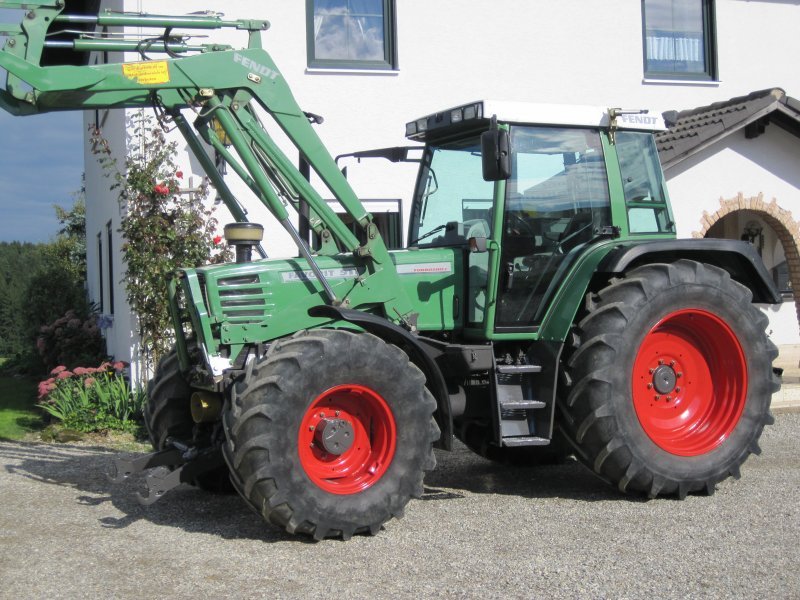

Fendt Favorit 511 C

Built: 1994–1999 · Series: Favorit 500

More machines from model year 1994

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fendt Favorit 511 C is a model in the Favorit 500 series. Production: 1994–1999. The engine delivers 115 hp (84.2 kW), has 6 cylinders, with a displacement of 6,234 cm³. Torque is 456 Nm. Rated speed is 2,300 rpm. The machine is 4,435 mm long, 2,380 mm wide and 2,820 mm high. The unladen weight is 5,300 kg. The wheelbase measures 2,589 mm. Ground clearance is 536 mm. Top speed is 40 km/h. The tank holds 160 litres. Transmission: 44V/44R. The engine is water-cooled. Tyres: front 420/70 R 24, rear 520/70 R 38. The fuel is diesel. The bore measures 105 mm. The stroke is 120 mm. The compression ratio is 15.5:1. Maximum torque is reached at 1,500 rpm. Construction: semi-frame construction. Injection pressure is 850 bar. The linkage is category III. Around 1002 units were built. The Favorit 500 series covers 5 models. Rated output within it ranges from 95 to 150 hp; the Favorit 511 C sits in the lower part of that range with 115 hp. Its immediate neighbours are the Favorit 510 C below it with 105 hp and the Favorit 514 C above it with 140 hp. Unladen weight within it ranges from 4,970 to 5,540 kg; here the Favorit 511 C sits in the middle of that range with 5,300 kg. 1545 Fendt models across 89 series are on record.

Fendt Favorit 500 – tractors from Marktoberdorf of the 1970s to 1990s, models 509 C to 515 C, four- to six-cylinder diesel engines, 69.5 to 110 kW, 4,970 to 5,540 kg unladen weight

The Fendt Favorit 500 is a tractor range that Fendt built between the 1970s and 1990s in Marktoberdorf; it comprises the 509 C, 510 C, 511 C, 514 C and 515 C models, all with diesel engines. The type numbers from 509 to 515 order the models by power class. It was the bread-and-butter tractor in the mid power segment for many arable farms of the 1970s and 1980s.

Read on 3 more paragraphs

The register lists 5 versions with 69.5 to 110 kW (95 to 150 hp) from four- to six-cylinder engines of 4,156 to 6,234 cm³, unladen weights of 4,970 to 5,540 kg, lengths of 4,180 to 4,480 mm, widths of 2,140 to 2,440 mm, heights of 2,795 to 2,855 mm and torque of 381 to 574 Nm at 2,300 rpm.

The Favorit 500 occupied Fendt's mid-to-upper power segment for arable farms of its era and, alongside the larger Favorit ranges, formed a core part of Fendt's line-up; the range competed with comparable tractors from Deutz, Fiat and John Deere. Characteristic of this generation is the absence of electronic vehicle control in favour of purely mechanical and hydraulic operating elements.

On a used Favorit 500, check the clutch, gearbox and hydraulic pump, and rust on the cab, fenders and frame; on older model years, check the injection pump and cylinder head gasket, along with wear on the front axle bushings, with parts available through specialist Fendt parts dealers.

Sources: SpecCodex register, model data: Fendt Favorit 500, Fendt (AGCO, Hersteller)

Technical data

Engine

Fuel	dieselcorrect
Power	115 hp (84.2 kW)correct
Rated speed	2,300 rpmcorrect
Torque	456 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	6correct
Displacement	6,234 cm³correct
Bore	105 mmcorrect
Stroke	120 mmcorrect
Compression ratio	15.5correct
Injection pressure	850 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	4,435 mmcorrect
Width	2,380 mmcorrect
Height	2,820 mmcorrect
Wheelbase	2,589 mmcorrect
Ground clearance	536 mmcorrect
Unladen weight	5,300 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	44V/44Rcorrect
Front tyres	420/70 R 24correct
Rear tyres	520/70 R 38correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	160 lcorrect

Origin and approval

Construction	semi-frame constructioncorrect
Units built	1,002correct

Other data

Linkage category	Cat IIIcorrect

Where this model stands

Power-to-weight ratio: 15.9 kW/t (84 kW / 5.3 t)

Power class: Large (100–180 hp)

Stronger than 72% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt Favorit 511 C have?

The Fendt Favorit 511 C delivers 115 hp.

How much does the Fendt Favorit 511 C weigh?

The unladen weight is 5,300 kg.

What engine does the Fendt Favorit 511 C have?

6 cylinders, 6,234 cm³ displacement, Diesel.

How fast does the Fendt Favorit 511 C go?

Top speed is 40 km/h.

What are the dimensions of the Fendt Favorit 511 C?

4,435 mm × 2,380 mm × 2,820 mm.

When was the Fendt Favorit 511 C built?

Production years: 1994–1999.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
