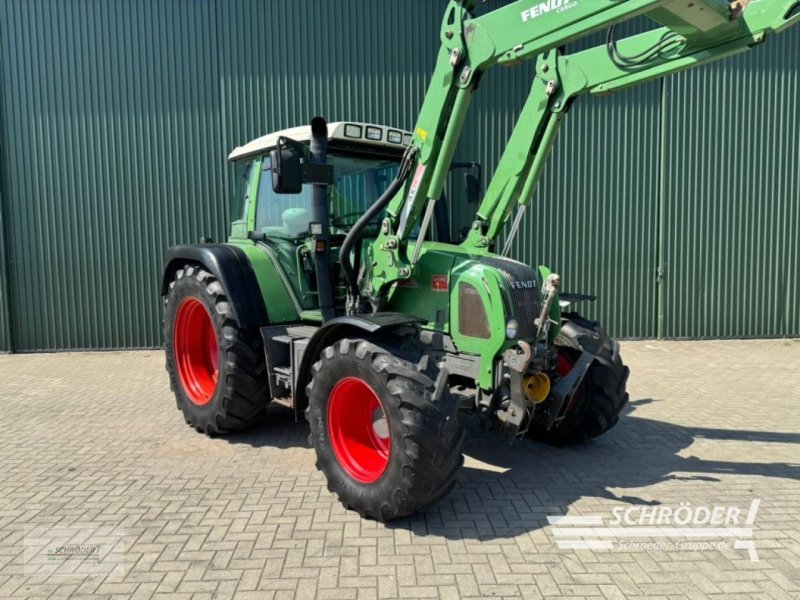

Fendt Farmer 409 Vario
Built: 1999–2006 · Series: Farmer 400 Vario
More machines from model year 1999
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 400 Vario – register name for the 409 to 412 types: stepless Vario transmission, four-cylinder of around 3,800 cm3, 63 to 88 kW, diesel/RME
Under the register name Farmer 400 Vario, SpecCodex lists the four types 409, 410, 411 and 412 Vario, whose consecutive type number orders the models within the same range by ascending engine output. As with the larger Fendt Vario ranges, the Vario name suffix stands for the models' stepless transmission.
Read on 3 more paragraphs
The register lists here four versions with 63 to 88 kW (86 to 120 hp) from four-cylinder engines of 3,800 to 3,802 cm3 displacement. Unladen weight ranges from 4,800 to 5,240 kg, and one version reaches a permissible gross weight of 9,000 kg. Overall length sits between 4,112 and 4,190 mm, width between 2,165 and 2,455 mm, height between 2,765 and 2,875 mm. Torque ranges from 386 to 540 Nm at a rated speed of 2,100 rpm; all four engines are approved for operation on diesel and rapeseed methyl ester (RME).
With stepless power transmission and a power band of 86 to 120 hp, the Farmer 400 Vario positioned itself in the mid segment for operations needing comfortable fieldwork with stepless speed control as well as transport and front-PTO work.
On the Vario transmissions of this series, it is worth checking the service records for regular oil changes and the software state of the transmission control; mechanically, what counts is the condition of the PTO clutch plates, the tightness of the hydraulics and lift-linkage connections, and corrosion on the load-bearing frame members and cab mounting. Service, spare parts and software updates run through the Fendt/AGCO dealer network.
Sources: SpecCodex register, model data: Fendt Farmer 400 Vario, Fendt (AGCO, Hersteller)
Technical data
Engine
| Fuel | Diesel /Raps-Methyl-Estercorrect |
|---|---|
| Power | 86 hp (63 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 386 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,800 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 17.5correct |
| Injection pressure | 1 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,112 mmcorrect |
|---|---|
| Width | 2,165 mmcorrect |
| Height | 2,765 mmcorrect |
| Wheelbase | 2,417 mmcorrect |
| Ground clearance | 500 mmcorrect |
| Unladen weight | 4,800 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | continuously variablecorrect |
| Front tyres | 440/65 R 24correct |
| Rear tyres | 540/65 R 34correct |
| Top speed | 50 km/hcorrect |
Working data
| Fuel tank capacity | 165 lcorrect |
|---|
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|
Other data
| Linkage category | Cat IIIcorrect |
|---|---|
| PTO speed | 540/750/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 13.1 kW/t (63 kW / 4.8 t)
Power class: Universal (40–100 hp)
Stronger than 58% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 409 Vario have?
The Fendt Farmer 409 Vario delivers 86 hp.
How much does the Fendt Farmer 409 Vario weigh?
The unladen weight is 4,800 kg.
What engine does the Fendt Farmer 409 Vario have?
4 cylinders, 3,800 cm³ displacement, Diesel /Raps-Methyl-Ester.
How fast does the Fendt Farmer 409 Vario go?
Top speed is 50 km/h.
What are the dimensions of the Fendt Farmer 409 Vario?
4,112 mm × 2,165 mm × 2,765 mm.
When was the Fendt Farmer 409 Vario built?
Production years: 1999–2006.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 29 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
