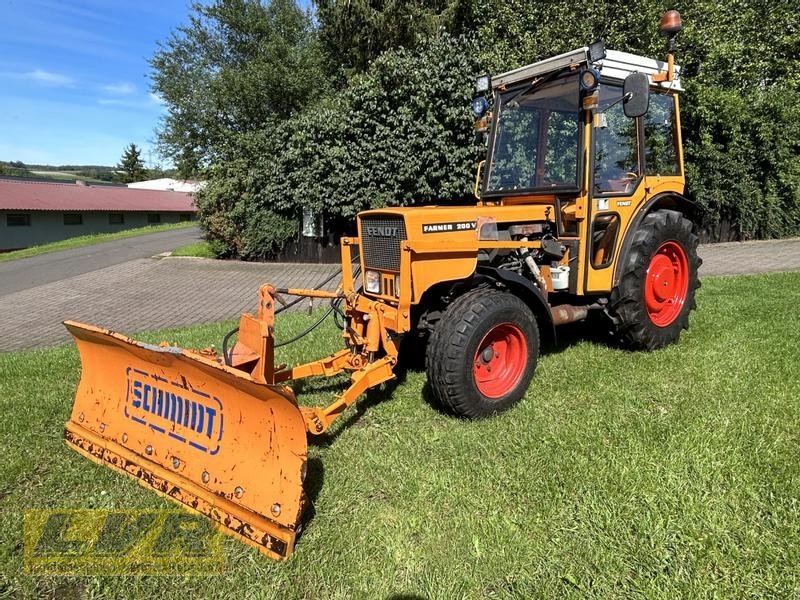

Fendt Farmer 200 V
Built: 1974–1987 · Series: Farmer 200
More machines from model year 1974
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fendt Farmer 200 — narrow-track for vineyards, orchards and plantations
The Farmer 200 range was not built for open fields but for the row: narrow-track tractors for viticulture, orchards and plantations. Fendt began in 1974 with a concept still carried on today — narrow enough to work between vine rows, yet fully equipped.
Read on 3 more paragraphs
The letters after the number say what the tractor was built for. V stands for viticulture: particularly narrow and low. P stands for plantations — the most striking example is the 203 P, which stands just 1,340 mm tall, lower than many a small car. A trailing A means four-wheel drive. When comparing offers it is therefore worth reading the letter first, not the number.
The range spans two generations. Farmer 200 and 203 ran from 1974 to 1982 with air-cooled three-cylinder engines of 38 and 50 hp respectively. The later 260 and 270 arrived in 1988 and ran until 2001 and 2002, with 60 and 70 hp from the same basic concept.
Production figures are modest and explain today's used market: 1,048 Farmer 200s were built with rear-wheel drive and 975 with all-wheel drive, then 948 and 1,689 of the 203, around 1,345 of the 260 and roughly 2,475 of the 270. These are runs of a few thousand machines — well-kept examples hold their value accordingly.
Sources: Traktorenlexikon (Wikibooks), Traktorenlexikon: 203 V/VA (Wikibooks), FENDTfan Typenverzeichnis
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 38 hp (27.8 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Torque | 880 Nmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,750 mmcorrect |
|---|---|
| Width | 920 mmcorrect |
| Height | 1,280 mmcorrect |
| Wheelbase | 1,918 mmcorrect |
| Ground clearance | 310 mmcorrect |
| Unladen weight | 1,550 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4Rcorrect |
| Front tyres | 4.50-16 ( A: 6.00-16 )correct |
| Rear tyres | 9.5/9-24correct |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 37 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 1304 ( A: 1196 )correct |
Other data
| Linkage category | Cat Icorrect |
|---|---|
| PTO speed | 540/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 17.9 kW/t (28 kW / 1.6 t)
Power class: Compact (< 40 hp)
Stronger than 23% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt Farmer 200 V have?
The Fendt Farmer 200 V delivers 38 hp.
How much does the Fendt Farmer 200 V weigh?
The unladen weight is 1,550 kg.
What engine does the Fendt Farmer 200 V have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Fendt Farmer 200 V go?
Top speed is 25 km/h.
What are the dimensions of the Fendt Farmer 200 V?
2,750 mm × 920 mm × 1,280 mm.
When was the Fendt Farmer 200 V built?
Production years: 1974–1987.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 27 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
