Fendt 309 CI
Built: 2003–2007 · Series: 300er-Baureihe
More machines from model year 2003
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

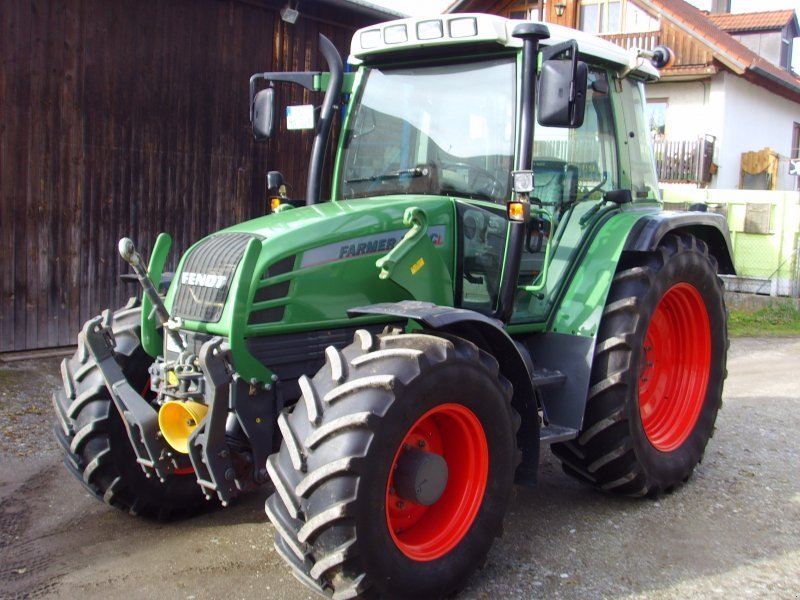

Fendt 309 CI (300er range, 2003–2007): four-cylinder diesel with 4,038 cm³, 76.9 kW, 474 Nm of torque and a weight of 4,220 kg
The 300er range sat, at Fendt, built in Marktoberdorf, Bavaria, within the AGCO group, between the more compact 200er range and the larger 500er and 600er ranges. The 309 CI was built from 2003 to 2007.
Read on 3 more paragraphs
The Fendt 309 CI carries a water-cooled four-cylinder diesel engine with 4,038 cm³ of displacement, producing 105 hp, or 76.9 kW, at 2,300 rpm, with 474 Nm of torque; it runs on diesel or RME. At 4,220 kg, 4,000 mm long, 2,710 mm high, 2,140 mm wide and with a 2,280 mm wheelbase, the machine reaches a top speed of 40 km/h.
At 76.9 kW from 4,038 cm³ of displacement, the 309 CI sits between compact yard and front-loader tractors and the large farm tractors, and suits versatile field work with medium-weight implements as well as haulage on medium-sized farms. The 40 km/h design top speed falls under German driving licence class T.
When buying used, the condition of the clutch and gearbox matters, along with the tightness of the hydraulic connections for front and rear implements and the condition of the cooling system, whose hoses and radiator can become brittle or leak after many years of service. Also worth checking is corrosion damage to the frame and mudguards, common on machines of this age, along with the condition of the tyres, the function of the lighting system, and play in the steering linkage after years of yard and field use.
Sources: SpecCodex-Register: Kennwerte des Modells Fendt 309 CI, Fendt (manufacturer)
Technical data
Engine
| Fuel | Diesel / RMEcorrect |
|---|---|
| Power | 105 hp (76.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 474 Nmcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18.4correct |
| Injection pressure | 1,400 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,000 mmcorrect |
|---|---|
| Width | 2,140 mmcorrect |
| Height | 2,710 mmcorrect |
| Wheelbase | 2,280 mmcorrect |
| Ground clearance | 480 mmcorrect |
| Unladen weight | 4,220 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 21V/6Rcorrect |
| Front tyres | 440/65 R 24correct |
| Rear tyres | 540/65 R 34correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 108 lcorrect |
|---|
Origin and approval
| Construction | semi-frame constructioncorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 540/540E/1000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 18.2 kW/t (77 kW / 4.2 t)
Power class: Large (100–180 hp)
Stronger than 68% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Fendt 309 CI have?
The Fendt 309 CI delivers 105 hp.
How much does the Fendt 309 CI weigh?
The unladen weight is 4,220 kg.
What engine does the Fendt 309 CI have?
4 cylinders, 4,038 cm³ displacement, Diesel / RME.
How fast does the Fendt 309 CI go?
Top speed is 40 km/h.
What are the dimensions of the Fendt 309 CI?
4,000 mm × 2,140 mm × 2,710 mm.
When was the Fendt 309 CI built?
Production years: 2003–2007.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 31 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
