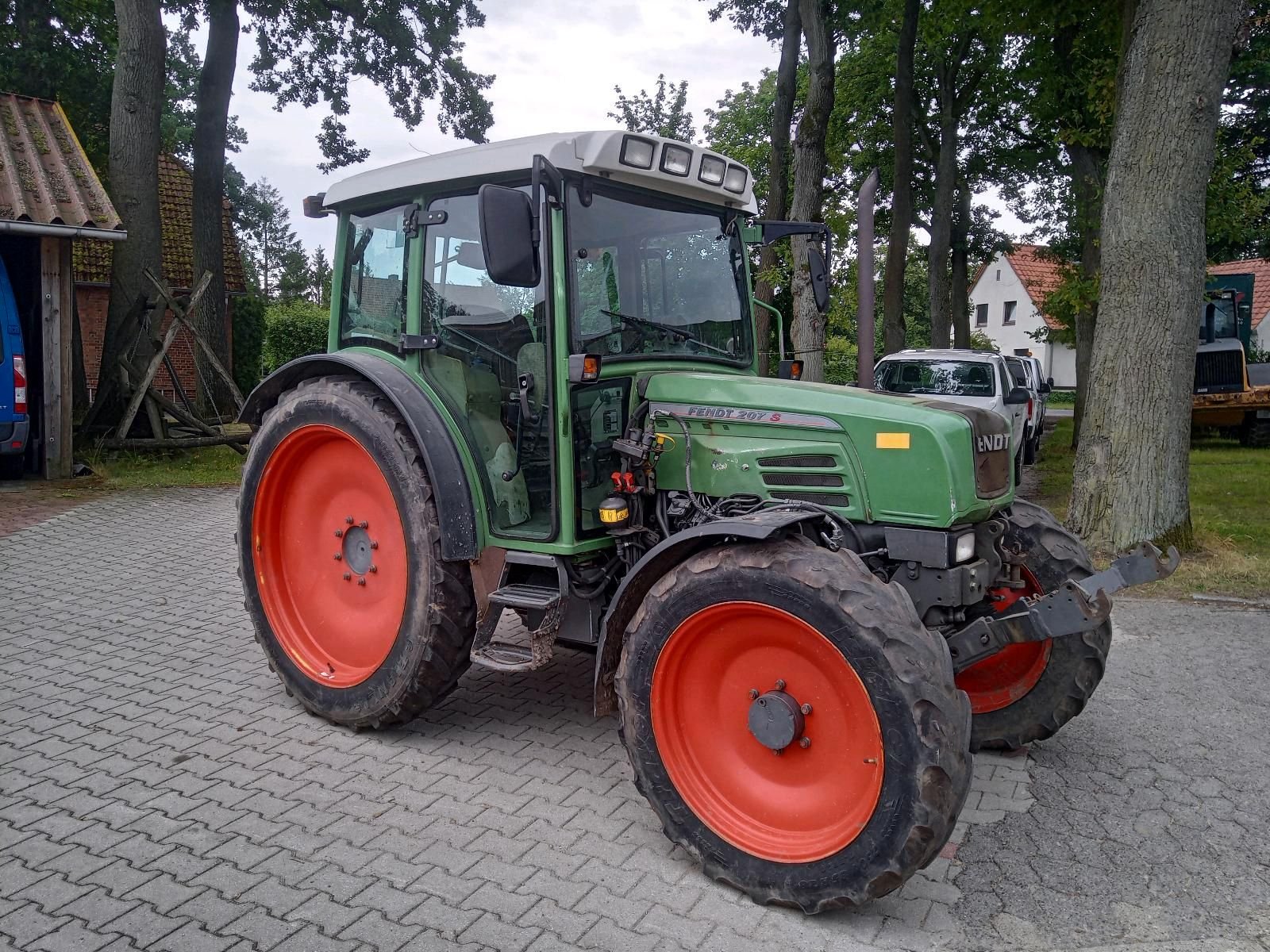

Fendt 207 S

Built: 2003 · Series: 200 S-Reihe

More machines from model year 2003

Source: https://www.kleinanzeigen.de/s-anzeige/traktor-trecker-fendt

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Fendt 207 S is a model in the 200 S-Reihe series. Production: 2003. The engine delivers 70 hp (51 kW), has 3 cylinders, with a displacement of 3,236 cm³. Torque is 264 Nm. Rated speed is 2,300 rpm. The machine is 3,565 mm long, 1,925 mm wide and 2,515 mm high. The unladen weight is 3,130 kg. The wheelbase measures 2,102 mm. Ground clearance is 395 mm. Top speed is 40 km/h. The tank holds 71 litres. Transmission: 21V/6R. The engine is air-cooled. Tyres: front 335/80 R 18, rear 16.9 R 28. The fuel is Diesel/RME. The bore measures 102 mm. The stroke is 132 mm. Maximum torque is reached at 1,500 rpm. Construction: unit construction (no separate frame). Injection pressure is 1000 bar. The PTO runs at 540/750/1000 rpm. Rated output across the Fendt range ranges from 4 to 553 hp; the 207 S sits at the bottom of that range with 70 hp. Its immediate neighbours are the 206 VA below it with 65.3 hp and the 207 Vario above it with 72 hp. Rated output across the Fendt range ranges from 9 to 540 hp; here the 207 S sits at the bottom of that range with 70 hp. 1545 Fendt models across 89 series are on record.

Fendt 200 S-range – the compact 207 S and 209 S from Marktoberdorf: Vario transmission, three- or four-cylinder engine, 51 to 65.9 kW

The Fendt 200 S range, like the brand's other Vario tractors, is built in Marktoberdorf in Upper Bavaria. The 207 S and 209 S show the type logic of the 200 range: the first two digits denote the range, the last digit the power step within it. Both models are approved for running on diesel or RME. As with all Fendt Vario ranges, the stepless transmission allows travel speed to be matched to the task independent of load and engine speed.

Read on 3 more paragraphs

The register lists here 2 versions with 51 to 65.9 kW (70 to 90 hp) from three- to four-cylinder engines of 3,236 to 4,314 cm³ displacement and 264 to 327 Nm of torque, with unladen weights from 3,130 to 3,220 kg, lengths from 3,565 to 3,695 mm, widths from 1,925 to 1,963 mm and a height of 2,515 mm.

The 200 range forms the compact entry segment in Fendt's Vario line-up, aimed at smaller and medium-sized farms as well as municipal and special applications, where manoeuvrability and lower weight matter more than on the brand's larger standard tractors. In municipal use, tractors of this size class are often fitted with a sweeper, snow plough or mower arm.

When buying used, check the condition and service history of the stepless Vario transmission, the tightness of the hydraulics, the condition of the electronics, and the operating hours and rust on the chassis and cab. Spares and service run through Fendt's distribution within AGCO.

Sources: SpecCodex register, model data: Fendt 200 S-Reihe, Fendt (AGCO, Hersteller)

Technical data

Engine

Fuel	Diesel/RMEcorrect
Power	70 hp (51 kW)correct
Rated speed	2,300 rpmcorrect
Torque	264 Nmcorrect
Speed at max. torque	1,500 rpmcorrect
Cylinders	3correct
Displacement	3,236 cm³correct
Bore	102 mmcorrect
Stroke	132 mmcorrect
Injection pressure	1,000 barcorrect
Cooling	air-cooledcorrect

Dimensions and weights

Length	3,565 mmcorrect
Width	1,925 mmcorrect
Height	2,515 mmcorrect
Wheelbase	2,102 mmcorrect
Ground clearance	395 mmcorrect
Unladen weight	3,130 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	21V/6Rcorrect
Front tyres	335/80 R 18correct
Rear tyres	16.9 R 28correct
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	71 lcorrect

Origin and approval

Construction	unit construction (no separate frame)correct

Other data

PTO speed	540/750/1000 rpmcorrect

Where this model stands

Power-to-weight ratio: 16.3 kW/t (51 kW / 3.1 t)

Power class: Universal (40–100 hp)

Stronger than 47% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Fendt 207 S have?

The Fendt 207 S delivers 70 hp.

How much does the Fendt 207 S weigh?

The unladen weight is 3,130 kg.

What engine does the Fendt 207 S have?

3 cylinders, 3,236 cm³ displacement, Diesel/RME.

How fast does the Fendt 207 S go?

Top speed is 40 km/h.

What are the dimensions of the Fendt 207 S?

3,565 mm × 1,925 mm × 2,515 mm.

When was the Fendt 207 S built?

Production years: 2003.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
