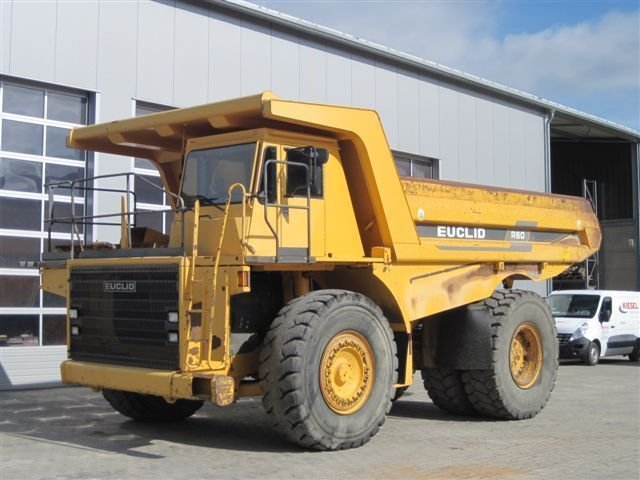

Euclid R60
Series: Euclid Rock Truck
With the R60, Euclid offers a model from the Euclid Rock Truck series. The engine delivers 709.8 hp (498.1 kW), has 6 cylinders, with a displacement of 18,845.1 cm³. Torque is 2,730.1 Nm. Rated speed is 2,100 rpm. The machine is 4,444 mm wide. The wheelbase measures 4,291.6 mm. Ground clearance is 762 mm. Top speed is 57.6 km/h. The tank holds 700.3 litres. Maximum torque is reached at 1,400 rpm. The hydraulic tank holds 272.5 litres. The cooling system holds 189.6 litres. The oil fill is 60.9 litres. The electrical system runs on 24 V. The engine fitted is the KTTA19-C. Tyre size: 24,00-35(36)E3. The Euclid Rock Truck series covers 4 models. Rated output within it ranges from 406.6 to 937.8 hp; the R60 sits in the middle of that range with 709.8 hp. Its immediate neighbours are the R50 below it with 616.4 hp and the R85B above it with 937.8 hp. 4 Euclid models are on record. The model is listed under Mining equipment. 21 verified figures from 1 source are on file.
Technical data
Engine
| Engine model | KTTA19-Ccorrect |
|---|---|
| Power | 709.8 hp (498.1 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 2,730.1correct |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 18,845.1 cm³correct |
| Aspiration | Turbocharged Aftercooledcorrect |
| Coolant capacity | 189.6 lcorrect |
| Engine oil capacity | 60.9 lcorrect |
Dimensions and weights
| Length | 9,296.4correct |
|---|---|
| Width | 4,444correct |
| Height | 4,240 mmcorrect |
| Wheelbase | 4,291.6correct |
| Ground clearance | 762correct |
Drivetrain and chassis
| Gearbox type | Allison CLT-6063correct |
|---|---|
| Tyre size | 24.00-35(36)E3correct |
| Top speed | 57.6 km/hcorrect |
| System voltage | 24 Vcorrect |
Working data
| Hydraulic oil capacity | 272.5 lcorrect |
|---|---|
| Fuel tank capacity | 700.3 lcorrect |
Frequently asked questions
How much power does the Euclid R60 have?
The Euclid R60 delivers 710 hp.
What engine does the Euclid R60 have?
6 cylinders, 18,845 cm³ displacement.
How fast does the Euclid R60 go?
Top speed is 57.6 km/h.
What are the dimensions of the Euclid R60?
9,296 mm × 4,444 mm × 4,240 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
