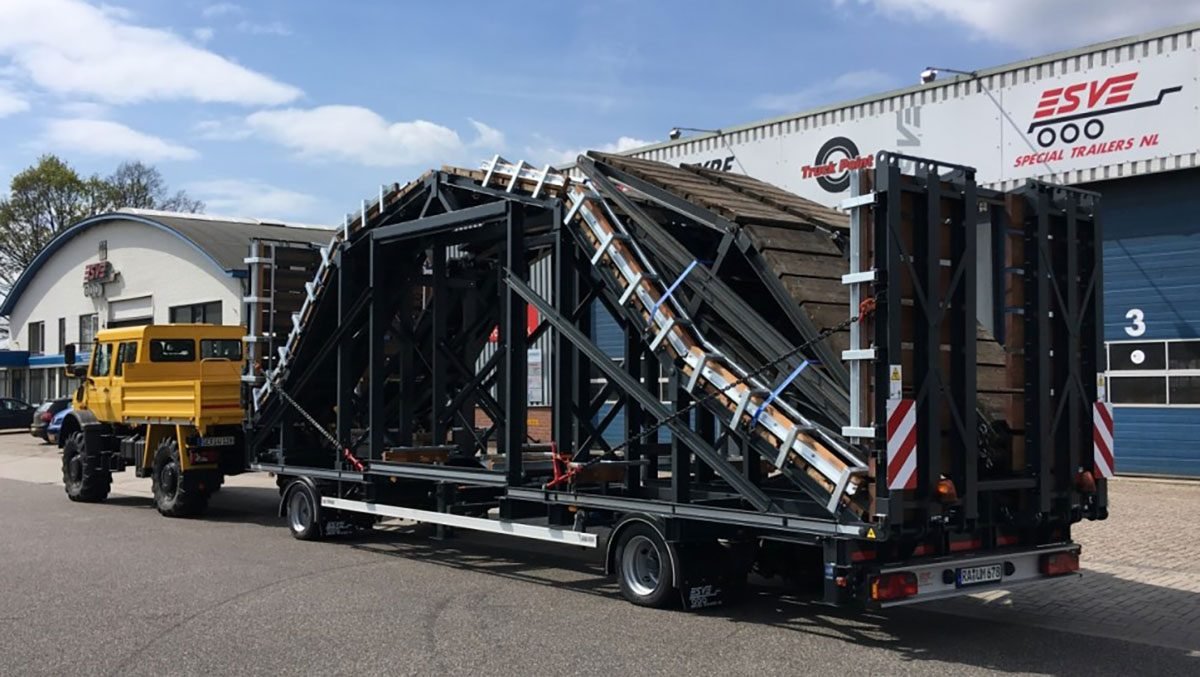

Esve AL 3 3
Built: 1994-1997 · Series: AL
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Esve AL: Dutch trailer range from Winterswijk, AL 3-3 with number and letter suffixes, unladen weights 1,920 to 8,260 kg, gross weights up to 10,000 kg
Esve is a Dutch trailer manufacturer based in Winterswijk. Under the type designation AL the register lists a range of trailers whose models are mostly built on the base designation AL 3-3 with attached letter-and-number codes such as R25, R27, R147 or R158. With gross weights from 3,500 to 10,000 kg, the range spans from EU vehicle class O2 to class O3.
Read on 3 more paragraphs
The register lists here 6 versions with unladen weights from 1,920 to 8,260 kg, gross weights from 3,500 to 10,000 kg, widths from 2,380 to 2,500 mm and a recorded length of around 9,700 mm.
Trailers of this weight class, from class O2 into the range of class O3, serve in everyday commercial and agricultural use to carry machinery, materials and goods and are a regular part of many fleets in the Netherlands. The lighter models in the range can still be towed by ordinary trucks or strong vans without a special permit, while the heaviest versions already approach the limit of what a normal combination allows.
Buying used, the condition of the drawbar and tow eye, the brake system and overrun device, axles and suspension, and rust on the frame and side panels all count; spare parts for axles, brakes and lighting are well available through the Dutch and German trailer trade. It is also important to compare the chassis number against the vehicle documents and visually inspect the frame's weld seams and axle mounts for cracks.
Sources: SpecCodex register, model data: Esve AL
Technical data
Dimensions and weights
| Length | 9,700 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Wheelbase | 3,450 mmcorrect |
| Unladen weight | 8,260 kgcorrect |
| Gross vehicle weight | 10,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Esve AL 3 3 weigh?
The unladen weight is 8,260 kg.
What is the gross vehicle weight of the Esve AL 3 3?
10,000 kg.
Up to what speed is the Esve AL 3 3 approved?
Approved up to 100 km/h.
What are the dimensions of the Esve AL 3 3?
9,700 mm × 2,500 mm.
When was the Esve AL 3 3 built?
Production years: 1994-1997.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
