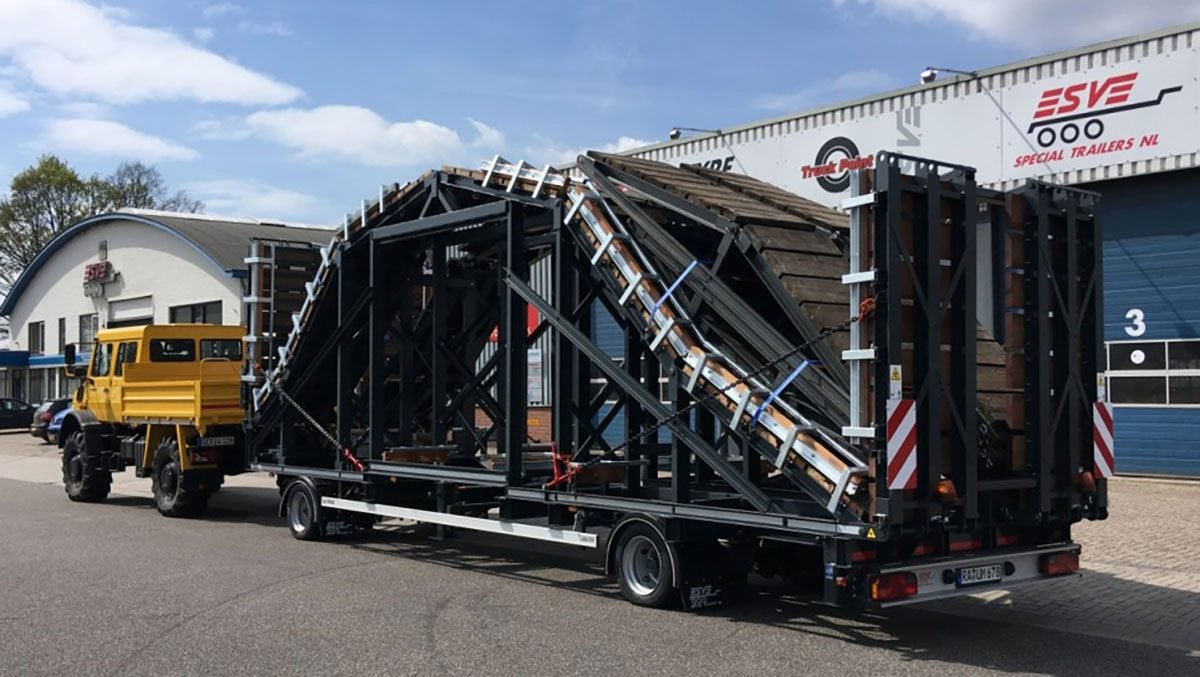

Esve AHWC 10-18
Built: 2005-2006 · Series: AHWC
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Esve AHWC – Dutch heavy-duty trailers from 20 to 28 t gross weight: type series 9 to 10, L and R versions, up to 10.5 m long
Esve of Genemuiden in the Netherlands is best known for livestock and boat trailers, but with the AHWC series the manufacturer also offers heavier versions for general transport. The designations AHWC 10-10, AHWC 10-18 and AHWC 9L-18L distinguish build sizes and axle configurations, while R suffixes such as R153 or R8 mark further build variants of the same base type.
Read on 3 more paragraphs
The register lists 8 versions here with unladen weights from 3,320 to 7,620 kg and gross weights from 20,000 to 28,000 kg. Recorded lengths fall between 8,900 and 10,470 mm, widths between 2,380 and 2,600 mm.
With gross weights from 20 to 28 tonnes, the AHWC series fits into medium-heavy lorry-trailer traffic and is used for general-cargo, building-material and machinery transport behind medium tractor units – a market segment in which Esve's Dutch production competes alongside specialist low-loader and semi-trailer makers.
When buying used, check the frame and main beams for corrosion and cracks, the axle assemblies and their suspension, the brake system with its connections, and the drawbar and support leg. Lighting and tyres also belong on the checklist; Esve supplies its dealer network from spare-parts warehouses in the Netherlands. On older examples, also check the condition of the pneumatic brake system's valves and the wiring at the coupling head.
Sources: SpecCodex register, model data: Esve AHWC
Technical data
Dimensions and weights
| Length | 10,470 mmcorrect |
|---|---|
| Width | 2,520 mmcorrect |
| Wheelbase | 5,630 mmcorrect |
| Unladen weight | 4,820 kgcorrect |
| Gross vehicle weight | 28,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Esve AHWC 10-18 weigh?
The unladen weight is 4,820 kg.
What is the gross vehicle weight of the Esve AHWC 10-18?
28,000 kg.
Up to what speed is the Esve AHWC 10-18 approved?
Approved up to 100 km/h.
What are the dimensions of the Esve AHWC 10-18?
10,470 mm × 2,520 mm.
When was the Esve AHWC 10-18 built?
Production years: 2005-2006.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
