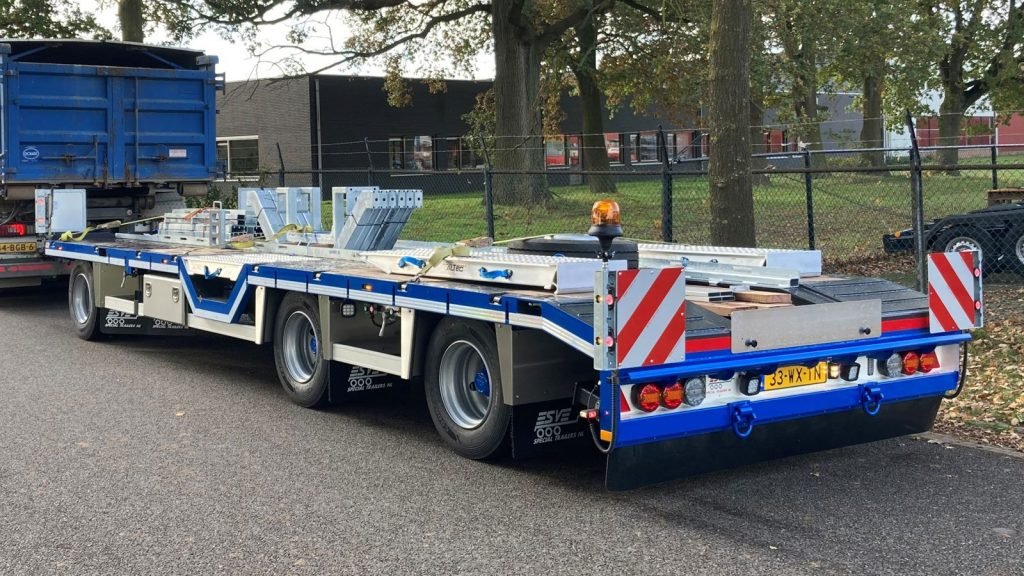

Esve AHW 5-5 – specifications
Built: 2008 · Series: AHW
The AHW 5-5 from Esve is part of the AHW series. Production: 2008. The vehicle is 10,720 mm long and 2,550 mm wide. The unladen weight is 10,840 kg. The wheelbase measures 7,500 mm. Top speed is 95 km/h. The gross vehicle weight is 11,000 kg. The AHW series covers 64 models. Unladen weight within it ranges from 1,500 to 59,040 kg; the AHW 5-5 sits in the lower part of that range with 10,840 kg. Its immediate neighbours are the AHW 6-12 below it with 10,760 kg and the AHW 11.5 above it with 11,380 kg. Gross vehicle weight within it ranges from 3,500 to 60,000 kg; here the AHW 5-5 sits at the bottom of that range with 11,000 kg. 583 Esve models across 15 series are on record.
Data for the version built 2008 · Data origin: Official register · sources
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Esve AHW - Dutch low-loader and special semi-trailers: 64 versions, kerb weight 1,500 to 59,040 kg, gross weights up to 60 t
Esve is a Dutch manufacturer of low-loader and special semi-trailers for heavy haulage. The range name AHW comes from the Dutch term aanhangwagen (trailer) and here covers all versions of this line, from compact trailers to semi-trailers for the heaviest construction machinery.
Read on 3 more paragraphs
The register lists 64 versions with kerb weights from 1,500 to 59,040 kg, gross weights from 3,500 to 60,000 kg, widths from 1,860 to 2,730 mm and lengths from 1,555 to 14,950 mm.
With gross weights up to 60 tonnes, the AHW range is among the heaviest segments of European trailer building and targets hauliers and rental firms moving excavators, cranes or other construction machinery between sites; in this segment Esve competes with specialised Dutch and German low-loader makers, whose semi-trailers differ mainly in axle count, loading height and the way the platform is lowered.
When buying a used heavy low-loader, check above all the condition of the frame and loading ramps, the function of the hydraulic lowering mechanism and ramps, the state of axles, steering axles and brakes, and corrosion at load-bearing welds; on smaller AHW trailers, the coupling head, tyres and frame condition take priority. Spares for special bodies are usually only available through the manufacturer, so it is worth asking about parts supply for the specific model before buying.
Sources: SpecCodex register, model data: Esve AHW
Technical data
Dimensions and weights
| Length | 10,720 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Coupling-to-axle distance | 7,500 mmcorrect |
| Unladen weight | 10,840 kgcorrect |
| Gross vehicle weight | 11,000 kgcorrect |
Drivetrain and chassis
| Top speed | 95 km/hcorrect |
|---|
Frequently asked questions
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
