EMT e-Drive HE 160L4

Series: e-Drive

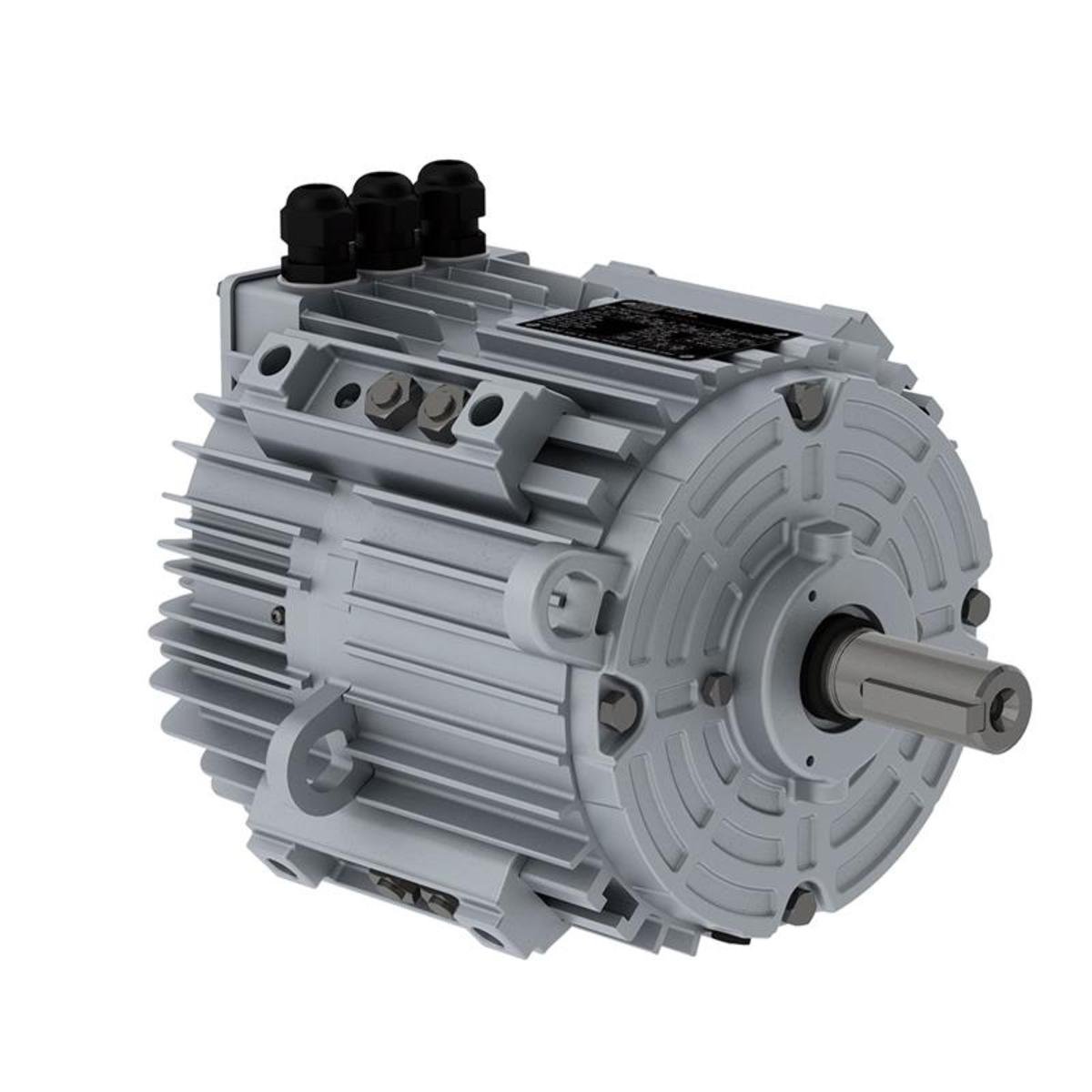

The photo shows the e-Drive Y2AE 100L6 from the same series. Source: https://www.weg.net/catalog/weg/ES/pt/Motores-El%C3%A9tricos

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The EMT e-Drive HE 160L4 is a three-phase induction motor from the EMT range. The rated output is 15 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 160 L in foot-mounted form. The protection class is IP55 and IP56. The efficiency is 91 per cent at full load, 91.4 per cent at 75 per cent load and 90.6 per cent at half load. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 61972. Rated output across the EMT range ranges from 0.75 to 160 kW; the e-Drive HE 160L4 sits at the bottom of that range with 15 kW. Its immediate neighbours are the Y2-160M4 below it with 11 kW and the e-Drive AHE 160L2 above it with 18.5 kW. 274 EMT models are on record. The model is listed under Electric motors. 22 verified figures from 1 source are on file.

Technical data

Engine

Rated output15 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55, IP56correct
Frame size160 L (foot)correct
Mounting (IEC 60034-7)B3, B5, B14, B34, B35, V1, V3, V5, V14correct
Efficiency at full load91 %correct
Efficiency at 75 % load91.4 %correct
Efficiency at half load90.6 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEC 61972correct

Frequently asked questions

How much power does the EMT e-Drive HE 160L4 have?

The EMT e-Drive HE 160L4 delivers 15 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 22 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
