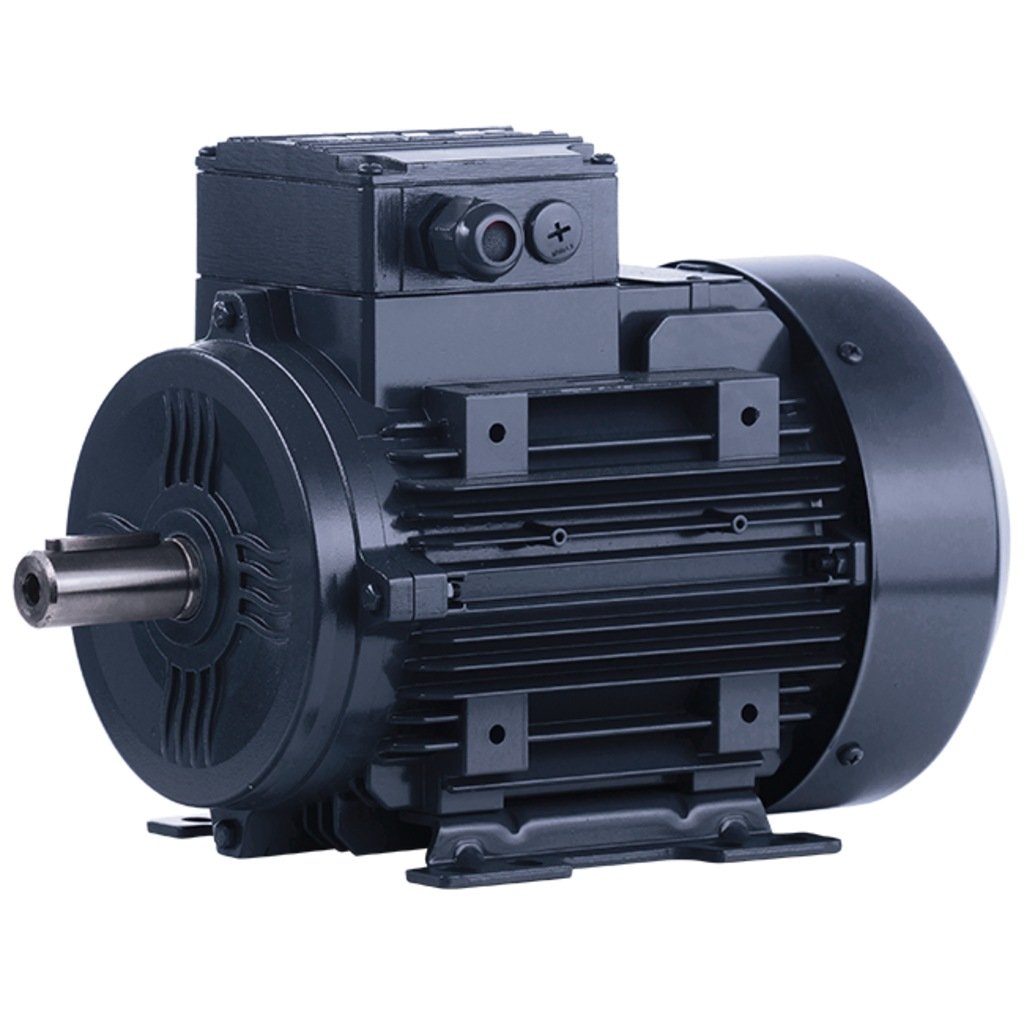

Elk/Yilmaz 3EL132M4D – a three-phase industrial motor rated at 7.5 kilowatts for compressors, pumps and belt conveyors in trade and industry
Motors such as the 3EL132M4D described here belong to the broad class of three-phase industrial motors in the mid power range, working on pumps, fans, compressors and machine drives across trades and industry.
Read on 3 more paragraphs
At a rated output of 7.5 kilowatts, the motor fits a range that in practice often powers compressors, centrifugal pumps or smaller belt conveyors. The digit sequence 132 in the type designation points to a common frame size under IEC 60072, fixing the shaft centre height and the foot and flange dimensions.
Under IEC 60072 the frame size sets the shaft centre height and therefore the foot and flange dimensions, so that motors of the same frame size from different makers stay mechanically interchangeable. The squirrel-cage rotor is standard in industrial motors of this kind, while slip-ring rotors are reserved for high starting torque. Protection ratings follow IEC 60529, mounting arrangements IEC 60034-7, for example IM B3, IM B5 or a vertical V1 version. Running it from a frequency inverter raises the demands on winding insulation.
Before buying, check the rating plate and whether voltage and frequency match the intended supply. Turned by hand, the shaft should run freely and quietly; rattling or catching points to worn bearings. The terminal box and cabling deserve a look for corrosion or cracked insulation, which an insulation test clarifies. For inverter duty the winding must be rated accordingly, otherwise premature insulation failure can follow.
Sources: SpecCodex-Register: Kennwerte des Modells 3EL132M4D
Technical data
Engine
| Rated output | 7.5 kWcorrect |
|---|
Dimensions and weights
| Weight | 59.5 kgcorrect |
|---|
Electrical data
| Rated voltage | 400 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55correct |
| Frame size | 63 M (foot)correct |
| Mounting (IEC 60034-7) | B3, B6correct |
| Efficiency at full load | 90.6 %correct |
| Efficiency at 75 % load | 91.1 %correct |
| Efficiency at half load | 90.3 %correct |
Origin and approval
| Country of manufacture | Turkeycorrect |
|---|
Other data
| Standard applied | AS/NZS 1359.5:2004correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
How much power does the Elk/yilmaz 3EL132M4D have?
The Elk/yilmaz 3EL132M4D delivers 7.5 kW.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
