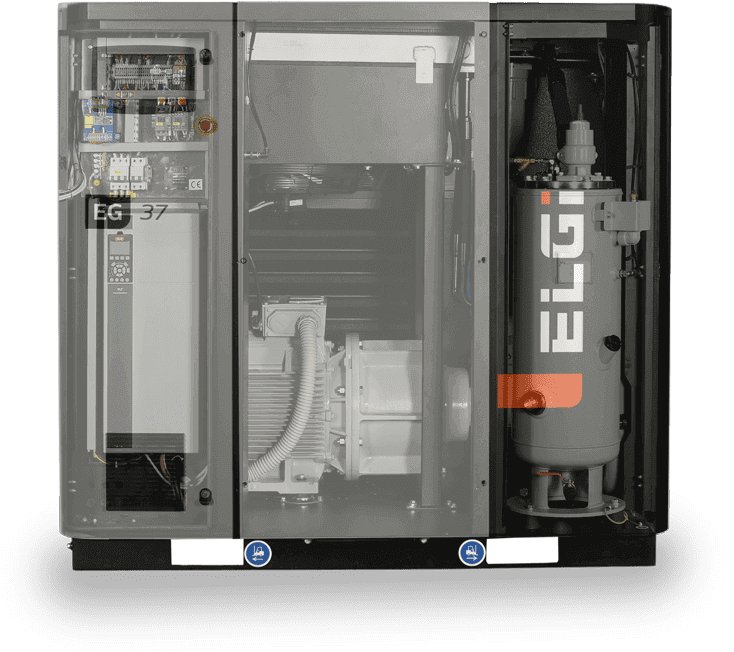

Elgi X100079

Series: Other models

Source: https://www.elgi.com/th/11-75-kw-eg-series-screw-compressors

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Elgi X100079 is a three-phase induction motor. The rated output is 15 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The rated voltage is 400 V. The housing is frame size 160 L in foot-mounted form. The protection class is IP55. The efficiency is 92.1 per cent at full load, 92.2 per cent at 75 per cent load and 91.3 per cent at half load. Mounting arrangements to IEC 60034-7: B3 and B35. The motor is built in India. The data is based on the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). Rated output across the Elgi range ranges from 3 to 75 kW; the X100079 sits in the lower part of that range with 15 kW. Its immediate neighbours are the YVF2-160M1-2 below it with 11 kW and the 160L-2 above it with 18.5 kW. 29 Elgi models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output15 kWcorrect

Electrical data

Rated voltage400 Vcorrect
Number of poles4correct
Protection classIP55correct
Frame size160 L (foot)correct
Mounting (IEC 60034-7)B3, B35correct
Efficiency at full load92.1 %correct
Efficiency at 75 % load92.2 %correct
Efficiency at half load91.3 %correct

Origin and approval

Country of manufactureIndiacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct

Frequently asked questions

How much power does the Elgi X100079 have?

The Elgi X100079 delivers 15 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
