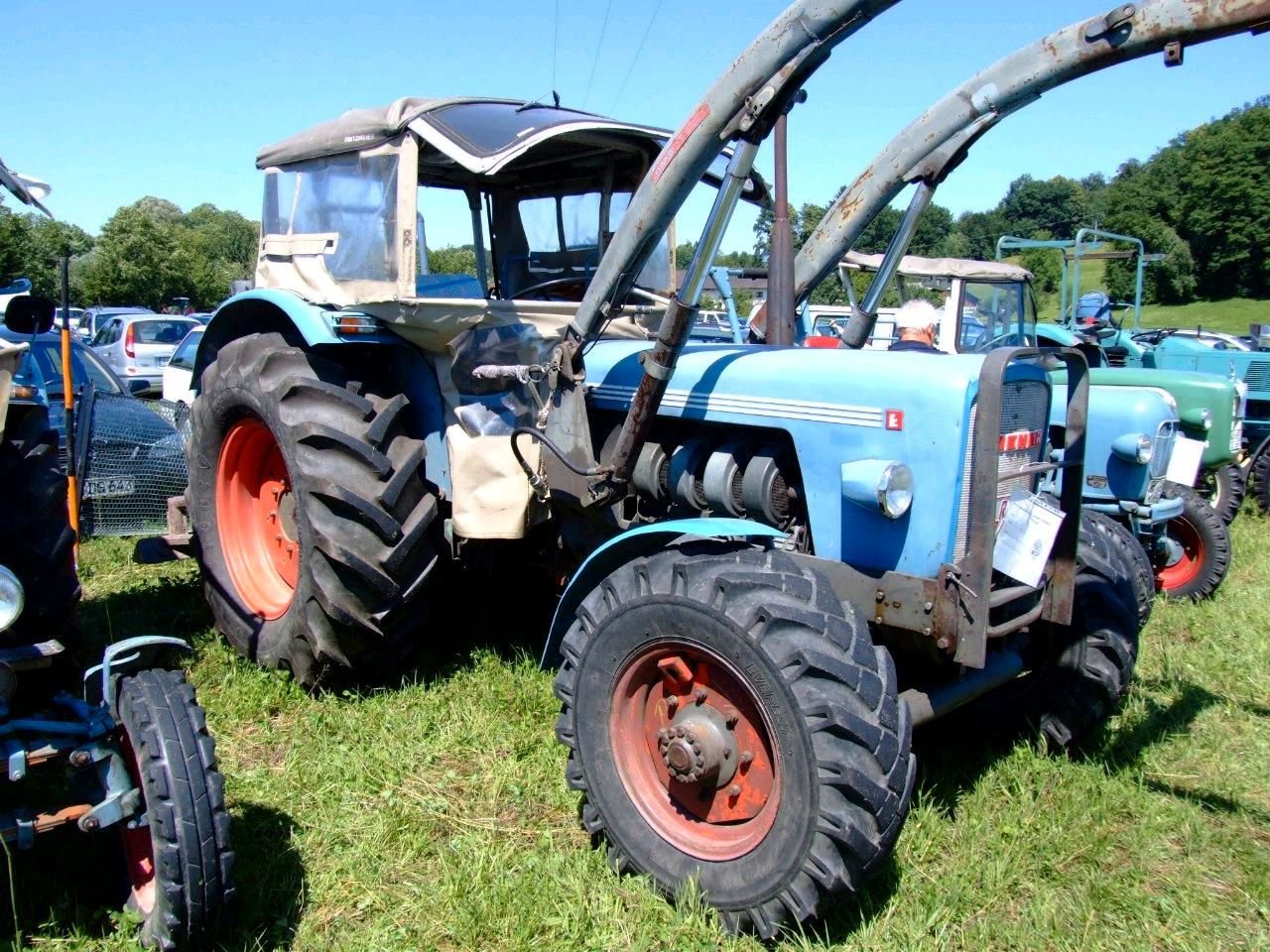

Eicher 3002 HR A Mammut
Built: 1966–1969 · Series: Raubtierreihe
More machines from model year 1966
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher predator range – 3002 HR A Mammut and ES 201 Puma: from Bavaria to the farmyard, 1,963 to 3,927 cc displacement, two- to four-cylinder engines and 1,190 to 2,875 kg
Eicher built its tractors in Bavaria, with plants at Forstern and Dingolfing, and named its 1960s ranges after big predators and wild animals, from Puma and Tiger to the particularly powerful Mammut. This page brings together two representatives of that naming tradition: the small Puma and the large Mammut, showing the span of the predator range from entry level to the top class.
Read on 3 more paragraphs
The register lists 2 variants with 20.5 kW, or 28 hp, of power from two- to four-cylinder engines of 1,963 to 3,927 cc displacement at a rated speed of 2,000 rpm and 108 Nm of torque. Unladen weights range from 1,190 to 2,875 kg, dimensions from 2,370 to 3,620 mm in length, 890 to 1,900 mm in width and 1,110 to 2,350 mm in height.
By naming its models after predators, Eicher pursued an unusually memorable brand identity for the industry in the 1960s, positioning itself alongside Fendt, Deutz and Fahr in the West German tractor market. The wide span between the compact Puma and the heavy Mammut shows how broadly the range served different farm sizes.
When buying used, pay close attention to the specific model given the differing engines across the range, as parts are not interchangeable between the two- and four-cylinder variants. Clutch, gearbox and hydraulics should be checked for wear, and the bodywork for rust. An active network of collectors and specialist parts dealers exists for Eicher classics.
Sources: SpecCodex register, model data: Eicher Raubtierreihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 54 hpcorrect |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,927 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,620 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Height | 2,350 mmcorrect |
| Wheelbase | 2,396 mmcorrect |
| Ground clearance | 420 mmcorrect |
| Unladen weight | 2,875 kgcorrect |
Drivetrain and chassis
| Front tyres | 10, 5-20 Extra Spezialcorrect |
|---|---|
| Rear tyres | 14-30, 11-36 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 91correct |
Where this model stands
Power-to-weight ratio: 13.8 kW/t (40 kW / 2.9 t)
Power class: Universal (40–100 hp)
Stronger than 37% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher 3002 HR A Mammut have?
The Eicher 3002 HR A Mammut delivers 54 hp.
How much does the Eicher 3002 HR A Mammut weigh?
The unladen weight is 2,875 kg.
What engine does the Eicher 3002 HR A Mammut have?
4 cylinders, 3,927 cm³ displacement, Diesel.
How fast does the Eicher 3002 HR A Mammut go?
Top speed is 25 km/h.
What are the dimensions of the Eicher 3002 HR A Mammut?
3,620 mm × 1,900 mm × 2,350 mm.
When was the Eicher 3002 HR A Mammut built?
Production years: 1966–1969.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 17 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
