Eicher 3002 Mammut HR A
Series: Other models
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

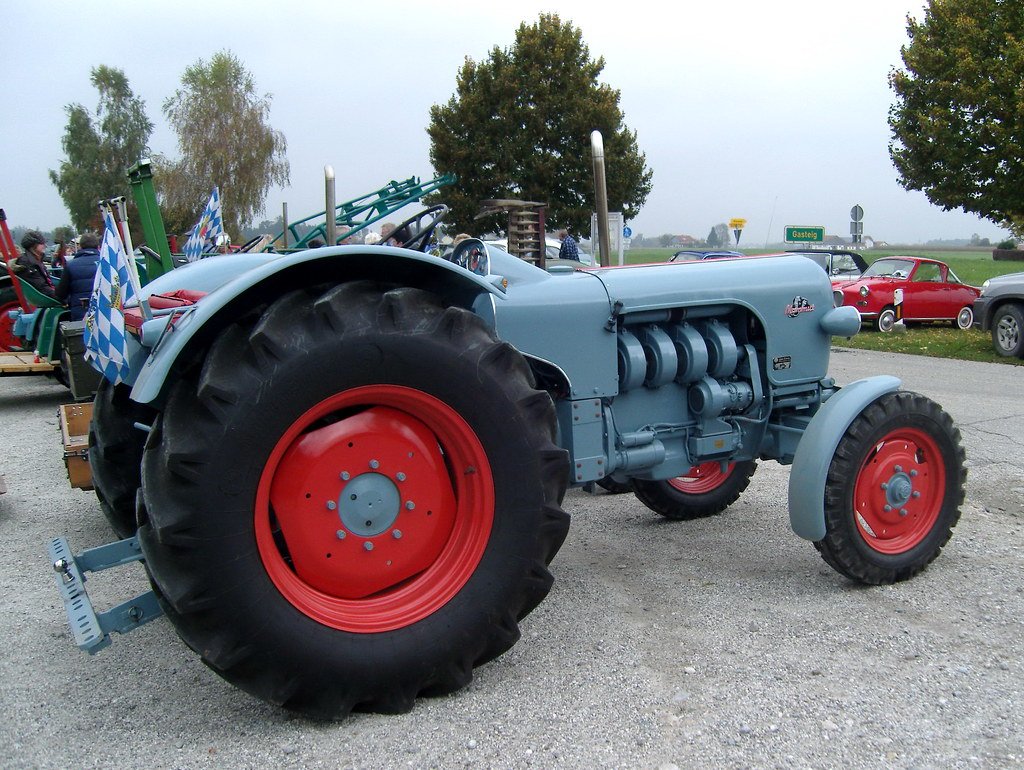

The 3002 Mammut HR A is a tractor manufactured by Eicher. It belongs to the tractor group and features compact dimensions: length 3,620 mm, width 1,900 mm, height 2,350 mm and wheelbase 2,396 mm. The engine has four cylinders with a displacement of 3,927 cm³ and reaches a nominal speed of 2,000 U/min. The empty weight is 2,875 kg and the top speed is 25 km/h.
With a displacement of nearly four litres the engine provides sufficient torque for field tasks such as plowing, harrowing and hauling harvests. The nominal speed of 2,000 U/min allows a steady power band that is optimal under moderate loads. An empty weight of 2,875 kg results in moderate ground pressure, enabling operation on sensitive soils without excessive compaction. The top speed of 25 km/h is adequate for transport between field and farm and for short trips on public roads.
Given its size and technical specifications, the 3002 Mammut HR A is suited for typical agricultural work in medium‑sized farms. It can serve as a pull‑type machine for implements and for internal farm transport of loads. The compact build facilitates maneuvering on narrow field sections and in farmyard areas.
Eicher – other models: the collective page of tractors outside the named ranges, from the big-cat types Tiger, Panther and Königstiger to the Indian 242 XTRAC, 16 to 63 kW, Eicher, Deutz and Simpson diesel engines
This page gathers the Eicher tractors the register could not assign to a named range. Eicher of Bavaria began building tractors in the 1930s and for decades named its models after big cats and predators – Tiger, Königstiger, Panther, Puma, Leopard and Mammut mark different power classes of the German ranges. Later in the 20th century the German tractor division passed to other owners, while the Eicher name lives on in India as an independent tractor brand, where models such as the 242 Super Star, 242 XTRAC and Goodearth 242 are built for the domestic market. The type numbers of the German ranges roughly order the power class, EM and ED mark equipment variants; the engines come from Eicher itself, from Deutz and from Simpson, a long-established Indian engine maker.
Read on 3 more paragraphs
The register lists here 47 versions with 16 to 63 kW from one- to four-cylinders of 1,298 to 3,927 cm³ displacement, unladen weights from 985 to 2,875 kg, lengths from 2,370 to 3,662 mm, widths from 890 to 1,900 mm, heights from 1,110 to 2,350 mm and torque from 65 to 251 Nm at 1,500 to 2,100 rpm.
In Germany, Eicher ranked alongside Fendt, Deutz and Hanomag among the known tractor brands of the post-war era, while the Indian Eicher line remains to this day one of the country's established tractor makers, serving there mainly the smaller and medium power classes.
On the German big-cat types, originality, engine condition and the availability of spares, limited on the rarer ranges, count, and on the Indian models operating hours, the state of clutch and gearbox, and rust on sheet metal; parts are carried by specialist Eicher enthusiast networks and, in India, the Eicher authorised-dealer network.
Sources: SpecCodex register, model data: Eicher (weitere Modelle), Eicher Tractors (Indien, Hersteller)
Technical data
Engine
| Rated speed | 2,000 rpmcorrect |
|---|---|
| Cylinders | 4correct |
| Displacement | 3,927 cm³correct |
Dimensions and weights
| Length | 3,620 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Height | 2,350 mmcorrect |
| Wheelbase | 2,396 mmcorrect |
| Unladen weight | 2,875 kgcorrect |
Drivetrain and chassis
| Top speed | 25 km/hcorrect |
|---|
Frequently asked questions
How much does the Eicher 3002 Mammut HR A weigh?
The unladen weight is 2,875 kg.
What engine does the Eicher 3002 Mammut HR A have?
4 cylinders, 3,927 cm³ displacement.
How fast does the Eicher 3002 Mammut HR A go?
Top speed is 25 km/h.
What are the dimensions of the Eicher 3002 Mammut HR A?
3,620 mm × 1,900 mm × 2,350 mm.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 2 recorded sources; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
