Eicher ED 310
Built: 1959–1962 · Series: Mammut
More machines from model year 1959
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

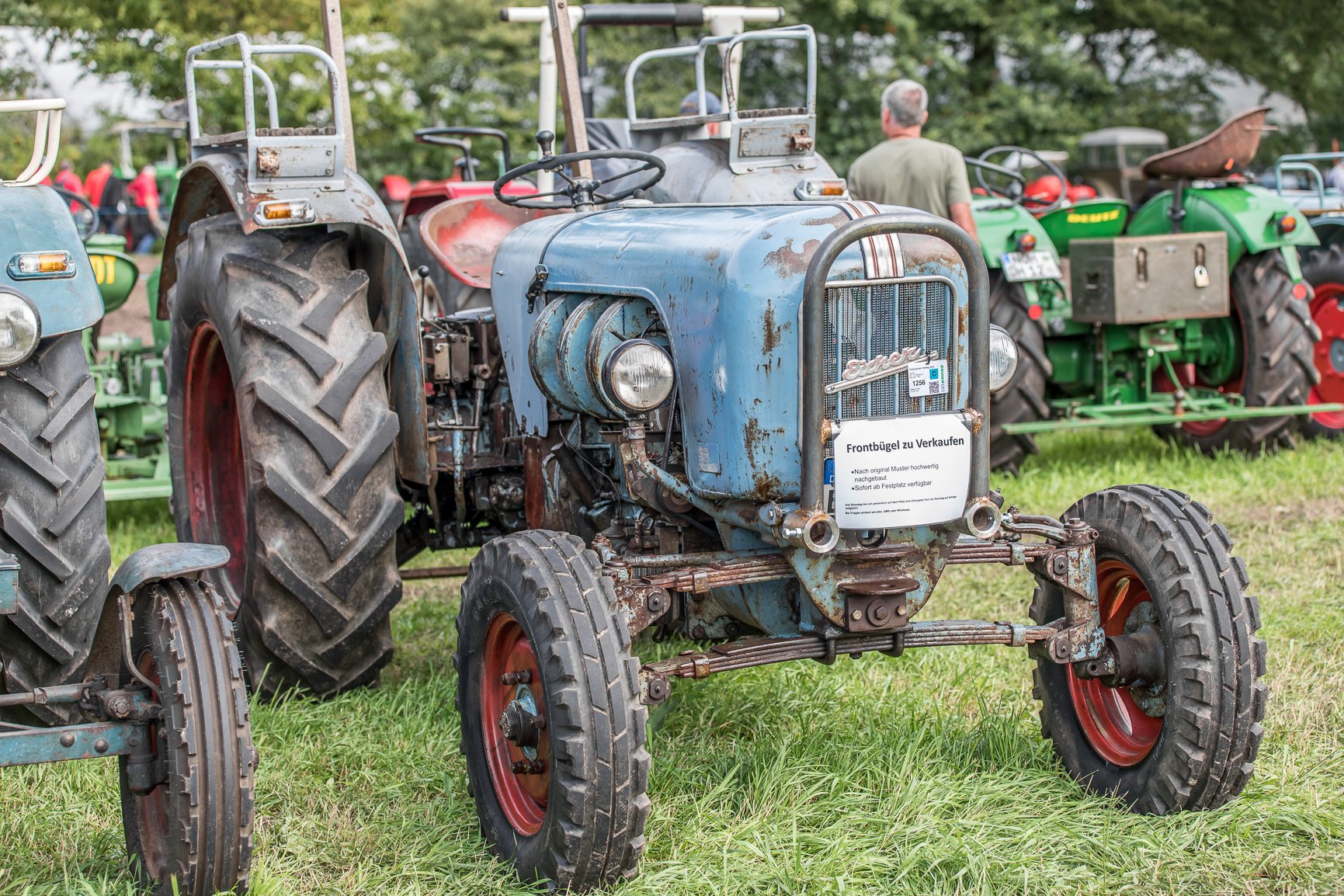

Eicher ED 310 Mammut (1959–1962): three-cylinder diesel with 4,275 cm³ of displacement, 32.9 kW and an unusually large per-cylinder volume
With the nickname Mammut, Eicher, the Bavarian tractor manufacturer, denoted a large-displacement range from the late 1950s and early 1960s. The ED 310 was built from 1959 to 1962. Tractors of this size were regarded in their day as capable versions for farms with correspondingly large areas.
Read on 3 more paragraphs
The Eicher ED 310 carries a three-cylinder diesel engine with 4,275 cm³ of displacement, producing 45 hp, or 32.9 kW. At 2,245 kg, 3,480 mm long, 1,525 mm high, 1,735 mm wide and with a 2,253 mm wheelbase, the machine reaches a top speed of 20 km/h.
With 4,275 cm³ spread across only three cylinders, each individual cylinder has an unusually large volume of over 1,400 cm³, pointing to a slow-running, torque-rich engine well suited to draft work with heavy ploughs. The name Mammut fitted this large-displacement design at a comparatively modest 32.9 kW. The comparatively low 1,525 mm build height stood in some contrast to the machine's bulky, name-giving appearance.
When buying such an old, large-displacement three-cylinder engine used, the condition of the pistons and cylinder liners matters, as wear becomes especially noticeable with large individual displacements. Also worth checking are the injection pump, the condition of the clutch on torque-rich engines of this design, and corrosion damage to the frame and sheet-metal parts, which are the norm on tractors of this age.
Sources: SpecCodex-Register: Kennwerte des Modells Eicher ED 310, Eicher (Wikipedia)
Technical data
Engine
| Power | 45 hp (32.9 kW)correct |
|---|---|
| Cylinders | 3correct |
| Displacement | 4,275 cm³correct |
Dimensions and weights
| Length | 3,480 mmcorrect |
|---|---|
| Width | 1,735 mmcorrect |
| Height | 1,525 mmcorrect |
| Wheelbase | 2,253 mmcorrect |
| Unladen weight | 2,245 kgcorrect |
Drivetrain and chassis
| Forward gears | 8correct |
|---|---|
| Reverse gears | 4correct |
| Front tyres | 6.50-16correct |
| Rear tyres | 11-36, 13-30, 14-30correct |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 65 lcorrect |
|---|
Origin and approval
| Units built | 636correct |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 1,080 rpmcorrect |
Where this model stands
Power-to-weight ratio: 14.7 kW/t (33 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 28% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher ED 310 have?
The Eicher ED 310 delivers 45 hp.
How much does the Eicher ED 310 weigh?
The unladen weight is 2,245 kg.
What engine does the Eicher ED 310 have?
3 cylinders, 4,275 cm³ displacement.
How fast does the Eicher ED 310 go?
Top speed is 20 km/h.
What are the dimensions of the Eicher ED 310?
3,480 mm × 1,735 mm × 1,525 mm.
When was the Eicher ED 310 built?
Production years: 1959–1962.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
