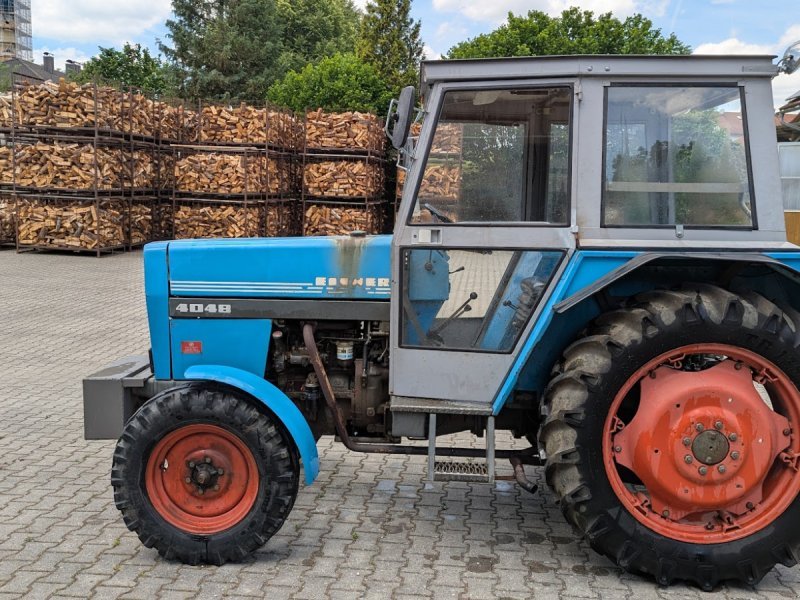

Eicher 4048
Built: 1978–1982 · Series: 4000 er( Phase III - Modelle )
More machines from model year 1978
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 4048 (4000er range, Phase III, 1978–1982): water-cooled three-cylinder diesel with 2,500 cm³, 35 kW and a weight of 2,705 kg
The 4000 range from the Bavarian manufacturer Eicher also received several versions with a water-cooled three-cylinder engine during its production period marked Phase III. The Eicher 4048 was built from 1978 to 1982. Such three-cylinder versions formed the backbone of the range's mid power bracket during this period, while larger four- and six-cylinder engines were reserved for the higher versions.
Read on 3 more paragraphs
The Eicher 4048 carries a water-cooled three-cylinder diesel engine with 2,500 cm³ of displacement, producing 48 hp, or 35 kW. At 2,705 kg, 3,690 mm long, 2,320 mm high, 1,835 mm wide and with a 2,185 mm wheelbase, the machine reaches a top speed of 25 km/h.
At 35 kW from 2,500 cm³ of displacement and a weight of 2,705 kg, the 4048 ranks among the medium-sized versions of the 4000 range and is built for classic field work with a plough, harrow and rotary harrow on medium-sized farms. The 25 km/h top speed was enough for haulage runs between yard and field, not for brisk road travel. The front end also left enough room for a front loader, a fitment common on farms of this size.
When buying a water-cooled three-cylinder engine of this age used, the condition of the water pump and radiator matters, as leaks and scale build-up are common after decades. Also worth checking are the injection pump, the condition of the clutch, and corrosion damage to the frame and mudguards, widespread on tractors of this build era.
Sources: SpecCodex-Register: Kennwerte des Modells Eicher 4048, Eicher (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 48 hp (35 kW)correct |
| Cylinders | 3correct |
| Displacement | 2,500 cm³correct |
| Bore | 91.4 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 175 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,690 mmcorrect |
|---|---|
| Width | 1,835 mmcorrect |
| Height | 2,320 mmcorrect |
| Wheelbase | 2,185 mmcorrect |
| Unladen weight | 2,705 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 16V / 4Rcorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Units built | 720correct |
|---|
Where this model stands
Power-to-weight ratio: 12.9 kW/t (35 kW / 2.7 t)
Power class: Universal (40–100 hp)
Stronger than 32% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Eicher 4048 have?
The Eicher Eicher 4048 delivers 48 hp.
How much does the Eicher Eicher 4048 weigh?
The unladen weight is 2,705 kg.
What engine does the Eicher Eicher 4048 have?
3 cylinders, 2,500 cm³ displacement, Diesel.
How fast does the Eicher Eicher 4048 go?
Top speed is 25 km/h.
What are the dimensions of the Eicher Eicher 4048?
3,690 mm × 1,835 mm × 2,320 mm.
When was the Eicher Eicher 4048 built?
Production years: 1978–1982.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
