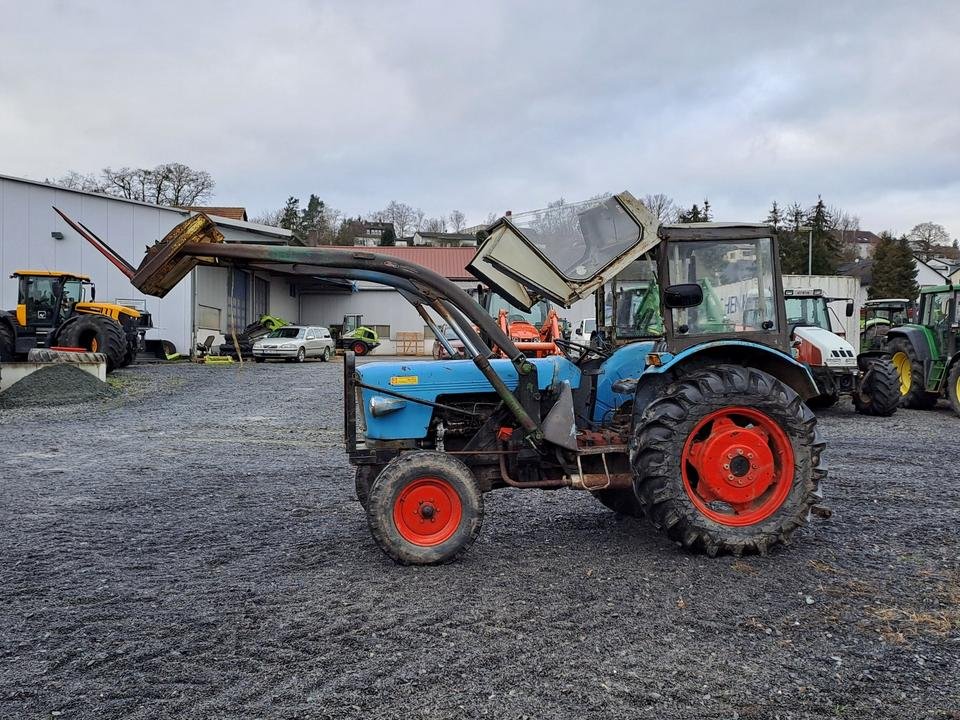

Eicher 3714A-74
Built: 1974–1976 · Series: 3700
More machines from model year 1974
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 3700 series – the narrowest Forstern tractors: 3706 to 3714, 900 to 1,010 mm wide, A for four-wheel drive, air-cooled two- and three-cylinders, vineyard and hop tractors of the 1980s, 22 to 38 kW
The 3700 series is Eicher's narrowest tractor range and the successor to the 500s in the vineyard and hop class: tractors 900 to 1,010 mm wide and only 1,130 to 1,220 mm high that drive between vine rows and under hop trellises where no standard tractor fits. The type logic: the 37 stands for the series, the following digits order the size in ascending order – 3706 the smallest two-cylinder, 3714 the largest three-cylinder – A marks four-wheel drive, the suffix -74 a version with different track width. The engines are Eicher's air-cooled two- and three-cylinders with individual cylinders on a common crankcase, 1,963 and 2,944 cm³, at 2,000 rpm rated speed.
Read on 3 more paragraphs
The register lists 10 versions with 22 to 38 kW (30 to 52 hp), 1,963 to 2,944 cm³ with two or three cylinders, unladen weights from 1,200 to 1,630 kg, lengths from 2,150 to 2,870 mm, widths from 900 to 1,010 mm and heights from 1,130 to 1,220 mm – all diesel.
At 1.2 m high and 0.9 m wide the 3700s are the class of the hop and espalier-fruit farms of Bavaria and the Palatinate, in which Eicher held its ground against Holder, Fendt and the Italians; the low weight spares the soil between the rows.
Used 3700s are sought after by vineyard operations and collectors; when buying, the condition of the air-cooled cylinders and blower, gearbox, steering and front axle, which suffer from constant lock, and parts supply through Eicher specialists are what count.
Sources: SpecCodex register, model data: Eicher 3700, Eicher (Traktorenhersteller) (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 30 hp (22 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,963 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,380 mmcorrect |
|---|---|
| Width | 900 mmcorrect |
| Height | 1,130 mmcorrect |
| Wheelbase | 1,645 mmcorrect |
| Unladen weight | 1,280 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 6/1correct |
| Top speed | 15.4 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.2 kW/t (22 kW / 1.3 t)
Power class: Compact (< 40 hp)
Stronger than 16% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher 3714A-74 have?
The Eicher 3714A-74 delivers 30 hp.
How much does the Eicher 3714A-74 weigh?
The unladen weight is 1,280 kg.
What engine does the Eicher 3714A-74 have?
2 cylinders, 1,963 cm³ displacement, Diesel.
How fast does the Eicher 3714A-74 go?
Top speed is 15.4 km/h.
What are the dimensions of the Eicher 3714A-74?
2,380 mm × 900 mm × 1,130 mm.
When was the Eicher 3714A-74 built?
Production years: 1974–1976.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
