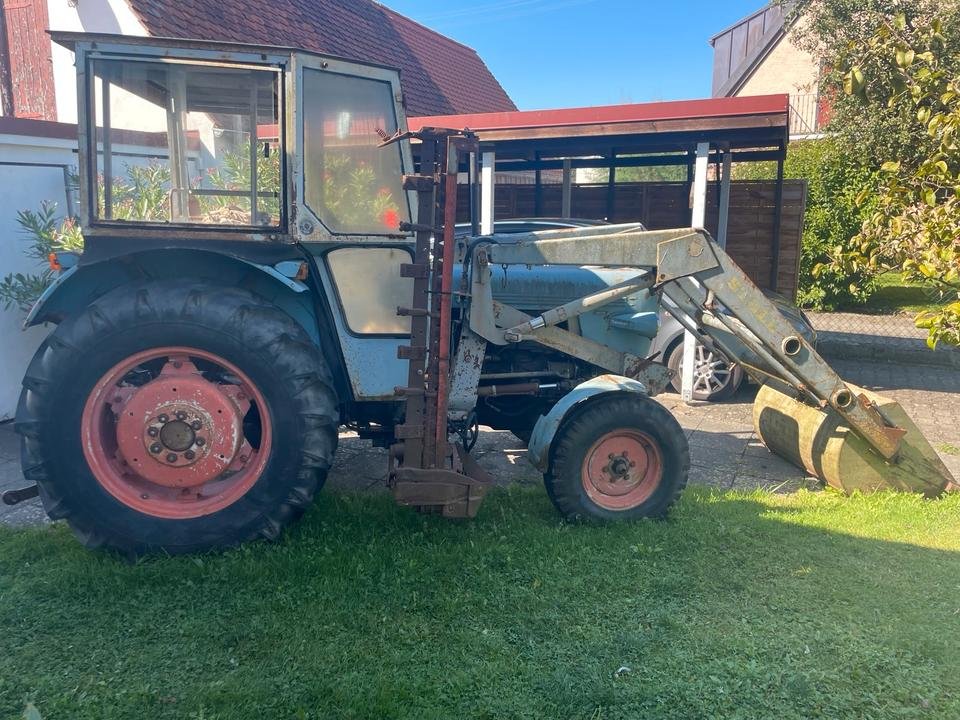

Eicher Mammut 3012 A
Built: 1969–1970 · Series: 3000er-Reihe
More machines from model year 1969
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Eicher 3000 series (Mammut) – range from Forchheim and Dingolfing of the 1960s and 1970s: four-cylinder diesel of 3,927 cm3, 45.4 to 47 kW, A four-wheel-drive version and HR equipment variant
The Mammut model family formed one of the larger ranges of the Eicher works in the 1960s and 1970s, a company founded in Forchheim in Upper Bavaria and which later also built tractors in Dingolfing. The four-digit type numbers such as 3012, 3019, 3020 and 3422 order the models within the range, the A suffix marks the four-wheel-drive version, and HR a separate equipment variant within the range. The name Mammut denoted Eicher's larger, more powerful models above the brand's compact tractors.
Read on 3 more paragraphs
The register lists here four versions with 45.4 to 47 kW from four-cylinder engines of 3,927 cm3 displacement. Unladen weight ranges from 2,825 to 3,140 kg, overall length from 3,550 to 3,600 mm, width from 1,900 to 1,970 mm and height from 1,680 to 1,700 mm. Rated speed sits at 2,000 rpm.
At just under 46 kW output, the Mammut 3000 series served the mid power segment of West German field tractors of the period, competing with comparable four-cylinder tractors from Fendt, Deutz and Massey Ferguson, which in the same years supplied mixed farms in Bavaria and beyond.
On these now-historic tractors, what counts is rust on the frame, mudguards and bonnet, the condition of the clutch and gearbox, the tightness of the hydraulics and lift linkage, and the function of the lighting system and cab instruments. Spare parts for the Eicher engines and gearboxes are today obtained mainly through specialist vintage-tractor dealers and Eicher clubs, which also offer reproduced wear parts.
Sources: SpecCodex register, model data: Eicher 3000er-Reihe
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 62 hp (45.4 kW)correct |
| Rated speed | 2,000 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,927 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 125 mmcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,550 mmcorrect |
|---|---|
| Width | 1,900 mmcorrect |
| Height | 1,680 mmcorrect |
| Wheelbase | 2,277 mmcorrect |
| Ground clearance | 280 mmcorrect |
| Unladen weight | 3,140 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8V / 4Rcorrect |
| Front tyres | 10, 5-18correct |
| Rear tyres | 14-30correct |
| Top speed | 20 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | 220correct |
Where this model stands
Power-to-weight ratio: 14.5 kW/t (45 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 43% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Eicher Mammut 3012 A have?
The Eicher Mammut 3012 A delivers 62 hp.
How much does the Eicher Mammut 3012 A weigh?
The unladen weight is 3,140 kg.
What engine does the Eicher Mammut 3012 A have?
4 cylinders, 3,927 cm³ displacement, Diesel.
How fast does the Eicher Mammut 3012 A go?
Top speed is 20 km/h.
What are the dimensions of the Eicher Mammut 3012 A?
3,550 mm × 1,900 mm × 1,680 mm.
When was the Eicher Mammut 3012 A built?
Production years: 1969–1970.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
