Eicher 3253 Königstiger 74 – specifications
Built: 1973–1978 · Series: 3000 (Königstiger 74)
The 3000 (Königstiger 74) series from Eicher includes the 3253 Königstiger 74. Production: 1973–1978. The engine delivers 45 hp (33 kW), has 3 cylinders, with a displacement of 2,460 cm³. Rated speed is 2,250 rpm. The machine is 3,195 mm long, 1,690 mm wide and 2,293 mm high. The unladen weight is 2,035 kg. The wheelbase measures 2,065 mm. Ground clearance is 380 mm. Top speed is 25 km/h. The engine is water-cooled. Tyres: front 6.00-19, rear 11-32. The fuel is diesel. Construction: frameless unit construction. The linkage is category I. The PTO runs at 540 rpm. Around 2002 units were built. Rated output across the Eicher range ranges from 11 to 145 hp; the 3253 Königstiger 74 sits in the lower part of that range with 45 hp. Its immediate neighbours are the Eicher 642 KA below it with 42 hp and the 3048 S above it with 48 hp. Rated output across the Eicher range ranges from 13 to 133 hp; here the 3253 Königstiger 74 sits in the lower part of that range with 45 hp. 196 Eicher models across 41 series are on record.
Data for the version built 1973–1978 · Data origin: Reference work (Wikipedia/Wikibooks) · sources
More machines from model year 1973
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

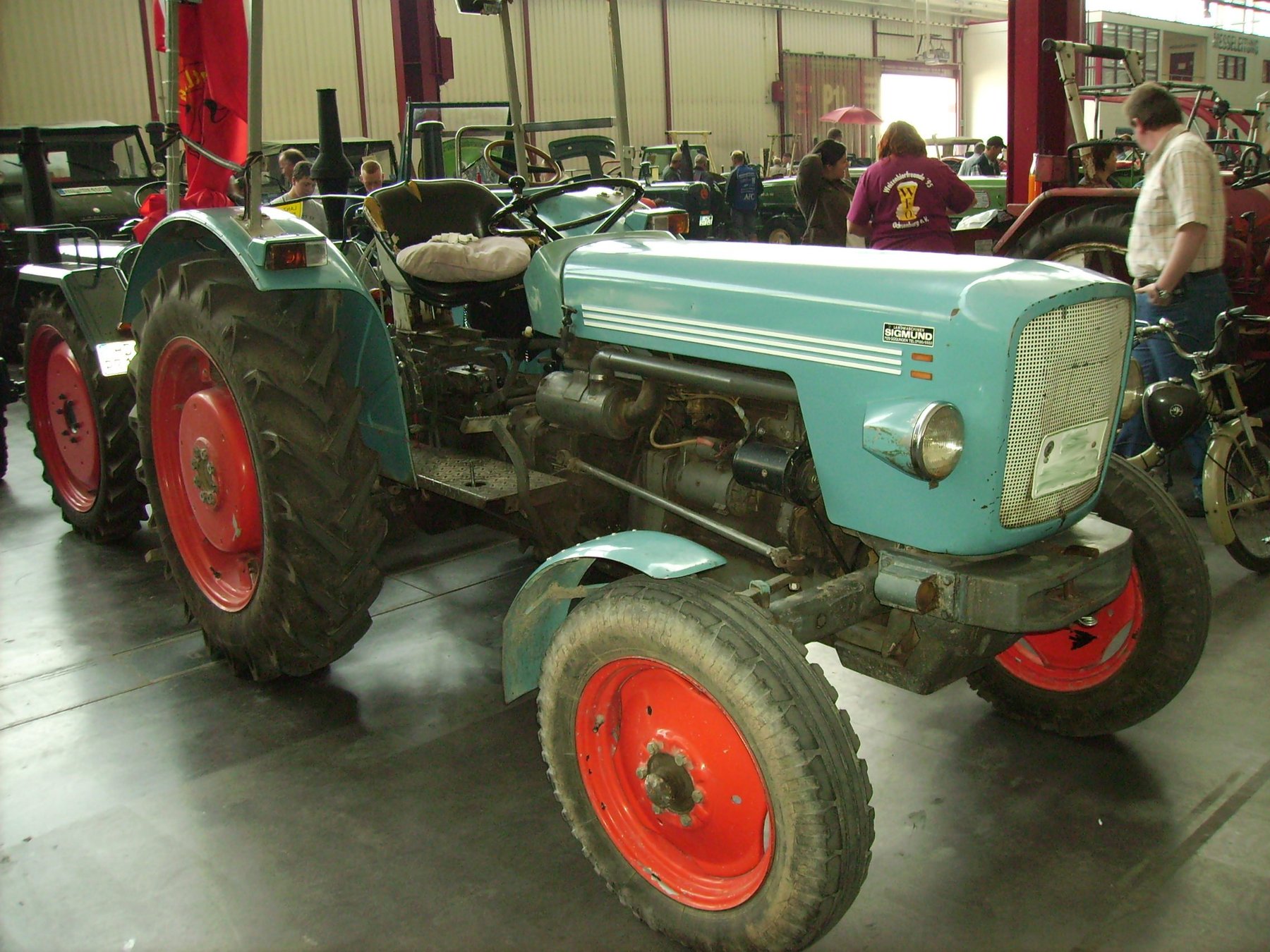

Eicher 3253 Königstiger 74 (3000 range, 1973–1978): water-cooled three-cylinder diesel with 2,460 cm³, 45 hp, or 33 kW, and a weight of 2,035 kg
Eicher was a Bavarian tractor manufacturer that marked many of its ranges with the names of big cats; Königstiger was among the best-known of these nicknames and usually denoted a more powerful version within a given range. The 3253 Königstiger 74 from the 3000 range was built from 1973 to 1978.
Read on 3 more paragraphs
The Eicher 3253 Königstiger 74 carries a water-cooled three-cylinder diesel engine with 2,460 cm³ of displacement, producing 45 hp, or 33 kW, at 2,250 rpm. At 2,035 kg, 3,195 mm long, 2,293 mm high, 1,690 mm wide and with a 2,065 mm wheelbase, the machine reaches a top speed of 25 km/h.
At 33 kW from a water-cooled three-cylinder engine, the Königstiger 74 ranks among the medium-sized farm tractors of its time, used for field work with a plough, harrow and lighter implements on farms. With a top speed of 25 km/h dictated by its design, the machine was intended for haulage runs between yard and field over shorter distances, not for brisk road travel.
When buying a tractor of this age used, the condition of the cooling system matters, since water-cooled engines after decades of use often develop leaking water pumps or scaled-up radiators. Also worth checking are the injection pump, the condition of the clutch, and corrosion damage to the frame, mudguards and sheet-metal parts, common on tractors of this build era.
Sources: SpecCodex-Register: Kennwerte des Modells Eicher 3253 Königstiger 74, Eicher (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (33 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,460 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,195 mmcorrect |
|---|---|
| Width | 1,690 mmcorrect |
| Height | 2,293 mmcorrect |
| Wheelbase | 2,065 mmcorrect |
| Ground clearance | 380 mmcorrect |
| Unladen weight | 2,035 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8/2-Getriebecorrect |
| Front tyres | 6.00-19correct |
| Rear tyres | 11-32correct |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frameless unit constructioncorrect |
|---|---|
| Units built | 2,002correct |
Other data
| Linkage category | Cat Icorrect |
|---|---|
| PTO speed | 540 rpmcorrect |
Frequently asked questions
Where this model stands
Power-to-weight ratio: 16.2 kW/t (33 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
