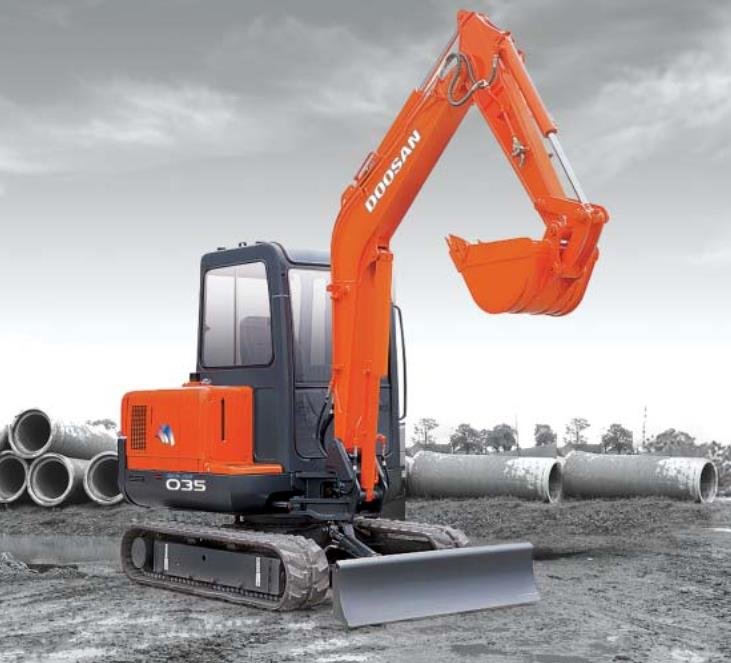

Doosan S035

Series: Doosan Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan Mini Excavator series from Doosan includes the S035. The engine delivers 25.1 hp (18 kW), has 3 cylinders, with a displacement of 1,468.3 cm³. Torque is 93.3 Nm. Rated speed is 1,950 rpm. The unladen weight is 3,284 kg. Ground clearance is 292.6 mm. The tank holds 35.2 litres. Maximum torque is reached at 1,700 rpm. The pump delivers 37.1 l/min. The hydraulic tank holds 62.1 litres. Working pressure is 195.8 bar. The cooling system holds 7.2 litres. The oil fill is 6.4 litres. The electrical system runs on 12 V. The engine fitted is the 3LD1. The Doosan Mini Excavator series covers 5 models. Rated output within it ranges from 25.1 to 27.6 hp; the S035 sits at the bottom of that range with 25.1 hp. Its immediate neighbours are the DX35Z above it with 27.6 hp. 314 Doosan models across 20 series are on record. The model is listed under Excavators & compaction. 19 verified figures from 1 source are on file.

Technical data

Engine

Engine model	3LD1correct
Power	25.1 hp (18 kW)correct
Rated speed	1,950 rpmcorrect
Torque	93.3correct
Speed at max. torque	1,700 rpmcorrect
Cylinders	3correct
Displacement	1,468.3 cm³correct
Aspiration	naturalcorrect
Coolant capacity	7.2 lcorrect
Engine oil capacity	6.4 lcorrect

Dimensions and weights

Ground clearance	292.6correct
Unladen weight	3,284 kgcorrect

Drivetrain and chassis

System voltage	12 Vcorrect

Working data

Pump flow	37.1 l/mincorrect
Hydraulic oil capacity	62.1 lcorrect
Hydraulic pressure	195.8 barcorrect
Fuel tank capacity	35.2 lcorrect

Other data

Height	2,340.9correct

Where this model stands

Power-to-weight ratio: 5.5 kW/t (18 kW / 3.3 t)

Stronger than 53% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan S035 have?

The Doosan S035 delivers 25.1 hp.

How much does the Doosan S035 weigh?

The unladen weight is 3,284 kg.

What engine does the Doosan S035 have?

3 cylinders, 1,468 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
