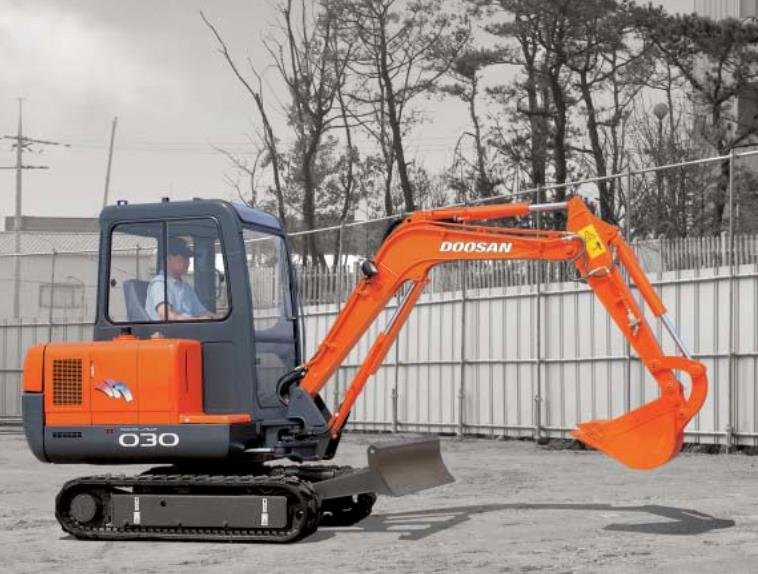

Doosan S030P

Series: Doosan Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The S030P from Doosan is part of the Doosan Mini Excavator series. The engine delivers 25.1 hp (18 kW), with a displacement of 1,468.3 cm³. Torque is 93.3 Nm. The unladen weight is 2,839.5 kg. Ground clearance is 280.4 mm. The tank holds 35.2 litres. The pump delivers 33.3 l/min. The hydraulic tank holds 53.4 litres. Working pressure is 196.4 bar. The cooling system holds 7.2 litres. The oil fill is 6.4 litres. The electrical system runs on 12 V. The engine fitted is the 3LD1. The Doosan Mini Excavator series covers 5 models. Rated output within it ranges from 25.1 to 27.6 hp; the S030P sits at the bottom of that range with 25.1 hp. Its immediate neighbours are the DX35Z above it with 27.6 hp. 314 Doosan models across 20 series are on record. The model is listed under Excavators & compaction. 16 verified figures from 1 source are on file.

Technical data

Engine

Engine model3LD1correct
Power25.1 hp (18 kW)correct
Torque93.3correct
Displacement1,468.3 cm³correct
Aspirationnaturalcorrect
Coolant capacity7.2 lcorrect
Engine oil capacity6.4 lcorrect

Dimensions and weights

Ground clearance280.4correct
Unladen weight2,839.5 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow33.3 l/mincorrect
Hydraulic oil capacity53.4 lcorrect
Hydraulic pressure196.4 barcorrect
Fuel tank capacity35.2 lcorrect

Other data

Height2,337.8correct

Where this model stands

Power-to-weight ratio: 6.3 kW/t (18 kW / 2.8 t)

Stronger than 53% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan S030P have?

The Doosan S030P delivers 25.1 hp.

How much does the Doosan S030P weigh?

The unladen weight is 2,840 kg.

What engine does the Doosan S030P have?

1,468 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
