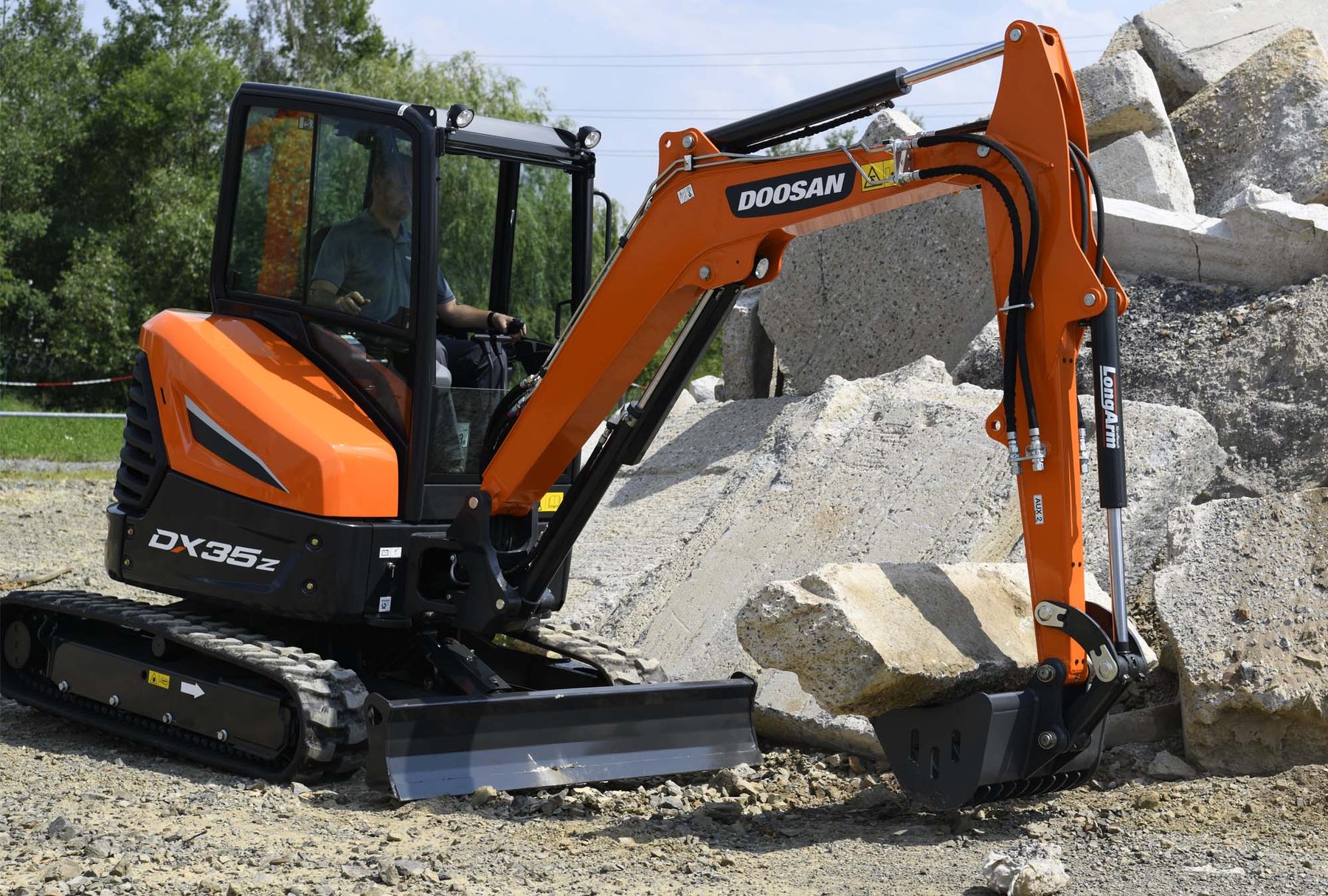

Doosan DX35Z

Series: Doosan Mini Excavator

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Doosan DX35Z is a model in the Doosan Mini Excavator series. The engine delivers 27.6 hp (19.5 kW), has 3 cylinders, with a displacement of 1,638.7 cm³. Torque is 110.1 Nm. Rated speed is 2,200 rpm. The unladen weight is 3,660 kg. Ground clearance is 310.9 mm. The tank holds 42 litres. Maximum torque is reached at 1,200 rpm. The pump delivers 77.2 l/min. The hydraulic tank holds 45 litres. Working pressure is 225 bar. The cooling system holds 5.3 litres. The oil fill is 6.4 litres. The electrical system runs on 12 V. The engine fitted is the 3TNV88. The Doosan Mini Excavator series covers 5 models. Rated output within it ranges from 25.1 to 27.6 hp; the DX35Z sits at the top of that range with 27.6 hp. Its immediate neighbours are the S035 below it with 25.1 hp. 314 Doosan models across 20 series are on record. The model is listed under Excavators & compaction. 18 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV88correct
Power27.6 hp (19.5 kW)correct
Rated speed2,200 rpmcorrect
Torque110.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders3correct
Displacement1,638.7 cm³correct
Coolant capacity5.3 lcorrect
Engine oil capacity6.4 lcorrect

Dimensions and weights

Ground clearance310.9correct
Unladen weight3,660 kgcorrect

Drivetrain and chassis

System voltage12 Vcorrect

Working data

Pump flow77.2 l/mincorrect
Hydraulic oil capacity45 lcorrect
Hydraulic pressure225 barcorrect
Fuel tank capacity42 lcorrect

Other data

Height2,517.6correct

Where this model stands

Power-to-weight ratio: 5.3 kW/t (20 kW / 3.7 t)

Stronger than 58% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Doosan DX35Z have?

The Doosan DX35Z delivers 27.6 hp.

How much does the Doosan DX35Z weigh?

The unladen weight is 3,660 kg.

What engine does the Doosan DX35Z have?

3 cylinders, 1,639 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
