Discovery Energy KSD-TCH 1403/30
Built: 2024-2026 · Series: KSD-TCH 1403
More machines from model year 2024
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

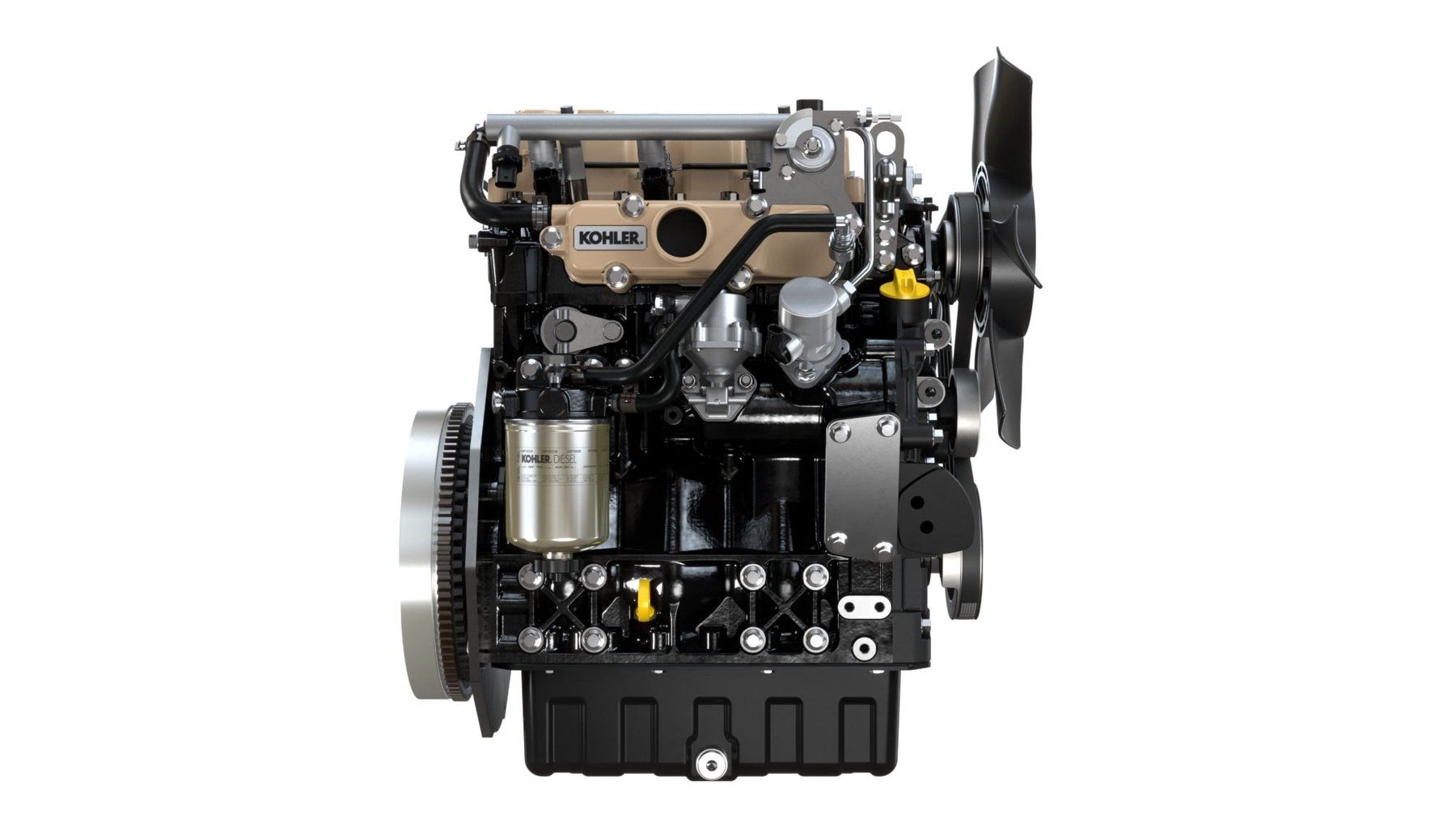

Discovery Energy KSD-TCH 1403 – three-cylinder diesel engine with waste-gate turbocharger: 18 kW rated output, 2,200 to 3,000 rpm, 105 Nm maximum torque, Tier 4 Final, model years 2024 to 2026
Discovery Energy distributes the small KSD-range diesel engines in the United States, which emerged from Kohler's engine business. The KSD-TCH 1403 version appears in the EPA certification data in five variants with the speed designations /22, /23, /24, /26 and /30, all fitted with a waste-gate turbocharger.
Read on 3 more paragraphs
The register lists here five versions with a uniform 18 kW rated output at 2,200 to 3,000 rpm. The three-cylinder inline engine measures 81 mm bore and 90 mm stroke, maximum torque stands constant at 105 Nm at 1,500 rpm. The engines are indirect-injection, certified to Tier 4 (Final or Phase-in), in the 8 to under 19 kW power category, with model years from 2024 to 2026.
Engines in this small power class drive compact construction machinery, small generators and stationary sets; the KSD-TCH version continues the certification of Discovery Energy's KSD range into the newer model years through 2026. In this power class the KSD engines compete with small diesels from Yanmar and Kubota fitted to similar equipment.
On a used purchase, operating hours and the service history of the injection pump count, along with the condition of the waste-gate turbocharger and charge-air ducting, the tightness of the radiator and intake tract, and compatibility with low-sulphur diesel fuel; parts supply runs through Discovery Energy's distribution network.
Sources: SpecCodex register, model data: Discovery Energy KSD-TCH 1403
Technical data
Engine
| Engine family | RKHXL01.4KSEcorrect |
|---|---|
| Engine families | RKHXL01.4KSE; TKHXL01.4KSE; SKHXL01.4KSEcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 18 kWcorrect |
| Power band | 8<=kW<19correct |
| Rated speed | 3,000 rpmcorrect |
| Maximum torque | 105 N·mcorrect |
| Speed at max. torque | 1,500 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 81 mmcorrect |
| Stroke | 90 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Built from | 2024correct |
|---|---|
| Built to | 2026correct |
| Model year from | 2024correct |
| Model year to | 2026correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Discovery Energy KSD-TCH 1403/30 have?
The Discovery Energy KSD-TCH 1403/30 delivers 18 kW.
When was the Discovery Energy KSD-TCH 1403/30 built?
Production years: 2024-2026.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
