Discovery Energy KSD-TCA 1403/22
Built: 2023 · Series: KSD-TCA 1403
More machines from model year 2023
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

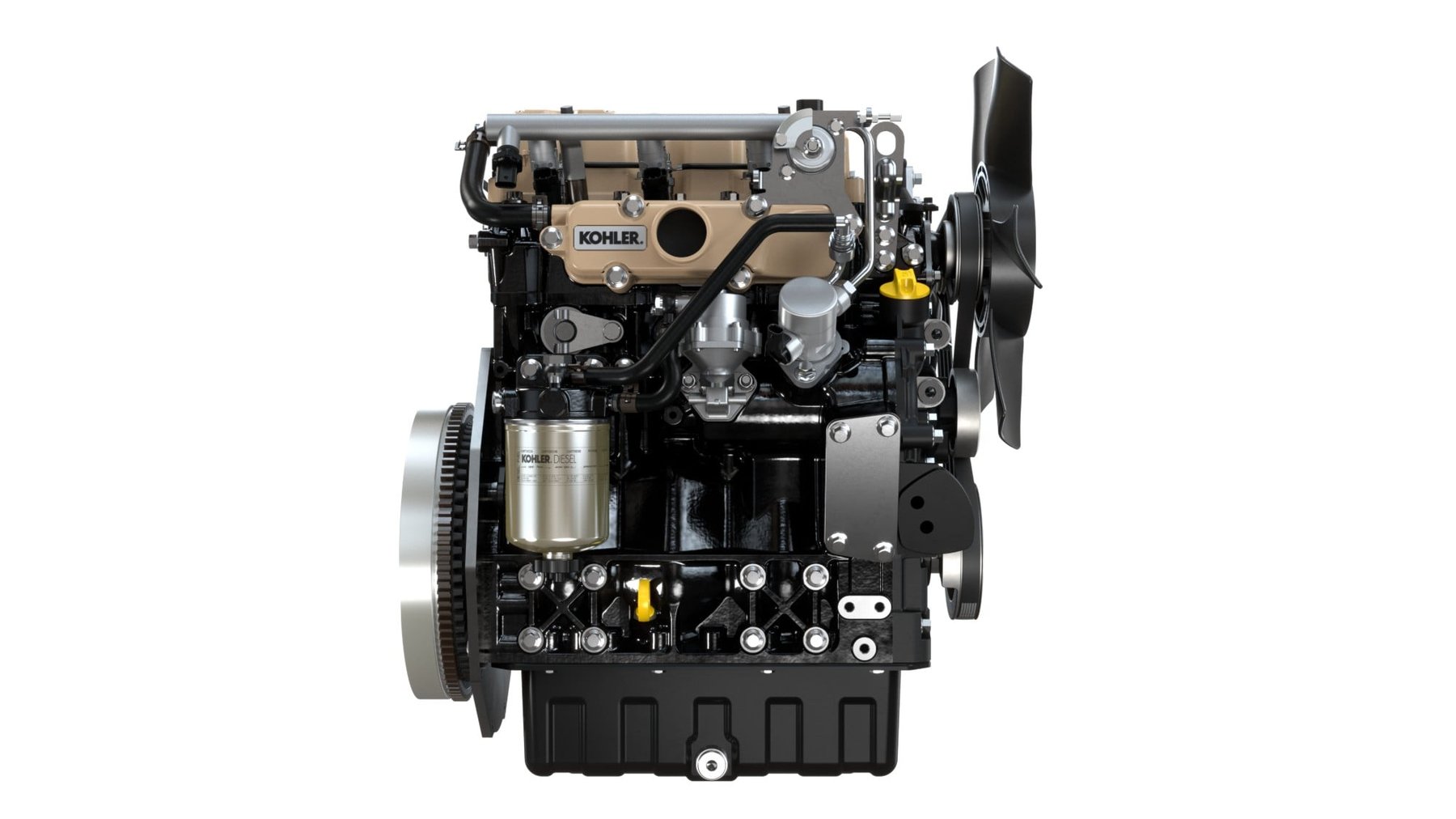

Discovery Energy KSD-TCA 1403 – three-cylinder diesel engine with waste-gate turbocharger: 18 kW rated output, 2,200 to 3,000 rpm, 81 mm bore, Tier 4 Final, model year 2023
Discovery Energy distributes the small KSD-range diesel engines in the United States, which emerged from Kohler's engine business. The KSD-TCA 1403 version appears in the EPA certification data in five variants with the speed designations /22, /23, /24, /26 and /30, all fitted with a waste-gate turbocharger.
Read on 3 more paragraphs
The register lists here five versions with a uniform 18 kW rated output at 2,200 to 3,000 rpm. The three-cylinder inline engine measures 81 mm bore and 90 mm stroke, maximum torque stands constant at 120 Nm at 1,400 rpm. The engines are indirect-injection, certified to Tier 4 (Final or Phase-in), in the 8 to under 19 kW power category, model year 2023.
Engines in this small power class drive compact construction machinery, small generators and stationary sets; with the KSD range, Discovery Energy continues the small-diesel-engine business previously run under the Kohler brand. In this power class the KSD engines compete with small diesels from Yanmar and Kubota fitted to similar equipment.
On a used purchase, operating hours and the service history of the injection pump count, along with the condition of the waste-gate turbocharger and charge-air ducting, the tightness of the radiator and intake tract, and compatibility with low-sulphur diesel fuel; parts supply runs through Discovery Energy's distribution network.
Sources: SpecCodex register, model data: Discovery Energy KSD-TCA 1403
Technical data
Engine
| Engine family | PKHXL01.4KSDcorrect |
|---|---|
| Engine families | PKHXL01.4KSDcorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 18 kWcorrect |
| Power band | 8<=kW<19correct |
| Rated speed | 2,200 rpmcorrect |
| Maximum torque | 120 N·mcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 3correct |
| Cylinder layout | in linecorrect |
| Bore | 81 mmcorrect |
| Stroke | 90 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | indirect injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | wastegate turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 4 (Final or Phase In)correct |
Origin and approval
| Built from | 2023correct |
|---|---|
| Built to | 2023correct |
| Model year from | 2023correct |
| Model year to | 2023correct |
| Sales region | bothcorrect |
Frequently asked questions
How much power does the Discovery Energy KSD-TCA 1403/22 have?
The Discovery Energy KSD-TCA 1403/22 delivers 18 kW.
When was the Discovery Energy KSD-TCA 1403/22 built?
Production years: 2023.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 25 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
