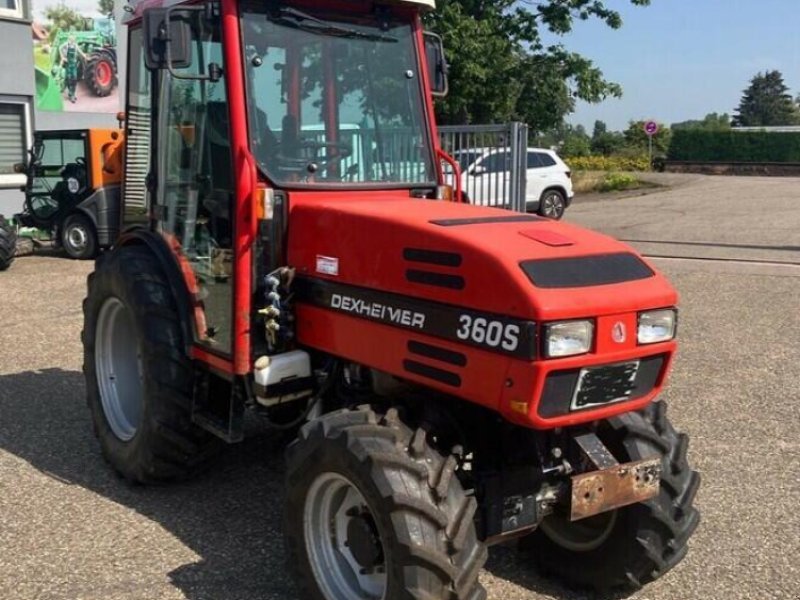

Dexheimer 360 Si
Built: 1995–2001 · Series: 300 Si
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Dexheimer 300 Si – 360 Si and 380 Si: narrow-built three-cylinder tractors at 44 to 55 kW, 3,117 cc displacement and 2,200 to 2,290 kg
The Si range from Dexheimer includes the 360 Si and 380 Si listed here, which differ in power step but share the same three-cylinder diesel engine of 3,117 cc displacement. A defining feature of the Si range is its narrow build, with a comparatively tight track width paired with a tall overall stance.
Read on 3 more paragraphs
The register lists 2 variants with 44 to 55 kW, or 60 to 75 hp, from three-cylinder engines of 3,117 cc displacement at a rated speed of 2,200 to 2,250 rpm. Unladen weights fall between 2,200 and 2,290 kg, with dimensions of 3,300 mm in length, 1,170 mm in width and 2,250 mm in height.
With its narrow build and comparatively tall stance, the Si range suits work in confined spaces, such as row crops, orchards or narrow yard passages, while still offering a punchy three-cylinder engine for pulling and haulage work. The two power steps, 360 and 380, allow the range to be matched to farm size without giving up the narrow track.
When buying used, check clutch and gearbox for wear, along with the hydraulic pump for adequate delivery pressure. Given the narrow track and tall build, steering and axle kingpins deserve particular attention, as this layout sees greater strain in practical use. Rust on wings and bonnet should also be checked, along with the condition of the exhaust stack and footboards, and any signs of welding repairs around the axle mounts that would point to earlier structural damage.
Sources: SpecCodex register, model data: Dexheimer 300 Si
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 60 hp (44 kW)correct |
| Rated speed | 2,250 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,117 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,300 mmcorrect |
|---|---|
| Width | 1,170 mmcorrect |
| Height | 2,250 mmcorrect |
| Wheelbase | 1,930 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 2,200 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 12/12correct |
| Front tyres | 9.0/75-16correct |
| Rear tyres | 320/70 R 24correct |
| Top speed | 32 km/hcorrect |
Working data
| Fuel tank capacity | 74 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| PTO speed | 540/750/1000 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 20 kW/t (44 kW / 2.2 t)
Power class: Universal (40–100 hp)
Stronger than 41% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Dexheimer 360 Si have?
The Dexheimer 360 Si delivers 60 hp.
How much does the Dexheimer 360 Si weigh?
The unladen weight is 2,200 kg.
What engine does the Dexheimer 360 Si have?
3 cylinders, 3,117 cm³ displacement, Diesel.
How fast does the Dexheimer 360 Si go?
Top speed is 32 km/h.
What are the dimensions of the Dexheimer 360 Si?
3,300 mm × 1,170 mm × 2,250 mm.
When was the Dexheimer 360 Si built?
Production years: 1995–2001.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
