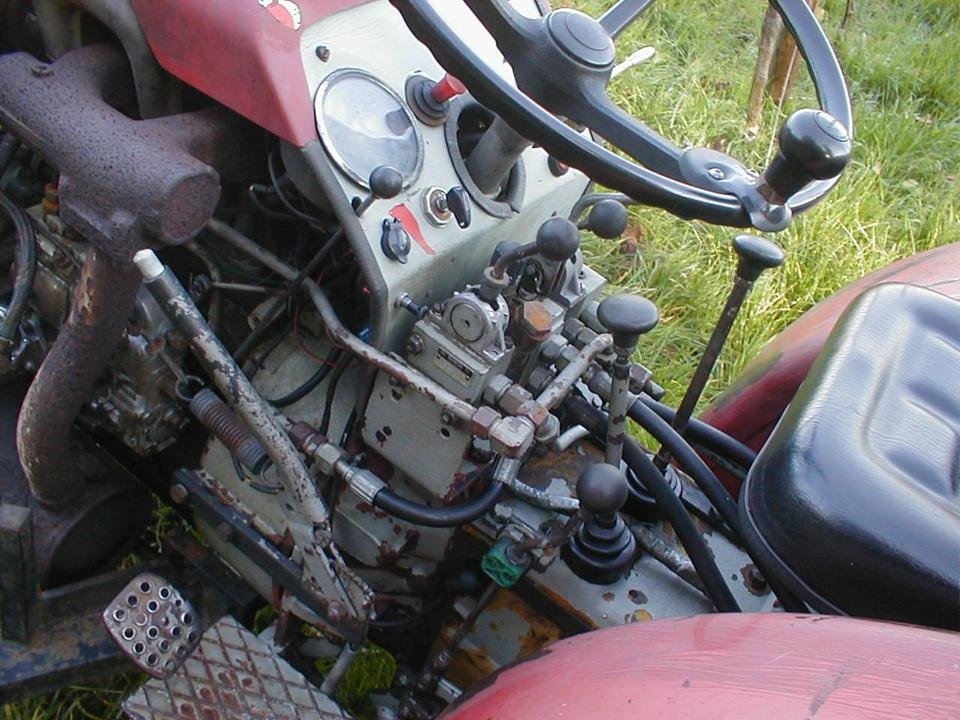

Dexheimer ALLRAD 240 SK
Built: 1976–1985 · Series: 240
More machines from model year 1976
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Dexheimer 240 – the vineyard tractor from Dexheim: ALLRAD and HINTERRAD 240, two-cylinder diesel with 26 kW/35 hp, only 930 mm wide for row-crop vineyard work
Dexheimer, from the Rheinhessen wine village of Dexheim, built the narrow 240 as a specialist tractor for steep slopes and vine-row work. This page covers the three versions ALLRAD 240, ALLRAD 240 SK and HINTERRAD 240, which differ mainly in drive layout: the two four-wheel-drive variants for extra traction on slopes, and the rear-wheel-drive version as a simpler, lighter option.
Read on 3 more paragraphs
The register lists 3 versions here with a uniform 26 kW (35 hp) from a two-cylinder diesel engine of 1,885 cc displacement at 2,500 rpm. Kerb weight ranges from 1,280 to 1,420 kg, length from 2,360 to 2,500 mm, width stays a constant 930 mm across all models, and height ranges from 1,930 to 1,950 mm.
The narrow width of under a metre makes the Dexheimer 240 range typical of the narrow-track vineyard tractors that have to manoeuvre between closely spaced vine rows without damaging vines or wire trellises. Specialist tractors like this competed in viticulture with similarly narrow models from other makers and were mostly sold regionally within the wine-growing areas.
When buying a used Dexheimer 240, check the condition of the steering knuckles and steering after hard use on slopes, wear on the clutch and brakes, the tightness of the hydraulics for mounted implements, and corrosion on the frame and bodywork from contact with plant-protection products. Spare parts for such a small, regionally sold maker are generally only available through specialist vineyard-tractor mechanics and collector circles.
Sources: SpecCodex register, model data: Dexheimer 240
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 35 hp (26 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 2correct |
| Displacement | 1,885 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 2,360 mmcorrect |
|---|---|
| Width | 930 mmcorrect |
| Height | 1,930 mmcorrect |
| Wheelbase | 1,580 mmcorrect |
| Ground clearance | 320 mmcorrect |
| Unladen weight | 1,400 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 8/2correct |
| Front tyres | 7.00-12 AScorrect |
| Rear tyres | 9.5-20 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 27 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Other data
| PTO speed | 540/1000 rpmcorrect |
|---|
Where this model stands
Power-to-weight ratio: 18.6 kW/t (26 kW / 1.4 t)
Power class: Compact (< 40 hp)
Stronger than 21% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Dexheimer ALLRAD 240 SK have?
The Dexheimer ALLRAD 240 SK delivers 35 hp.
How much does the Dexheimer ALLRAD 240 SK weigh?
The unladen weight is 1,400 kg.
What engine does the Dexheimer ALLRAD 240 SK have?
2 cylinders, 1,885 cm³ displacement, Diesel.
How fast does the Dexheimer ALLRAD 240 SK go?
Top speed is 25 km/h.
What are the dimensions of the Dexheimer ALLRAD 240 SK?
2,360 mm × 930 mm × 1,930 mm.
When was the Dexheimer ALLRAD 240 SK built?
Production years: 1976–1985.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
