Deutz/fendt D 5006 V/VA
Built: 5/1974 · Series: D-06
More machines from model year 1974
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

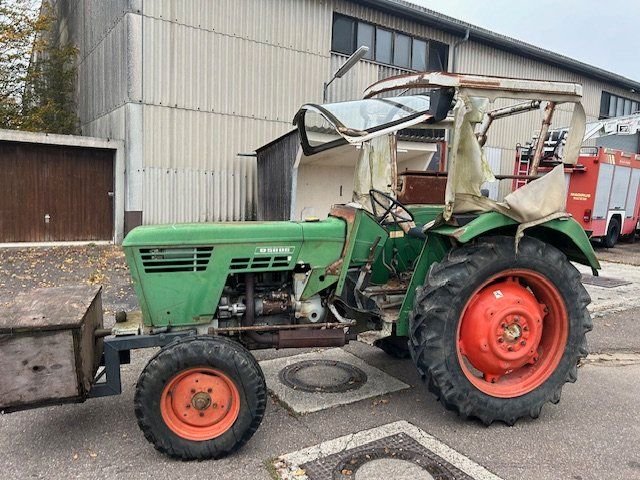

Deutz D 5006 V/VA: narrow vineyard tractor from May 1974 with an air-cooled 2.8-litre three-cylinder engine, 32.9 kW and a width of 950 mm
The D 5006 V/VA belongs to Deutz's D-06 series, built in the 1970s in several power grades; this version was built from May 1974. On Deutz tractors of that period, the V suffix denotes the narrow vineyard version.
Read on 3 more paragraphs
The air-cooled three-cylinder diesel engine with 2,826 cm³ of displacement produces 45 hp, or 32.9 kW, at 2,300 rpm. At just 1,540 kg, 950 mm wide and 1,265 mm high, the machine is markedly narrower and lower than an ordinary field tractor of the same output; with a 1,890 mm wheelbase it reaches a top speed of 25 km/h.
The narrow, low build, only 950 mm wide, is typical of tractors that have to move between tight rows of vines in vineyards or in narrow orchards, where an ordinarily wide field tractor would not fit. The air-cooled three-cylinder engine still delivers enough power without widening the slim build with a liquid-cooling circuit.
When buying a narrow vineyard tractor of this age used, the condition of the steering and front axle matters, as they are built for the tight turning circle needed between rows of vines, along with the cooling fan and cylinder fins of the air-cooled engine. Also worth checking are the clutch, brakes and possible damage to the narrow bodywork from contact with vines or branches, as well as corrosion on the thin sheet metal typical of this era.
Sources: SpecCodex-Register: Kennwerte des Modells D 5006 V/VA
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 45 hp (32.9 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,826 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 120 mmcorrect |
| Injection pressure | 175 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,180 mmcorrect |
|---|---|
| Width | 950 mmcorrect |
| Height | 1,265 mmcorrect |
| Wheelbase | 1,890 mmcorrect |
| Ground clearance | 300 mmcorrect |
| Unladen weight | 1,540 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/4Rcorrect |
| Front tyres | 5.00-16 ASF (A: 6.00-16 AS)correct |
| Rear tyres | 10-24 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 21.4 kW/t (33 kW / 1.5 t)
Power class: Universal (40–100 hp)
Stronger than 28% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz/fendt D 5006 V/VA have?
The Deutz/fendt D 5006 V/VA delivers 45 hp.
How much does the Deutz/fendt D 5006 V/VA weigh?
The unladen weight is 1,540 kg.
What engine does the Deutz/fendt D 5006 V/VA have?
3 cylinders, 2,826 cm³ displacement, Diesel.
How fast does the Deutz/fendt D 5006 V/VA go?
Top speed is 25 km/h.
What are the dimensions of the Deutz/fendt D 5006 V/VA?
3,180 mm × 950 mm × 1,265 mm.
When was the Deutz/fendt D 5006 V/VA built?
Production years: 5/1974.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
