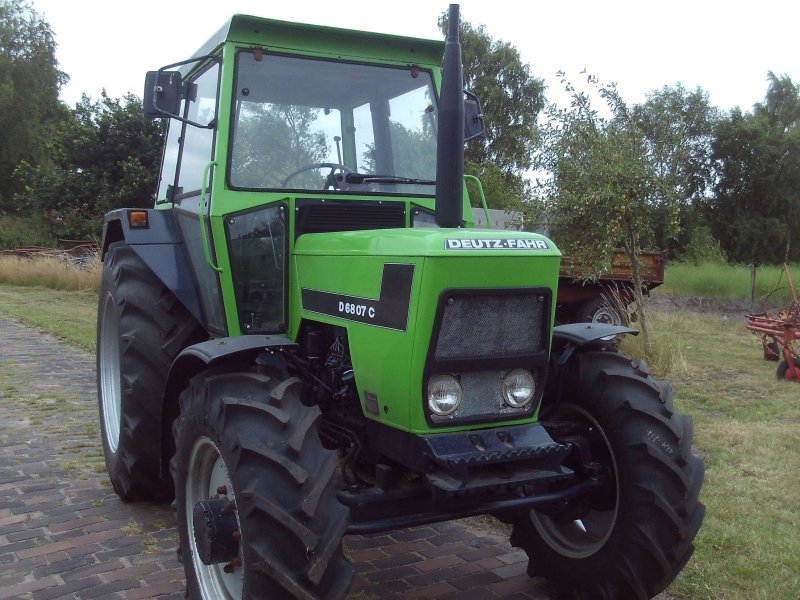

Deutz-Fahr D 6807 (C)

Built: 1981–1982 · Series: Serie 07

More machines from model year 1981

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Deutz-Fahr D 6807 (C) belongs to the 07 series. Production: 1981–1982. The engine delivers 67 hp (49 kW), has 4 cylinders, with a displacement of 3,768 cm³. Torque is 238 Nm. Rated speed is 2,300 rpm. The machine is 3,760 mm long, 1,990 mm wide and 2,560 mm high. The unladen weight is 2,860 kg. The wheelbase measures 2,170 mm. Ground clearance is 480 mm. Top speed is 25 km/h. Transmission: 12V / 4R. The engine is air-cooled. Tyres: front 7,50-20 ASF (A: 12.4-24 AS), rear 16.9-34 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. The compression ratio is 17:1. Maximum torque is reached at 1,602 rpm. Injection pressure is 175 bar. Around Blockbauweise units were built. Rated output across the Deutz-Fahr range ranges from 29 to 305 hp; the D 6807 (C) sits at the bottom of that range with 67 hp. Its immediate neighbours are the DX 3.60 below it with 65 hp and the Agroplus 70 above it with 70 hp. Rated output across the Deutz-Fahr range ranges from 21 to 225 kW; here the D 6807 (C) sits at the bottom of that range with 49 kW. 692 Deutz-Fahr models across 50 series are on record.

Deutz D 6807 (C): air-cooled tractor from the 07 series built 1981 to 1982 with a 3.8-litre four-cylinder engine, 49 kW and a 25 km/h top speed

The 07 series comprised air-cooled Deutz tractors from the early 1980s; the D 6807 (C) was built from 1981 to 1982. The type designation followed the naming logic usual at Deutz, where the number roughly matches the engine's output in hp.

Read on 3 more paragraphs

The air-cooled four-cylinder diesel engine with 3,768 cm³ of displacement produces 67 hp, or 49 kW, at 2,300 rpm, with 238 Nm of torque. At 2,860 kg, 3,760 mm long, 2,560 mm high, 1,990 mm wide and with a 2,170 mm wheelbase, top speed is limited to 25 km/h.

With 49 kW and a chassis limited to 25 km/h, the D 6807 (C) was a pure field-and-yard tractor for tilling small to medium fields with a plough or cultivator and for transport work with a trailer or forage wagon around the farm, rather than for brisk road travel. At 238 Nm at 2,300 rpm, torque was only slightly below that of the more powerful D 7007 and was enough for the usual power-take-off work at the 540 rpm standard.

When buying a used air-cooled Deutz four-cylinder from these years, the condition of the cooling fan and cylinder fins matters, along with oil consumption at high hours. Also worth checking are the clutch, gearbox and brakes, as well as corrosion on the frame and sheet-metal parts, which can be well advanced on machines of this age. The valve-cover gaskets and the mounting of the cooling fan are worth adding to the list too, since faults there cause follow-on damage faster on an air-cooled engine with no water circuit.

Sources: SpecCodex-Register: Kennwerte des Modells D 6807 (C), Deutz-Fahr (manufacturer)

Technical data

Engine

Fueldieselcorrect
Power67 hp (49 kW)correct
Rated speed2,300 rpmcorrect
Torque238 Nmcorrect
Speed at max. torque1,602 rpmcorrect
Cylinders4correct
Displacement3,768 cm³correct
Bore100 mmcorrect
Stroke120 mmcorrect
Compression ratio17correct
Injection pressure175 barcorrect
Coolingair-cooledcorrect

Dimensions and weights

Length3,760 mmcorrect
Width1,990 mmcorrect
Height2,560 mmcorrect
Wheelbase2,170 mmcorrect
Ground clearance480 mmcorrect
Unladen weight2,860 kgcorrect

Drivetrain and chassis

Driverear- or four-wheel drivecorrect
Gearbox12V / 4Rcorrect
Front tyres7, 50-20 ASF (A: 12.4-24 AS)correct
Rear tyres16.9-34 AScorrect
Top speed25 km/hcorrect

Origin and approval

Units builtunit construction (no separate frame)correct

Where this model stands

Power-to-weight ratio: 17.1 kW/t (49 kW / 2.9 t)

Power class: Universal (40–100 hp)

Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Deutz-Fahr D 6807 (C) have?

The Deutz-Fahr D 6807 (C) delivers 67 hp.

How much does the Deutz-Fahr D 6807 (C) weigh?

The unladen weight is 2,860 kg.

What engine does the Deutz-Fahr D 6807 (C) have?

4 cylinders, 3,768 cm³ displacement, Diesel.

How fast does the Deutz-Fahr D 6807 (C) go?

Top speed is 25 km/h.

What are the dimensions of the Deutz-Fahr D 6807 (C)?

3,760 mm × 1,990 mm × 2,560 mm.

When was the Deutz-Fahr D 6807 (C) built?

Production years: 1981–1982.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
