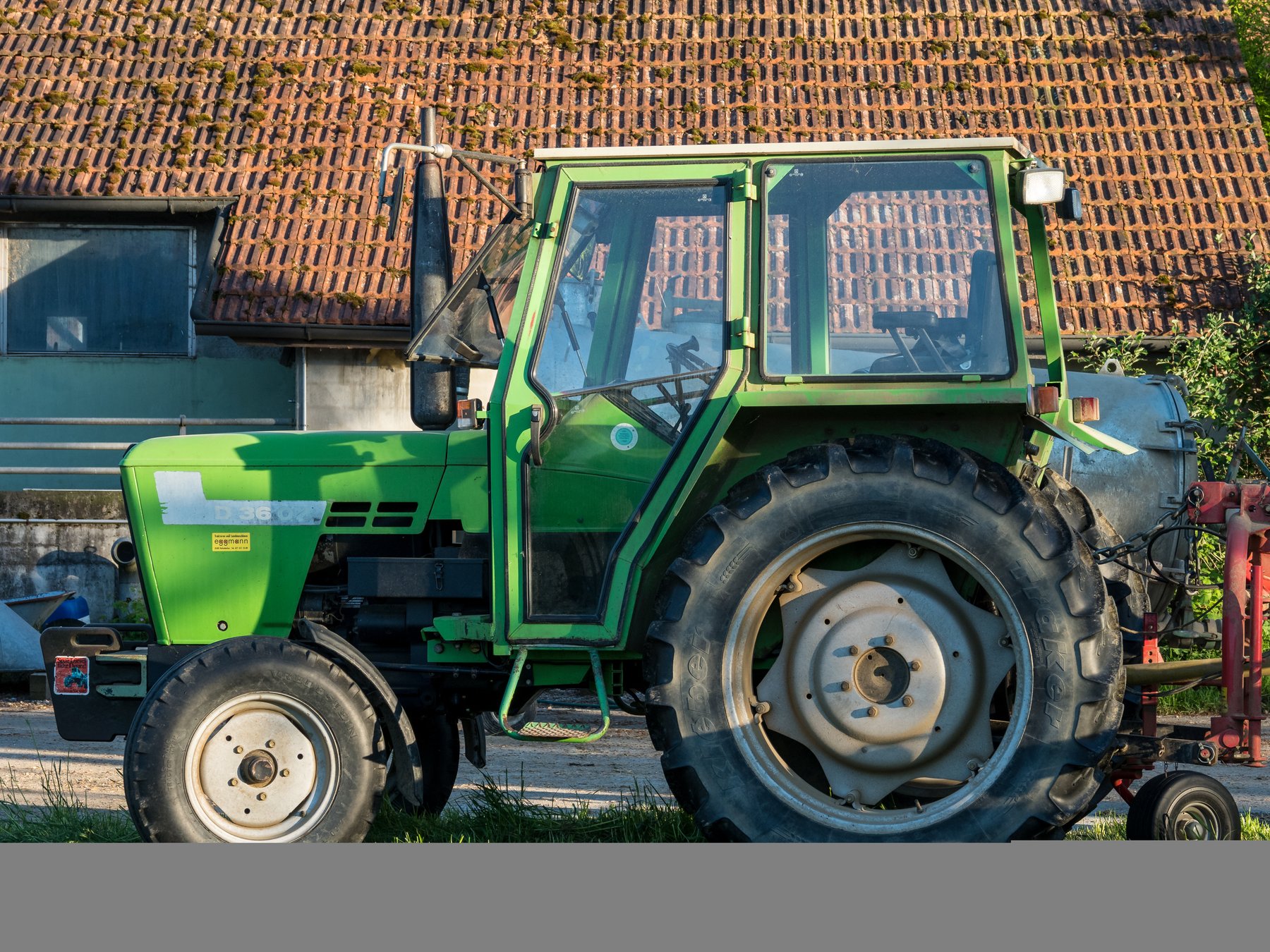

Deutz-Fahr D 3607
Built: 1982–1988 · Series: D 07
More machines from model year 1982
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr D 07 – Air-Cooled Tractors of the 1980s: two- to four-cylinder diesels with 21 to 51 kW, 1,884 to 3,768 cm³ displacement, model years 1980 to 1990
The D 07 series was built by Deutz-Fahr in the 1980s, with recorded models spanning 1980 to 1990. According to the register, output ranges from 21 to 51 kW, using two- to four-cylinder engines with displacement from 1,884 to 3,768 cm³.
Read on 3 more paragraphs
Recorded operating weight runs from 1,840 to 2,920 kg, wheelbase from 1,865 to 2,414 mm, and top speed of the listed models spans 25 to 30 km/h. Some models carry the C suffix, which at Deutz-Fahr indicates a comfort or cabbed version.
The D 07 series targeted smaller and medium farms and sat in the range alongside the larger DX series. For a used model, check the cab version and the condition of the air-cooled engine, which can overheat faster if the cooling air ducting has been neglected.
Air-cooled Deutz engines dispense entirely with coolant, radiator, water pump and antifreeze; a fan forces cooling air across fins on the cylinders and head. This avoids radiator damage and frost risk but requires an intact fan shroud and clean cooling fins, since dust and chaff settling there reduce cooling. Tractors in this power class typically used a 540 rpm PTO speed and a category I three-point hitch, matching the smaller and medium implements of the period. Category I under ISO 730 applies to tractors up to around 55 kW and, besides pin spacing, also sets the permissible lift force at the upper coupling points, which was sufficient for the smaller implements of that period.
Sources: SpecCodex register, model data: Deutz-Fahr D 07, Deutz-Fahr
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 34 hp (25 kW)correct |
| Rated speed | 2,300 rpmcorrect |
| Torque | 117 Nmcorrect |
| Cylinders | 2correct |
| Displacement | 1,884 cm³correct |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,330 mmcorrect |
|---|---|
| Width | 1,600 mmcorrect |
| Height | 2,350 mmcorrect |
| Wheelbase | 1,865 mmcorrect |
| Ground clearance | 460 mmcorrect |
| Unladen weight | 1,930 kgcorrect |
Drivetrain and chassis
| Drive | rear-wheel drivecorrect |
|---|---|
| Gearbox | 8V / 2Rcorrect |
| Forward gears | 8correct |
| Reverse gears | 2correct |
| Front tyres | 7.50-16 ASFcorrect |
| Rear tyres | 14.9-28 AScorrect |
| Top speed | 25 km/hcorrect |
Working data
| Fuel tank capacity | 70 lcorrect |
|---|
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|---|
| Units built | ca. 11.800correct |
Other data
| Linkage category | Cat Icorrect |
|---|
Where this model stands
Power-to-weight ratio: 13 kW/t (25 kW / 1.9 t)
Power class: Compact (< 40 hp)
Stronger than 20% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr D 3607 have?
The Deutz-Fahr D 3607 delivers 34 hp.
How much does the Deutz-Fahr D 3607 weigh?
The unladen weight is 1,930 kg.
What engine does the Deutz-Fahr D 3607 have?
2 cylinders, 1,884 cm³ displacement, Diesel.
How fast does the Deutz-Fahr D 3607 go?
Top speed is 25 km/h.
What are the dimensions of the Deutz-Fahr D 3607?
3,330 mm × 1,600 mm × 2,350 mm.
When was the Deutz-Fahr D 3607 built?
Production years: 1982–1988.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
