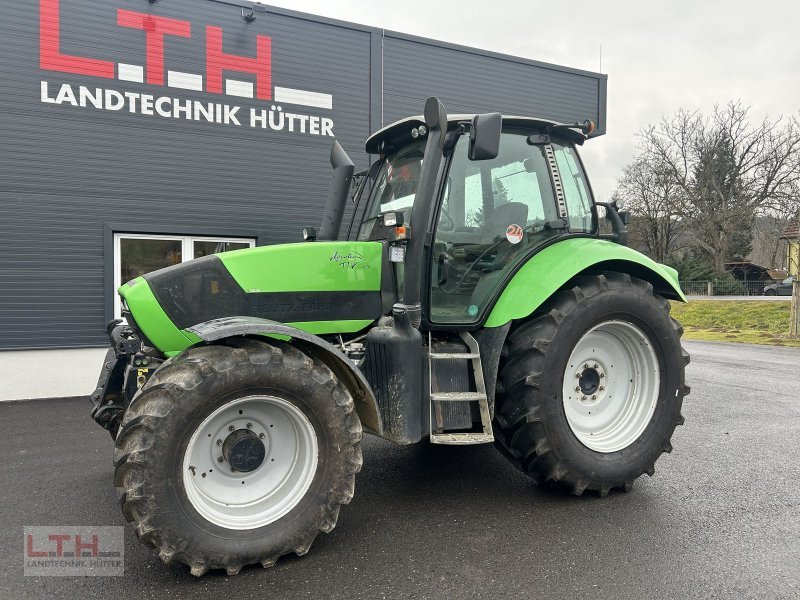

Deutz-Fahr Agrotron TTV 610
Built: 2007–today · Series: Agrotron TTV
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrotron TTV 610 to TTV 1160 – the stepless six-cylinders from Lauingen: TTV for the stepless transmission, the number as series and power step, Deutz six-cylinders of 6.06 and 7.15 litres, 92 to 149 kW
The Agrotron TTV is Deutz-Fahr's tractor with stepless transmission – presented in 2001 as the answer to Fendt's Vario, with a transmission from ZF that the brand from Lauingen on the Danube designated TTV (Total Torque Variable). The type logic shows two generations: the three-digit TTV 610, 620 and 630 of the 2000s give the series in the first digit and the power step in the last (610 about 165 hp, 630 about 200 hp); the four-digit TTV 1130, 1145 and 1160 of the early 2000s are the first TTV generation with 1 as range identifier and the last digits as power (1160 about 160 hp). The engines are Deutz six-cylinders from Cologne – the 1013 series of 7.15 litres in the 1100s, the TCD 2012 series of 6.06 litres in the 600s, at 2,100 to 2,300 rpm, with approval for biodiesel as the register notes – and the TTV transmission with four mechanical ranges and hydrostatic power split.
Read on 3 more paragraphs
The register lists 6 versions with 92 to 149 kW from six-cylinders of 6,057 to 7,146 cm³, torque from 530 to 851 Nm, a lift capacity up to 9,200 kg, unladen weights from 6,525 to 7,225 kg, lengths from 4,730 to 4,807 mm, widths from 2,480 to 2,720 mm and heights from 2,975 to 3,157 mm.
The Agrotron TTV was, after the Fendt Vario, Europe's second stepless standard tractor and made Deutz-Fahr a competitor of Fendt, John Deere and Claas in the class over 150 hp; the 6, 7 and 9 TTV ranges have continued it since 2013.
On used tractors, operating hours, Deutz engine and injection, TTV transmission (oil history, calibration, noises), front-axle and cab suspension, hydraulics and electronics count; parts run through SDF and Deutz.
Sources: SpecCodex register, model data: Deutz-Fahr Agrotron TTV, Deutz-Fahr (SDF, Hersteller, Lauingen)
Technical data
Engine
| Fuel | Diesel, Biodiesel (B100)correct |
|---|---|
| Power | 157 hp (115 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 606 Nmcorrect |
| Cylinders | 6correct |
| Displacement | 6,057 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 4,757 mmcorrect |
|---|---|
| Width | 2,500 mmcorrect |
| Height | 2,997 mmcorrect |
| Wheelbase | 2,767 mmcorrect |
| Ground clearance | 570 mmcorrect |
| Unladen weight | 6,525 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | stufenloses TTV-Getriebecorrect |
| Front tyres | 16.9 R 28correct |
| Rear tyres | 20.8 R 38correct |
| Top speed | 50 km/hcorrect |
Working data
| Lifting capacity | 9,200 kgcorrect |
|---|---|
| Fuel tank capacity | 300 lcorrect |
Origin and approval
| Construction | Standardtraktorcorrect |
|---|
Other data
| Linkage category | Cat II/IIIcorrect |
|---|
Where this model stands
Power-to-weight ratio: 17.6 kW/t (115 kW / 6.5 t)
Power class: Large (100–180 hp)
Stronger than 85% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr Agrotron TTV 610 have?
The Deutz-Fahr Agrotron TTV 610 delivers 157 hp.
How much does the Deutz-Fahr Agrotron TTV 610 weigh?
The unladen weight is 6,525 kg.
What engine does the Deutz-Fahr Agrotron TTV 610 have?
6 cylinders, 6,057 cm³ displacement, Diesel, Biodiesel (B100).
How fast does the Deutz-Fahr Agrotron TTV 610 go?
Top speed is 50 km/h.
How much does the rear linkage of the Deutz-Fahr Agrotron TTV 610 lift?
The rear linkage lifts 9,200 kg.
What are the dimensions of the Deutz-Fahr Agrotron TTV 610?
4,757 mm × 2,500 mm × 2,997 mm.
When was the Deutz-Fahr Agrotron TTV 610 built?
Production years: 2007–heute.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
