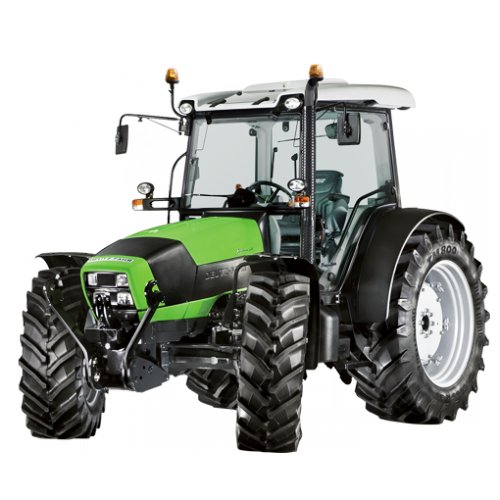

Deutz-Fahr Agrofarm 430
Built: 2008 · Series: Agrofarm
More machines from model year 2008
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr Agrofarm 85 to 430 TTV – the SDF group's entry range: DT for four-wheel drive, TTV for the stepless transmission, a 4.0-litre four-cylinder throughout, 60 to 80 kW, 4.05 to 4.73 t
Agrofarm is the simple, compact range below the Agrotron in Deutz-Fahr's line-up, which has belonged since 1995 to the Italian SDF group (Same Deutz-Fahr), headquartered in Treviso with its plant in Lauingen an der Donau. The models target smaller and medium farms and contractors looking for a rugged, low-maintenance all-rounder without electronic ballast. The type logic: the number gives roughly the power class in hp – Agrofarm 85 the smallest, Agrofarm 410 to 430 the larger versions – DT marks double traction, that is four-wheel drive, GS a higher trim level, and TTV the stepless version with hydrostatic-mechanical transmission. The same water-cooled four-cylinder of 4,038 cm³ is fitted throughout, also used in other SDF ranges of this class.
Read on 3 more paragraphs
The register lists 8 versions with 60.2 to 80 kW, torque from 320 to 400 Nm and operating weights from 4,050 to 4,725 kg at gross weights from 6,100 to 7,500 kg; lengths range from 3,990 to 4,840 mm.
Agrofarm competes in the entry segment with the Case IH Farmall, New Holland T4 and Fendt Farmer/200 Vario, and is common chiefly in southern and eastern Europe and overseas, where simple mechanics and a low purchase price count for more than comfort equipment.
On used tractors, the condition of clutch and gearbox, leak-free hydraulics and PTO, rust on mudguards and cab, the condition of the front axle on the four-wheel-drive model and parts supply through the SDF dealer network, unproblematic for the 4.0-litre engine, are what count.
Sources: SpecCodex register, model data: Deutz-Fahr Agrofarm, Deutz-Fahr (Hersteller, SDF-Gruppe)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 109 hp (80 kW)correct |
| Rated speed | 2,100 rpmcorrect |
| Torque | 400 Nmcorrect |
| Cylinders | 4correct |
| Displacement | 4,038 cm³correct |
| Bore | 101 mmcorrect |
| Stroke | 126 mmcorrect |
| Compression ratio | 18correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,990 mmcorrect |
|---|---|
| Width | 2,160 mmcorrect |
| Height | 2,638 mmcorrect |
| Wheelbase | 2,340 mmcorrect |
| Ground clearance | 490 mmcorrect |
| Unladen weight | 4,100 kgcorrect |
| Gross vehicle weight | 7,200 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 20V / 20Rcorrect |
| Front tyres | 420/70 R 24correct |
| Rear tyres | 480/70 R 34correct |
| Top speed | 40 km/hcorrect |
Working data
| Fuel tank capacity | 160 lcorrect |
|---|
Other data
| Linkage category | Cat IIcorrect |
|---|---|
| PTO speed | 1,000 rpmcorrect |
Where this model stands
Power-to-weight ratio: 19.5 kW/t (80 kW / 4.1 t)
Power class: Large (100–180 hp)
Stronger than 70% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr Agrofarm 430 have?
The Deutz-Fahr Agrofarm 430 delivers 109 hp.
How much does the Deutz-Fahr Agrofarm 430 weigh?
The unladen weight is 4,100 kg.
What is the gross vehicle weight of the Deutz-Fahr Agrofarm 430?
7,200 kg.
What engine does the Deutz-Fahr Agrofarm 430 have?
4 cylinders, 4,038 cm³ displacement, Diesel.
How fast does the Deutz-Fahr Agrofarm 430 go?
Top speed is 40 km/h.
What are the dimensions of the Deutz-Fahr Agrofarm 430?
3,990 mm × 2,160 mm × 2,638 mm.
When was the Deutz-Fahr Agrofarm 430 built?
Production years: 2008.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
