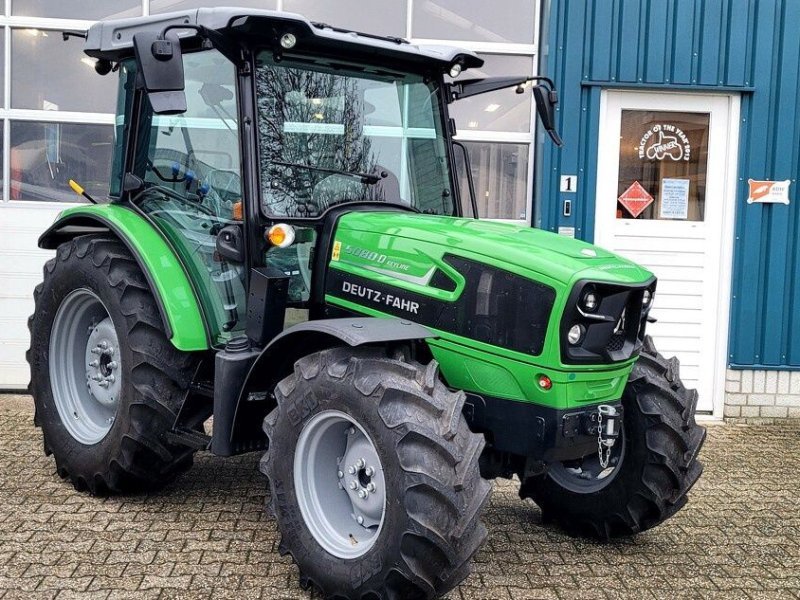

Deutz-Fahr 5080D
Built: 2014 · Series: 5D
More machines from model year 2014
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Deutz-Fahr 5D – 5080D and 5090.4D: mid-class tractors from Lauingen with 75 to 88 hp, three- and four-cylinder engines from 3,000 to 3,849 cc and 3,200 to 3,300 kg
The D-series was Deutz-Fahr's mid-class range and, like the rest of the group's line-up, was built at the Lauingen an der Donau plant. The 5080D and 5090.4D designations follow the Deutz-Fahr scheme: the number after the D marks the approximate horsepower class, while the .4 suffix on the 5090.4D indicates a four-cylinder engine as against the three-cylinder unit in the 5080D.
Read on 3 more paragraphs
The register lists 2 variants with 75 to 88 hp from three- and four-cylinder engines of 3,000 to 3,849 cc displacement. Unladen weights fall between 3,200 and 3,300 kg, dimensions range from 3,997 to 4,257 mm in length, 1,982 to 2,005 mm in width and 2,485 to 2,590 mm in height.
The 5D range covered the mid-power segment through the 1990s and served as a versatile all-rounder for arable and grassland farms, competing directly with the mid-class models from Fendt, Massey Ferguson and Case IH. Switching between three- and four-cylinder engines within the same range allowed fine steps between power classes.
When buying used, check the clutch and gearbox synchro rings, as this range was often worked hard with a front loader in practice. Inspect the engine block for oil seepage at the head gaskets and confirm the hydraulic pump delivers adequate pressure. Rust tends to appear at the wings and footsteps first; parts are well supplied through the Deutz-Fahr network.
Sources: SpecCodex register, model data: Deutz-Fahr 5D, Deutz-Fahr (SAME Deutz-Fahr Group, Hersteller)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 75 hpcorrect |
| Power | 75 hpcorrect |
| Cylinders | 3correct |
| Displacement | 3,000 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,997 mmcorrect |
|---|---|
| Width | 1,982 mmcorrect |
| Height | 2,590 mmcorrect |
| Wheelbase | 2,100 mmcorrect |
| Unladen weight | 3,200 kgcorrect |
Drivetrain and chassis
| Gearbox | 30/15, 3-stufiges powershift transmission transmission: 45/45correct |
|---|---|
| Front tyres | 405/70 R20correct |
| Rear tyres | 480/70 R30correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 17.2 kW/t (55 kW / 3.2 t)
Power class: Universal (40–100 hp)
Stronger than 52% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Deutz-Fahr 5080D have?
The Deutz-Fahr 5080D delivers 75 hp.
How much does the Deutz-Fahr 5080D weigh?
The unladen weight is 3,200 kg.
What engine does the Deutz-Fahr 5080D have?
3 cylinders, 3,000 cm³ displacement, Diesel.
How fast does the Deutz-Fahr 5080D go?
Top speed is 40 km/h.
What are the dimensions of the Deutz-Fahr 5080D?
3,997 mm × 1,982 mm × 2,590 mm.
When was the Deutz-Fahr 5080D built?
Production years: 2014.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
